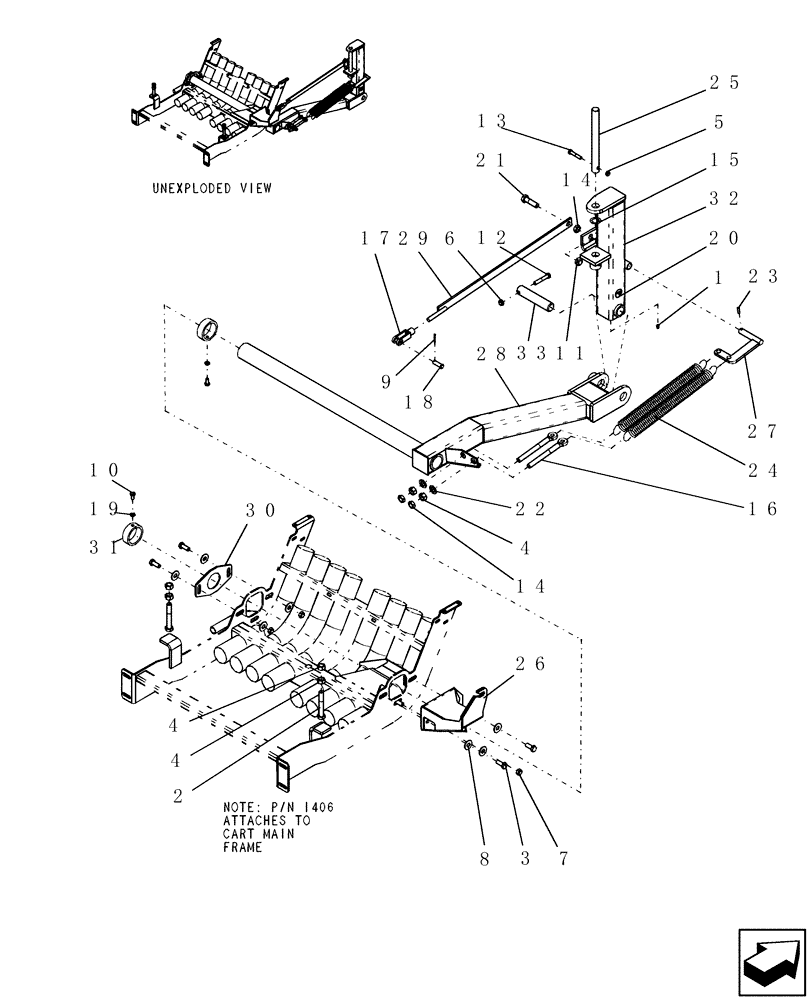

Запчасти Case IH ADX3260 (L.10.F[27]) - ADX3260 MANIFOLD LIFT ARM - TBT L - Field Processing

1

88775

LUBE NIPPLE,1/4"-28

1шт.

2

86977740

BOLT,Hex, 5/8" - 11 x 4", Gr 5

2шт.

3

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

5шт.

4

280374

NUT,Hex, 5/8" - 11, Gr 5

6шт.

5

88902

NUT,3/8"-16

1шт.

6

280980

NUT,7/16"-14, GC

1шт.

7

86992215

LOCK NUT,1/2"-13, GC

5шт.

8

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

10шт.

9

80755

COTTER PIN,1/8" OD x 1" L

1шт.

10

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

2шт.

11

85700693

NUT,5/8" - 11, Gr C

1шт.

12

88604

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

1шт.

13

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

14

86632556

JAM NUT,Jam, 5/8"-11, G5

3шт.

15

86624168

WASHER,1.03" ID x 1.5" OD x 0.03" Thk

1шт.

16

4269

EYEBOLT

5/8"-11x 7 3/8"

2шт.

17

5216

CLEVIS

yoke 1/2" Thread - 5/8" W x 1 7/8" Throat

1шт.

18

127-220

CLEVIS PIN,1/2" x 1 1/2"

1шт.

19

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

20

6630

DECAL

grease 100 hours

1шт.

21

88556

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 5

1шт.

22

87325968

WASHER,0.76" ID x 1.25" OD x 0.14" Thk

3/4" id x 1 1/4" 10ga

2шт.

23

438-11616

LOCK PIN,1/4" x 1", Slotted

1шт.

23

438-11616

LOCK PIN,1/4" x 1", Slotted

1шт.

24

87505303

TENSION SPRING

5/16" wire 1 5/64" od x 18" long

2шт.

25

GI-589

PIN

manifold

1шт.

26

GI-610

BRACKET

parallel link

1шт.

27

GI-817

BRACKET

spring pivot

1шт.

28

GI-956

LIFT ARM

manifold - tow between

1шт.

29

GI-958

LINK

parallel, manifold - tow between

1шт.

30

GI-970

PIVOT PLATE

manifold adjust

1шт.

31

GI-973

COLLAR

adjustment

2шт.

32

GI-974

LIFT ARM

pivot

1шт.

33

GL-610

HITCH PIN

rear

1шт.
