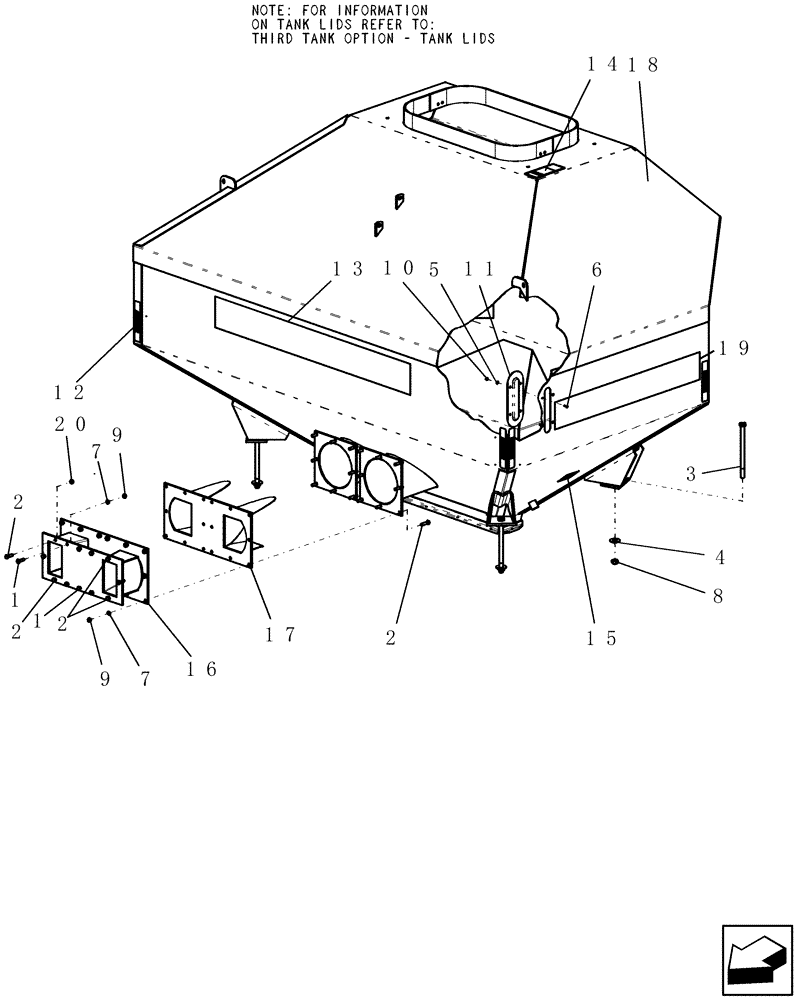

Запчасти Case IH ADX3260 (L.10.B[06]) - ADX3260 TANK ASSEMBLY L - Field Processing

1

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

8шт.

2

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

20шт.

3

413-10152

BOLT,Hex, 5/8" - 11 x 9-1/2", Gr 5

4шт.

4

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

4шт.

5

280299

WASHER,0.19" ID x 0.44" OD x 0.05" Thk

4шт.

6

412750A1

SCREW,Sl, #8 - 32 x 3/4"

mch #8-32 x 3/4" ph sq-slt

4шт.

7

80680

LOCK WASHER,3/8 0.381 CST ZND

24шт.

8

85700693

NUT,5/8" - 11, Gr C

4шт.

9

9628503

NUT,3/8"-16, G5

24шт.

10

231-14408

NUT,#8-32, GB

4шт.

11

5186

SIGHTGLASS

lexan view, Years: -01-JUN-02

1шт.

12

311864A1

REFLECTOR

Retroreflective Amber 1.375" x 7.25"

6шт.

13

192849A2

DECAL

case ih - 8mm logo

1шт.

14

51200080

WARNING DECAL

No Step

1шт.

15

GL-700.17

DECAL

tank 3

1шт.

16

GI-341

PLATE

inlet plenum, dual fan

1шт.

17

GI-342

PLATE

transition insert, dual fan

1шт.

18

GI-620FR

TANK

80 bushel

1шт.

19

412953A1

DECAL

ADX3260 strip LH front

1шт.

19

412951A1

DECAL

ADX3260 strip RH front

1шт.

Not Shown

1шт.

20

88902

NUT,3/8"-16

4шт.
