Запчасти Case IH ADX3260 (F.10.D[14]) - HITCH EXTENSION OPTION - TBT F - Frame Positioning

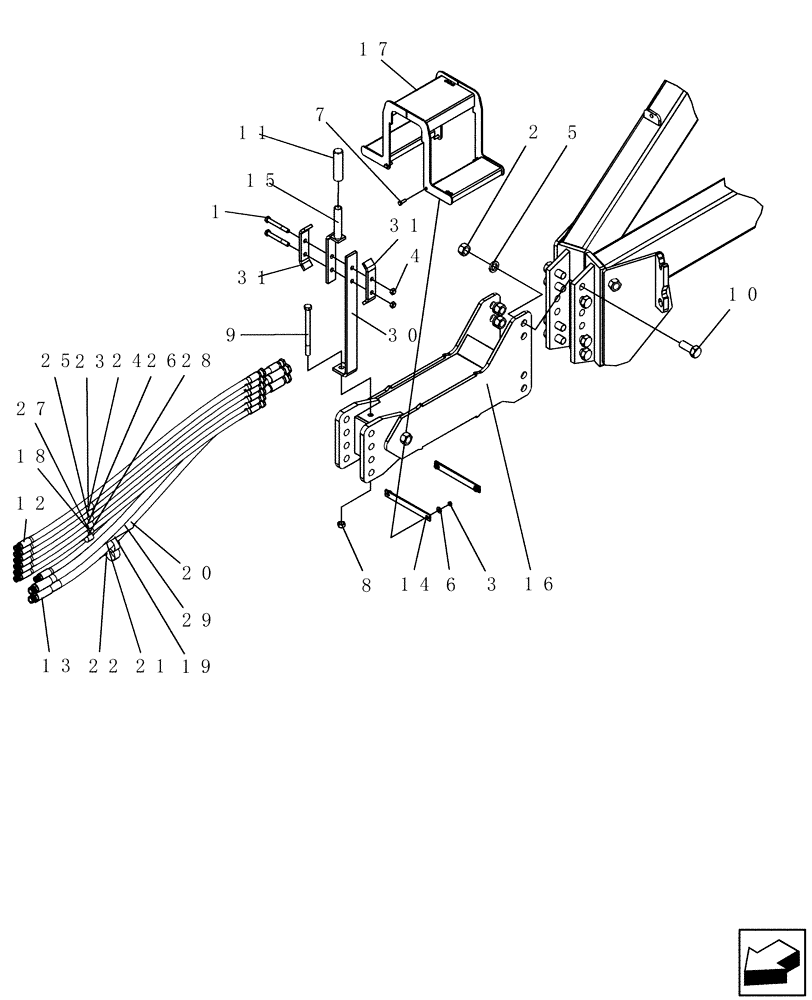

Схема запчастей Case IH ADX3260 - (F.10.D[14]) - HITCH EXTENSION OPTION - TBT F - Frame Positioning
20
28
10
22
15
1
30
17
5
21
16
13
19
7
2
25
4
12
18
3
24
14
29
31
31
9
8
27
6
26
23
11

Артикул

Название

Примечание

Количество

1

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

2

9849633

NUT,1"-8, G5

8шт.

3

281010

LOCK NUT,7/8"-14, GC

4шт.

4

86992215

LOCK NUT,1/2"-13, GC

2шт.

5

87342

LOCK WASHER,25.48mm ID x 42.06mm OD x 6.35mm Thk

8шт.

6

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

4шт.

7

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

4шт.

8

85700693

NUT,5/8" - 11, Gr C

2шт.

9

280743

BOLT,Hex, 5/8" - 11 x 8", Gr 5

1шт.

10

16505

BOLT,Hex, 1" - 8 x 2 1/2", Gr 5, Full Thd

8шт.

11

3740

HANDLE

plastic - 1" id

1шт.

12

51200096

HYDRAULIC HOSE,0.50" ID x 48.00", SAE J517, SAE J516, SAE 100R17, ASTM B633 Class 2 Type 2

1/2" x 48" fl, 1/2" mpt x 1/2" fpt

7шт.

13

51200097

HYDRAULIC HOSE

3/4" x 48" fl, 3/4" mpt x 3/4" fpt

2шт.

14

GI-622

EXTENSION

strap, hitch

2шт.

15

GI-623

HANDLE

hitch extension

1шт.

16

GI-627

EXTENSION

hitch, tow between

1шт.

17

GI-628

TRAY

hose, step

1шт.

18

GL-372

COVER

hydraulic hose label - 1"

6шт.

19

GL-374

COVER

hydraulic hose label - 2"

2шт.

20

GL-375

COVER

label 1" case drain hyd

1шт.

21

GL-700.32

DECAL

fan pressure

1шт.

22

GL-700.33

DECAL

fan return

1шт.

23

GL-700.36

DECAL

depth pressure

1шт.

24

GL-700.37

DECAL

depth return

1шт.

25

GL-700.38

DECAL

wing lift pressure

1шт.

26

GL-700.39

DECAL

wing lift return

1шт.

27

GL-700.40

DECAL

auxiliary pressure

1шт.

28

GL-700.41

DECAL

auxiliary return

1шт.

29

GL-700.42

DECAL

drain

1шт.

30

GD-906

HOLDER

hydraulic hose

1шт.

31

GD-907

CLAMP

hydraulic hose

2шт.

Выбрано товаров: 31
