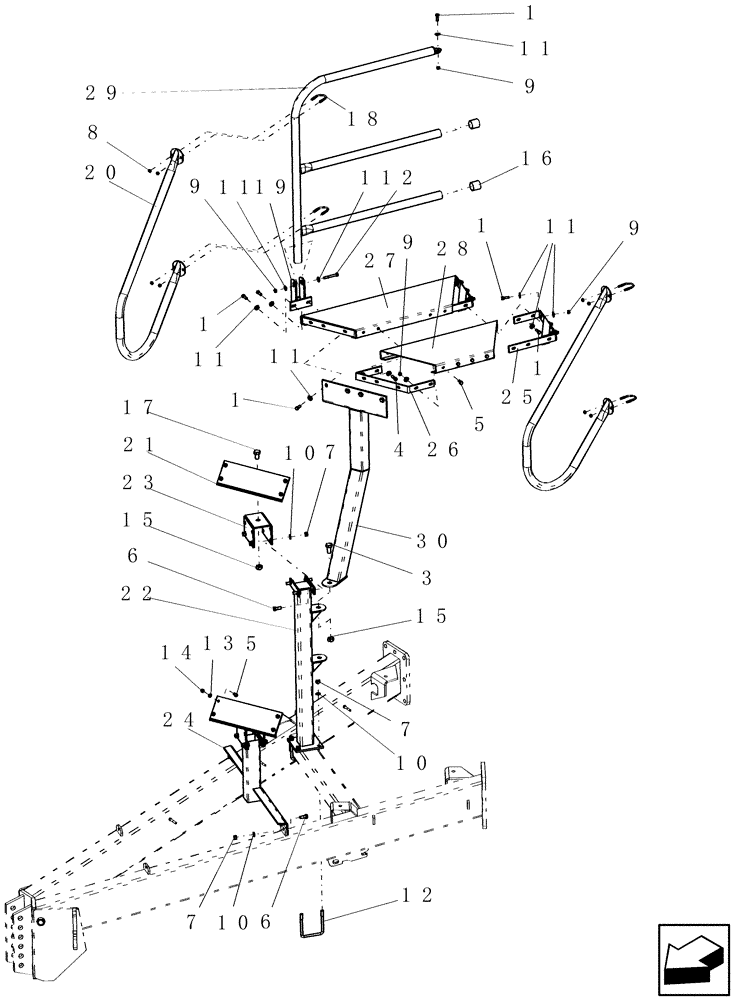

Запчасти Case IH ADX3260 (E.30.A[04]) - FRONT STAIRWAY PLATFORM E - Body and Structure

1

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

14шт.

2

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

3

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

1шт.

4

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

5

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

16шт.

6

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

10шт.

7

280431

NUT,1/2"-13, G5

14шт.

8

281010

LOCK NUT,7/8"-14, GC

8шт.

9

88902

NUT,3/8"-16

25шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

14шт.

11

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

41шт.

12

412749A1

U-BOLT

us 1/2"-13 4 1/8" w 5 1/4" d G5 1 1/4" thread

2шт.

13

80680

LOCK WASHER,3/8 0.381 CST ZND

8шт.

14

9628503

NUT,3/8"-16, G5

8шт.

15

280375

NUT,3/4"-10, GC

3шт.

16

3419

CAP

vinyl 1 5/8" x 1 1/2"

2шт.

17

88691

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 5, Full Thd

2шт.

18

6652

U-BOLT

ur 5/16"-18 x 1 3/4" w 2 3/4" d 1" thread

4шт.

19

GI-801

BRACKET

mount, railing

1шт.

20

GI-830

HANDRAIL

access

2шт.

21

GI-864

MOUNTING PLATE

front access

2шт.

22

GI-865

ARM

main support front access

1шт.

23

GI-866

BRACKET

front access adjustment

2шт.

24

GI-867

BRACKET

front access mount

1шт.

25

GI-880

CAP

end, landing extension

2шт.

26

GI-881

CAP

end, landing

2шт.

27

GI-882

PLATFORM

front access - long

1шт.

28

GI-883

PLATFORM

front access - short

1шт.

29

GI-884

RAIL ASSY.

outer - front access

1шт.

30

GI-887

SUPPORT

post, front landing

1шт.
