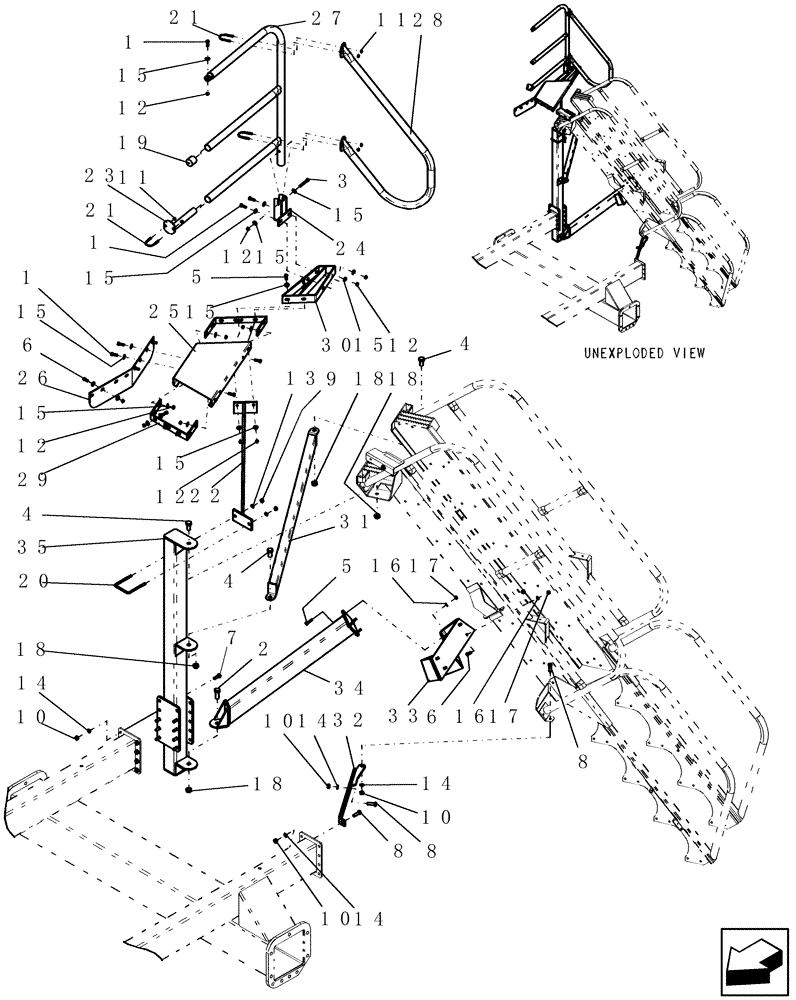

Запчасти Case IH ADX3260 (E.30.A[03]) - REAR STAIRWAY PLATFORM E - Body and Structure

1

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

14шт.

2

88557

BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd

1шт.

3

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

4

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

3шт.

5

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

6шт.

6

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

7

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

8шт.

8

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

3шт.

9

280717

NUT,7/16"-14, G5

2шт.

10

280431

NUT,1/2"-13, G5

11шт.

11

280736

NUT,5/16"-18, GC

6шт.

12

88902

NUT,3/8"-16

19шт.

13

81547

LOCK WASHER,7/16"

2шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

11шт.

15

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

32шт.

16

80680

LOCK WASHER,3/8 0.381 CST ZND

8шт.

17

9628503

NUT,3/8"-16, G5

8шт.

18

280375

NUT,3/4"-10, GC

4шт.

19

3419

CAP

vinyl 1 5/8" x 1 1/2"

1шт.

20

5089

U-BOLT

us 7/16"-14 4 1/8" w 5 3/8" d GR2

1шт.

21

6652

U-BOLT

ur 5/16"-18 x 1 3/4" w 2 3/4" d 1" thread

3шт.

22

GI-239

SUPPORT

rear access

1шт.

23

GI-706

SUPPORT

landing rail

1шт.

24

GI-801

BRACKET

mount, railing

1шт.

25

GI-819

GRATING

staircase

1шт.

26

GI-820

GUSSET

bolt-on corner

1шт.

27

GI-829

RAIL ASSY.

access

1шт.

28

GI-830

HANDRAIL

access

1шт.

29

GI-831

CAP

end, staircase grating

2шт.

30

GI-832

SUPPORT

end stairway

1шт.

31

GI-857

SUPPORT

rear access

1шт.

32

GI-859

BRACKET

stairway pivot stop

1шт.

33

GI-860

BRACKET

transition arm to rear access

1шт.

34

GI-862

SUPPORTING ARM

lower

1шт.

35

GI-863

BEAM

main support, rear access

1шт.
