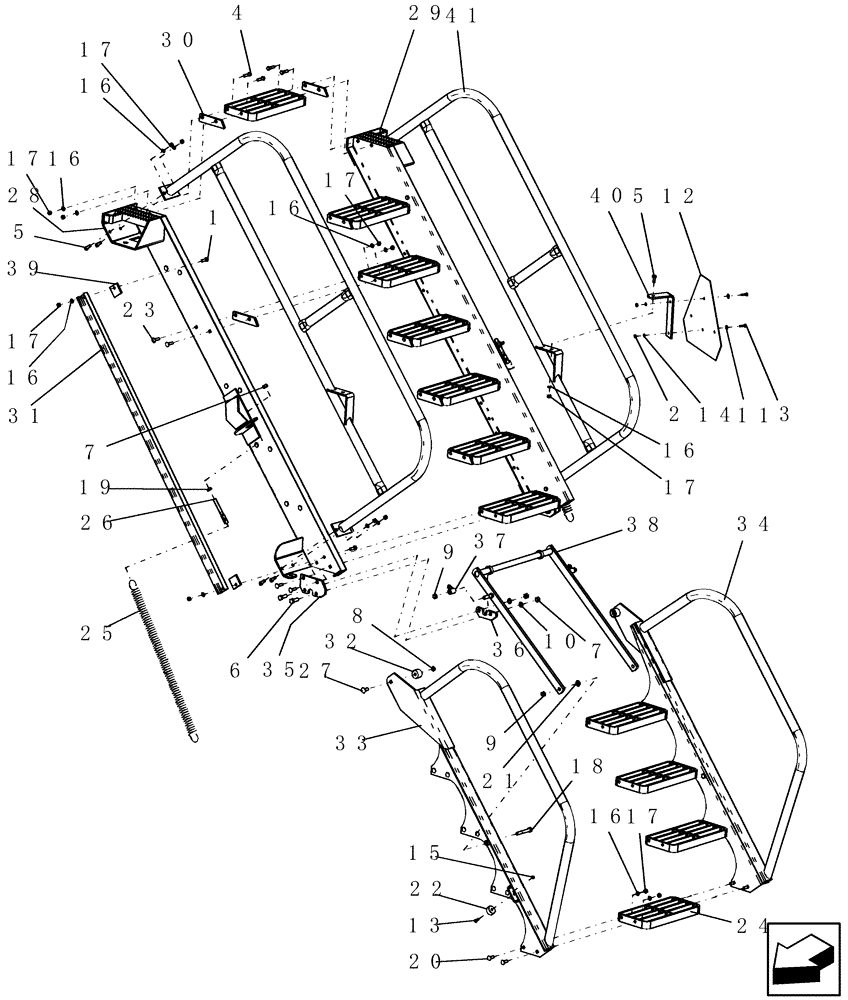

Запчасти Case IH ADX3260 (E.30.A[02]) - STAIRWAY E - Body and Structure

1

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

2

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

3

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

4

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

5

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

9шт.

6

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

7

280431

NUT,1/2"-13, G5

6шт.

8

280980

NUT,7/16"-14, GC

2шт.

9

86992215

LOCK NUT,1/2"-13, GC

4шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

11

80694

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.

12

86547710

EMBLEM

KIT SMV

1шт.

13

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

14

80682

LOCK WASHER,1/4"

2шт.

15

280129

NUT,1/4"-20

2шт.

16

80680

LOCK WASHER,3/8 0.381 CST ZND

57шт.

17

9628503

NUT,3/8"-16, G5

57шт.

18

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

2шт.

19

86632558

JAM NUT,Jam, 1/2"-13, G5

2шт.

20

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

16шт.

21

5868

WASHER,0.5" ID x 1" OD x 0.06" Thk

1/2" id 1" 16ga

2шт.

22

51200147

FOOT

rubber, 1 1/2" od x 1/4" id x 3/4"

2шт.

23

280552

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

24шт.

24

425087A1

STEP

Cast Aluminum 15 5/8" x 7" x 1 3/8"

11шт.

25

22609\C

TENSION SPRING

9/32" wire x 1 57/64" od 19 1/4" body 22-inside hooks 67 -coils

2шт.

26

22668

SPECIAL BOLT

spade 1/2"-13 x 4 1/4"

2шт.

27

22682

CARRIAGE BOLT

7/16"-14 x 1 1/4", G5

2шт.

28

GI-840

SIDE PANEL

stairway upper LH

1шт.

29

GI-841

SIDE PANEL

stairway upper RH

1шт.

30

GI-842

SPACER

stairway step

12шт.

31

GI-843

GUIDE

track, stairway

2шт.

32

GI-844

ROLLER

nylon, stairway guide

2шт.

33

GI-845

SIDE PANEL

lower stairway LH

1шт.

34

GI-846

SIDE PANEL

lower stairway RH

1шт.

35

GI-847

JOURNAL

stairway pivot, top

2шт.

36

GI-848

JOURNAL

stairway pivot, bottom

2шт.

37

GI-849

BRACKET, PIVOT

PIVOT BRACKET spring assist

2шт.

38

GI-850

ROCKSHAFT

stairway

1шт.

39

GI-851

SPACER

stairway track

4шт.

40

GI-858

BRACKET

smv sign

1шт.

41

GI-861

HANDRAIL

upper stairway

2шт.
