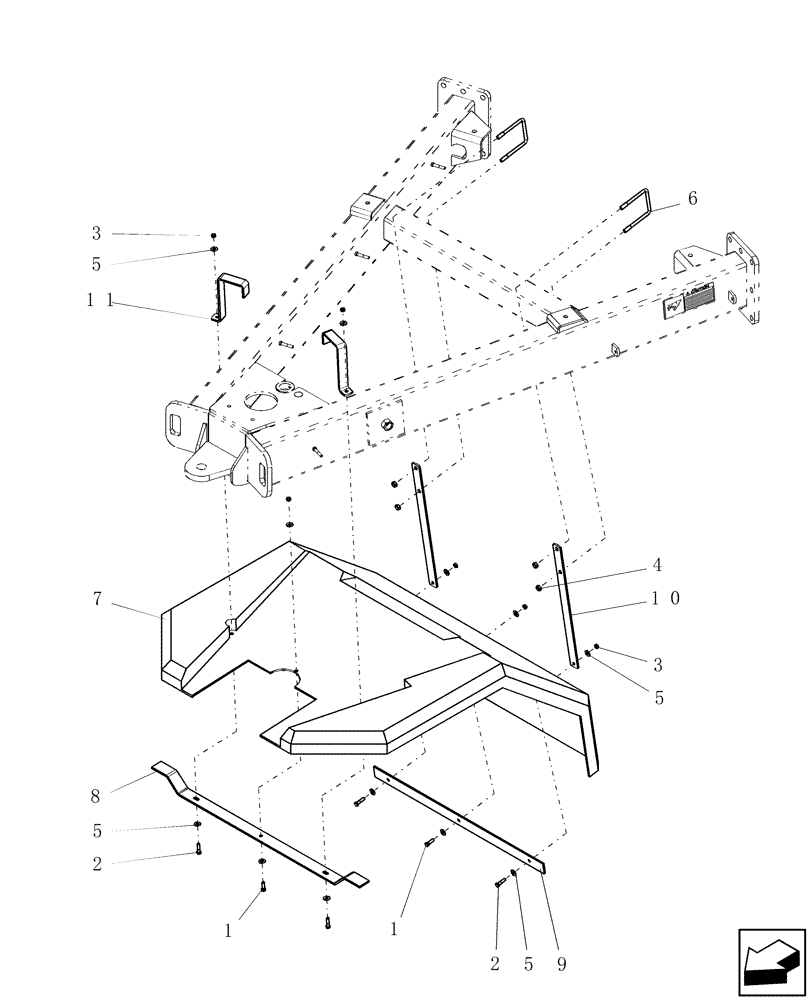

Запчасти Case IH ADX3260 (E.30.A[01]) - FRONT FENDER OPTION E - Body and Structure

1

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

2

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

3

88902

NUT,3/8"-16

6шт.

4

86992215

LOCK NUT,1/2"-13, GC

4шт.

5

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

12шт.

6

412749A1

U-BOLT

us 1/2"-13 4 1/8" w 5 1/4" d G5 1 1/4" thread

2шт.

7

22506

FENDER

front

1шт.

8

GH-690

SUPPORT

fender

1шт.

9

GH-691

SUPPORT

flat, fender

1шт.

10

GH-692

HANGER

mount, rear - fender

2шт.

11

GH-693

HANGER

mount, front - fender

2шт.
