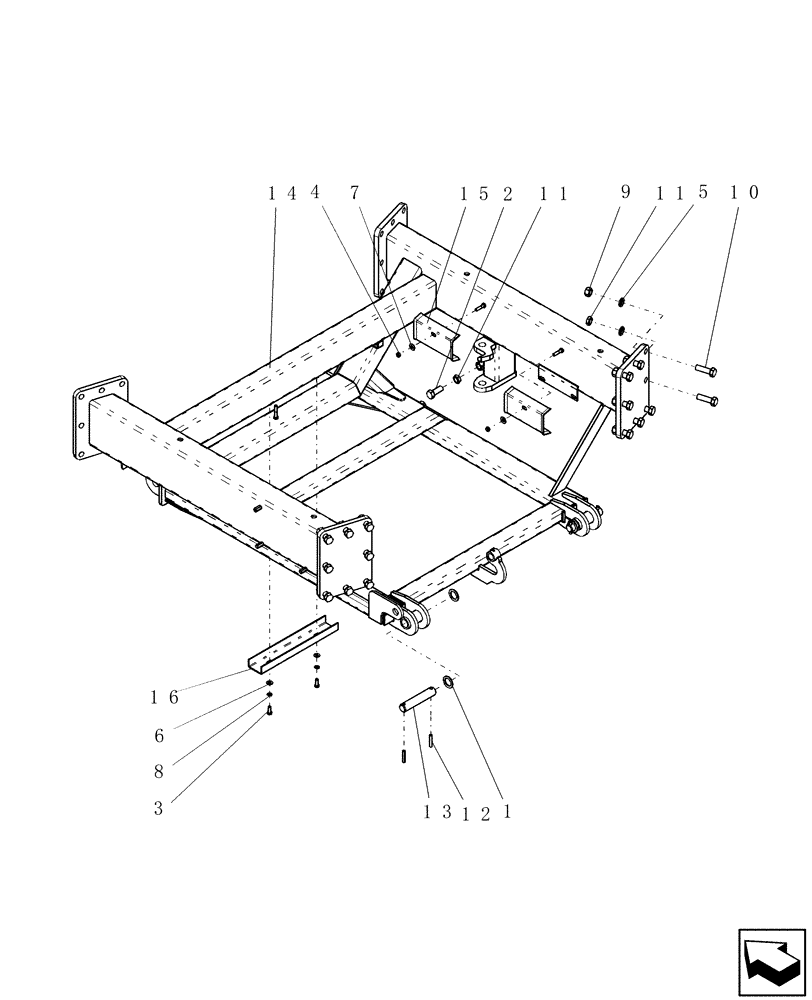

Запчасти Case IH ADX3260 (E.10.B[04]) - ADX3260 FRAME INSERT E - Body and Structure

1

86632583

WASHER,1.28" ID x 2" OD x 0.12" Thk

4шт.

2

88557

BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd

1шт.

3

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

4

88902

NUT,3/8"-16

2шт.

5

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

16шт.

6

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

7

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

8

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

9

9823966

NUT,3/4"-16, G8

14шт.

10

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

16шт.

11

86632557

JAM NUT,Jam, 3/4"-10, G5

12шт.

12

86624061

LOCK PIN,9.53mm OD x 50.8mm L, Slotted

4шт.

13

GH-125

HITCH PIN,31.75mm OD x 163.51mm L

2шт.

14

GI-169

FRAME

mount, 3rd tank - 40 series

1шт.

15

GI-307

SHIELD

cable - rear

2шт.

16

GI-369

TRAY

hose, front frame

1шт.
