Запчасти Case IH ADX2230 (B.90.A[02]) - PTO OPTION - RESERVOIR AND FILTER MOUNT B - Power Production

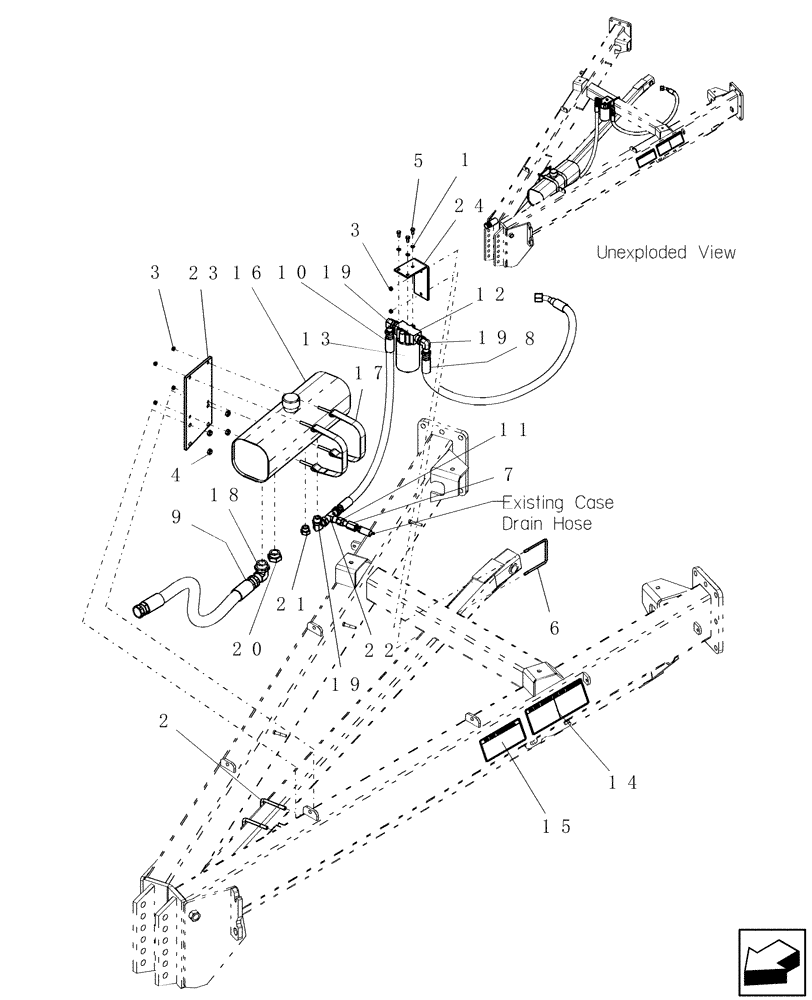

Схема запчастей Case IH ADX2230 - (B.90.A[02]) - PTO OPTION - RESERVOIR AND FILTER MOUNT B - Power Production
24
9
10
4
19
12
21
23
20
7
3
18
11
16
1
2
8
6
17
19
14
13
3
15
19
22
5

Артикул

Название

Примечание

Количество

1

80681

LOCK WASHER,5/16"

3шт.

2

1404

U-BOLT

us 1/4" x 3 1/8" w x 4 1/4" d 1 1/4" thread gr2

2шт.

3

281010

LOCK NUT,7/8"-14, GC

6шт.

4

86992215

LOCK NUT,1/2"-13, GC

4шт.

5

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

6

419990A1

U-BOLT

us 5/16" x 4 1/8" w x 4 3/4" d 3/4" thread

1шт.

7

217-1103

HYD CONNECTOR,1/2" - 14 NPT x 1/2" - 14 NPT

1шт.

8

51200875

HYDRAULIC HOSE

3/4" x 46" fl, 3/4" fjic x 3/4" fjic

1шт.

9

51200883

HYDRAULIC HOSE,1.25" ID x 50.00", SAE 100R4, SAE 100R1, ASTM B633 Class 2 Type 2

1 1/4" x 50" fl, 1 1/4" fjic x 1 1/4" fjic

1шт.

10

51200884

HYDRAULIC HOSE,0.75" ID x 36.00", SAE J517, SAE J516, SAE 100R17, ASTM B633 Class 2 Type 2

3/4" x 36" fl, 3/4" fjic x 3/4" fjic

1шт.

11

87013350

HYD CONNECTOR,37 Degree, Sw, 1 1/16"-12 Fem x 1/2" NPTF Male

1шт.

12

87404509

FILTER ASSY

includes head

1шт.

13

87404510

FILTER

spin on element

1шт.

14

51200887

DECAL

PTO pump operation / maintenance

1шт.

15

51200888

DECAL

pto pump troubleshooting

1шт.

16

115872A1

RESERVOIR, HYDRAULIC

4.5 us gal

1шт.

16

87439695

RESERVOIR, HYDRAULIC

4.5 us gal

1шт.

16

129575A1

CAP

breather with dipstick

1шт.

Not Shown

1шт.

16

87435908

SCREEN

reservoir

1шт.

Not Shown

1шт.

17

116093A1

STRAP

oil reservoir tank

2шт.

18

84530

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, O-Ring

1шт.

19

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

3шт.

Includes two of 6494 and two of 6492

1шт.

20

86624101

PLUG,Hex Hd, 1 5/8"-12 ORB

1шт.

21

163410

PLUG,1-1/16" - 12 ORB

1шт.

22

265978

TEE,1-1/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

23

GK-230

BRACKET

mount, reservoir

1шт.

24

GK-231

BRACKET

oil filter

1шт.

Выбрано товаров: 30
