Запчасти Case IH ADX2230 (A.50.A[55]) - TASK CONTROLLER GPS CABLE (PINS) A - Distribution Systems

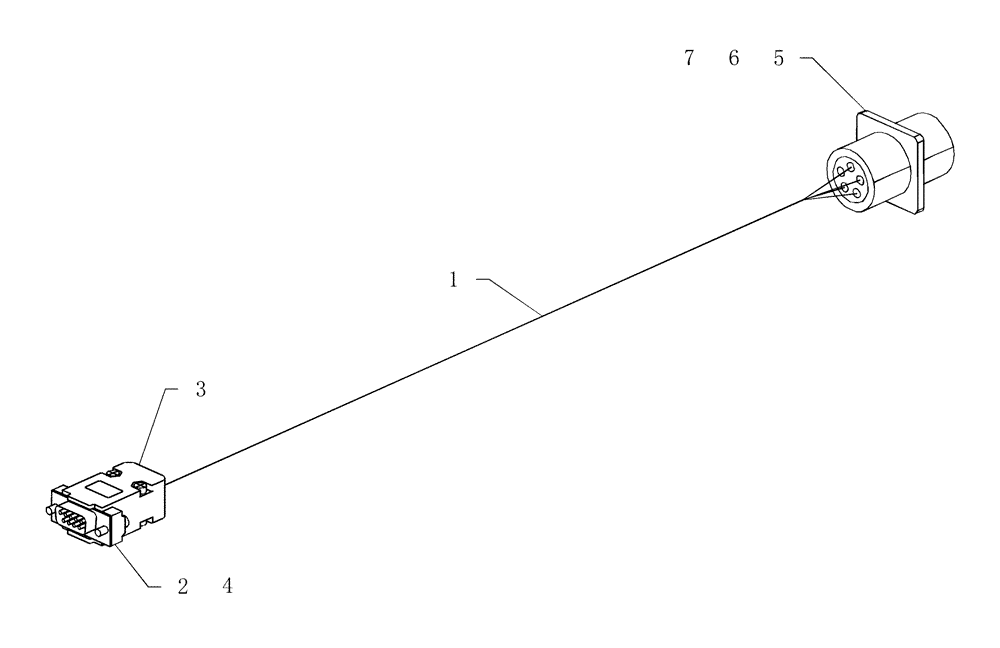

Схема запчастей Case IH ADX2230 - (A.50.A[55]) - TASK CONTROLLER GPS CABLE (PINS) A - Distribution Systems
7
3
2
5
6
4
1

Артикул

Название

Примечание

Количество

1

15213

HARNESS

gps trimble 2.0 m

1шт.

2

425447A1

PLUG

cab, electrical connector, Metal, D-Type 9C

1шт.

3

425445A1

ELEC CONNECTOR

cable clamp d-type 1

1шт.

4

425446A1

ELEC. TERMINAL PIN,20 - 24 SAE

20-24awg

2шт.

5

225222C1

ELEC CONNECTOR,Male, 5 Pin

plastic 5c receptacle fl

1шт.

6

225348C1

ELEC. TERMINAL PIN,Male, 0.75 - 2.00 mm2

pin 16-18awg

2шт.

7

84068583

PLUG,12 - 16 Ga, White

connector cavity white plastic

3шт.

Выбрано товаров: 7
