Запчасти Case IH ADX2230 (A.50.A[54]) - TASK CONTROLLER SCOUTING CABLE A - Distribution Systems

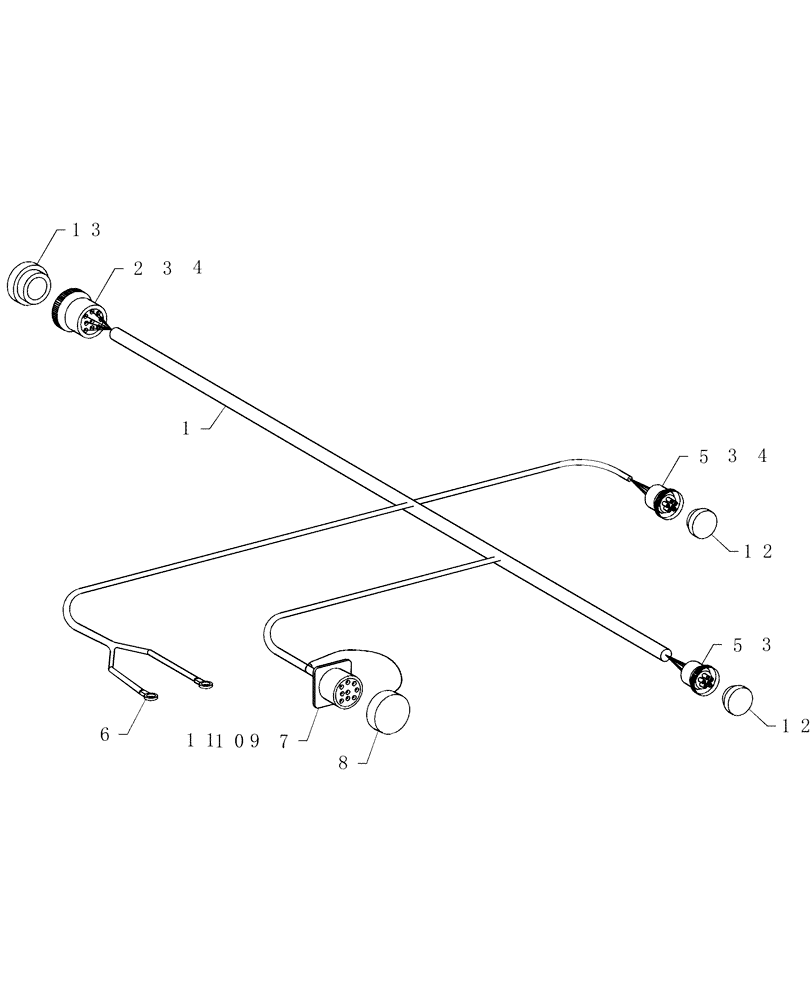

Схема запчастей Case IH ADX2230 - (A.50.A[54]) - TASK CONTROLLER SCOUTING CABLE A - Distribution Systems
4
5
12
6
2
9
3
3
13
11
10
7
4
8
1
5
3
12

Артикул

Название

Примечание

Количество

1

15404

HARNESS

gps scouting

1шт.

2

291658A1

ELEC CONNECTOR,Female, 9 Pin

plastic 9c plug

1шт.

3

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

16-18awg

21шт.

4

225404C1

POWER SOCKET,Nickel, 1.0 - 2.0mm

socket 14-16awg

4шт.

5

425050A1

ELEC CONNECTOR,Female, 6 Pin

plastic 6c plug

2шт.

6

51200081

TERMINAL CONNECTOR,14 - 16 SAE

ring 14-16awg 3/8 std

2шт.

7

FLX14180

ELEC CONNECTOR

plastic receptacle 9c

1шт.

8

84074633

COVER

9 cond plg Deutsch

1шт.

9

225348C1

ELEC. TERMINAL PIN,Male, 0.75 - 2.00 mm2

pin 16-18awg

5шт.

10

225406C1

ELEC. TERMINAL PIN,Male, 1 - 2 mm2

pin 14-16awg

2шт.

11

84068583

PLUG,12 - 16 Ga, White

connector cavity white plastic

2шт.

12

14045

DUST CAP

6 cond rcp Deutsch

3шт.

13

87508175

dust 9 cond rcp Deutsch

1шт.

Выбрано товаров: 13
