Запчасти Case IH ADX2230 (A.50.A[49]) - TASK CONTROLLER HARNESS A - Distribution Systems

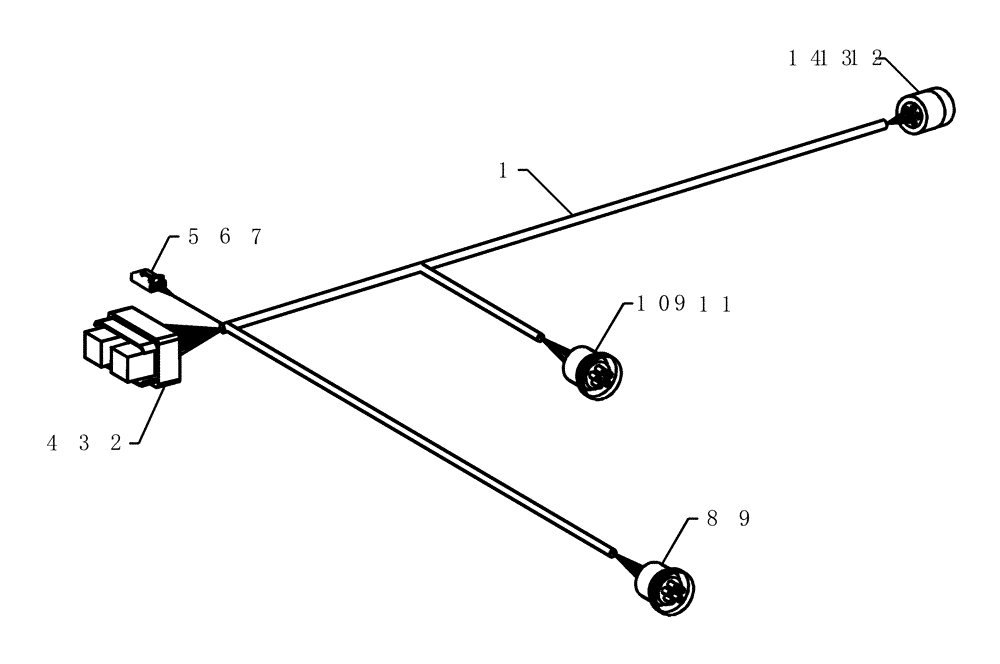

Схема запчастей Case IH ADX2230 - (A.50.A[49]) - TASK CONTROLLER HARNESS A - Distribution Systems
4
7
8
12
14
13
6
9
5
2
9
10
1
11
3

Артикул

Название

Примечание

Количество

1

51200038

HARNESS

task controller 2.0 m

1шт.

2

14628

ELEC CONNECTOR,18 Pin

18c plug akey

1шт.

3

87270687

ELEC. TERMINAL PIN,Female, 0.75 - 1.5 mm2

socket 16-20awg

12шт.

4

14999

ELEC CONNECTOR

plug, cavity, cinch

6шт.

5

87696551

CONTACT HOUSING,Female, 3 Pole

cab plastic plug 3c

1шт.

6

51200009

STOP LOCK

3c plug

1шт.

7

223952A1

ELEC. TERMINAL PIN,Nickel, 0.8 - 1.0mm

socket 18-20awg

3шт.

8

225224C1

ELEC CONNECTOR,Female, 5 Pin

plastic 5c plug

1шт.

9

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

16-18awg

9шт.

10

425050A1

ELEC CONNECTOR,Female, 6 Pin

plastic 6c plug

1шт.

11

225404C1

POWER SOCKET,Nickel, 1.0 - 2.0mm

socket 14-16awg

2шт.

12

425059A1

ELEC CONNECTOR,6 Pin

plastic receptacle 6c

1шт.

13

225406C1

ELEC. TERMINAL PIN,Male, 1 - 2 mm2

pin 14-16awg

2шт.

14

225348C1

ELEC. TERMINAL PIN,Male, 0.75 - 2.00 mm2

pin 16-18awg

44шт.

Выбрано товаров: 14
