Запчасти Case IH ADX2230 (A.50.A[22]) - AIR CART HITCH HARNESS - TBT A - Distribution Systems

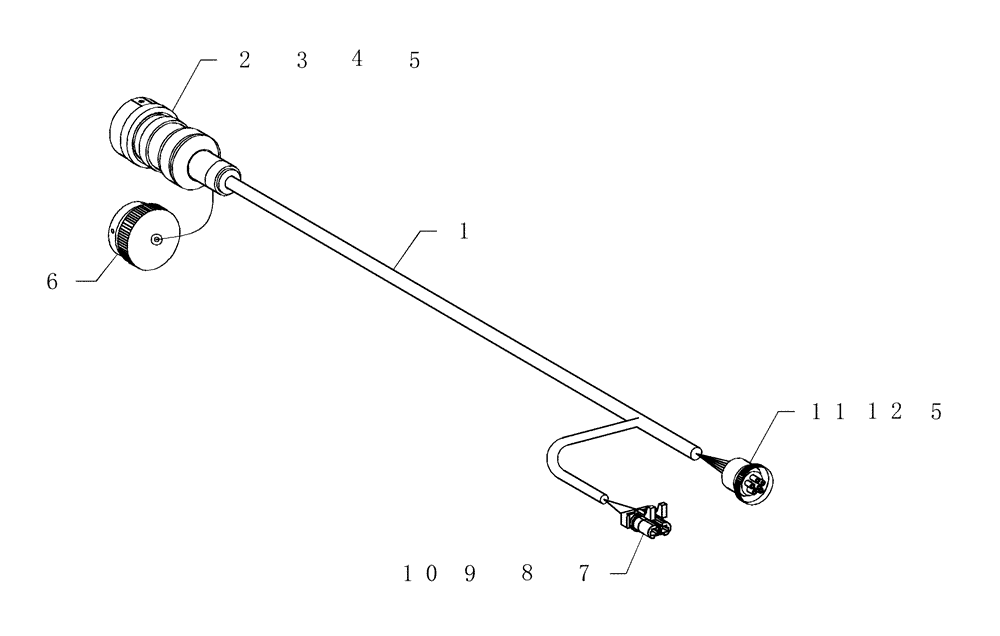

Схема запчастей Case IH ADX2230 - (A.50.A[22]) - AIR CART HITCH HARNESS - TBT A - Distribution Systems
12
1
9
5
2
8
7
6
10
3
4
11
5

Артикул

Название

Примечание

Количество

1

419972A1

HARNESS

hitch tow between

1шт.

2

279043A1

ELEC CONNECTOR,Female, 9 Pin

metal 9c plug

1шт.

3

425083A1

POWER SOCKET

contact socket 8-10 Deutsch

2шт.

4

900302

TERMINAL

12-14awg

2шт.

5

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

16-18awg

8шт.

6

788614

PROTECTING COVER,2" OD x 1.7" Long

dust 23 con rcp Deutsch

1шт.

7

87688710

MULTIPOLE CONNECTOR,Female, 2 Pole

cab plastic 2c plug

1шт.

8

225444C1

CONNECTOR, ELEC

CONNECTOR contact skt 12-10awg brs tin p

2шт.

9

419992A1

SEAL

connector ppl 4.5-3.6 mm

2шт.

10

14890

STOP LOCK

2c plug connector

1шт.

11

425050A1

ELEC CONNECTOR,Female, 6 Pin

plastic 6c plug

1шт.

12

225404C1

POWER SOCKET,Nickel, 1.0 - 2.0mm

socket 14-16awg

1шт.

Выбрано товаров: 12
