(A.50.A[07]) - ACTUATOR FEEDBACK EXTENSION

Запчасти Case IH ADX2230 (A.50.A[07]) - ACTUATOR FEEDBACK EXTENSION A - Distribution Systems

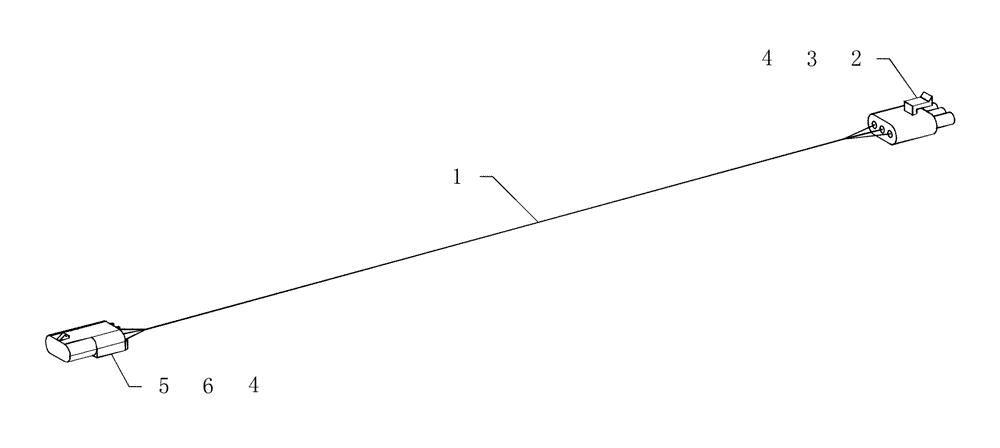

Схема запчастей Case IH ADX2230 - (A.50.A[07]) - ACTUATOR FEEDBACK EXTENSION A - Distribution Systems
4
4
5
2
3
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

425093A1

HARNESS

1.7 m 3c pkd 20awg

1шт.

2

87644909

WIRE CONNECTOR,Female, 3 Pins

plastic 3c plug

1шт.

3

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

socket 18-20awg

3шт.

4

441656A1

ELEC CONNECTOR

seal ppl 2.15-1.6mm

6шт.

5

245485C1

ELEC CONNECTOR,Male, 3 Pin

plastic 3c receptacle

1шт.

6

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

18-20awg

3шт.
