Запчасти Case IH ADX2230 (A.50.A[04]) - AIR CART HARNESS MECH/VR TBH A - Distribution Systems

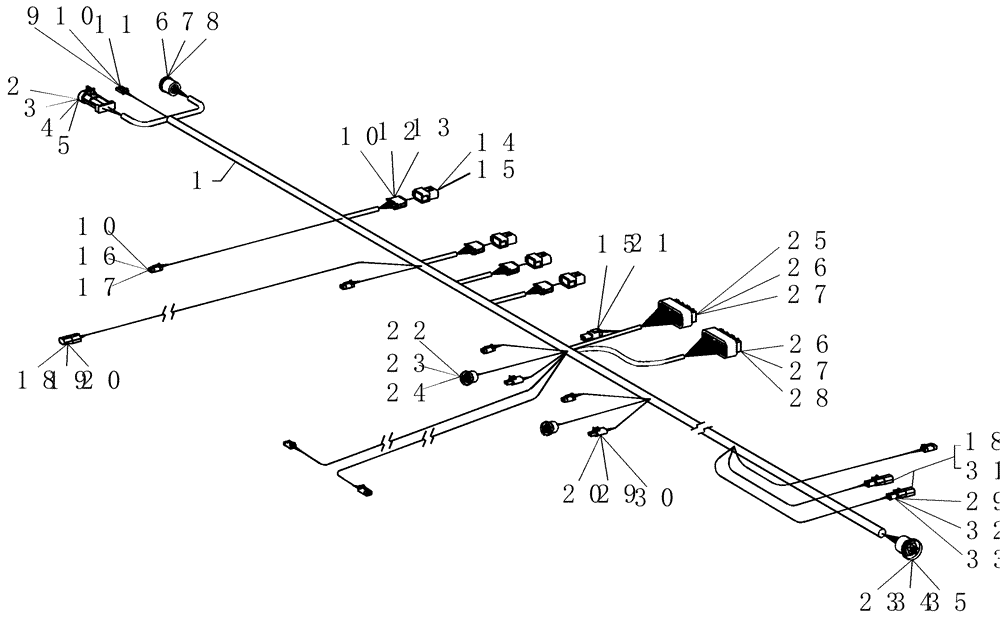

Схема запчастей Case IH ADX2230 - (A.50.A[04]) - AIR CART HARNESS MECH/VR TBH A - Distribution Systems
18
10
7
15
25
10
20
19
18
27
20
17
27
26
12
29
26
8
23
2
13
22
35
6
15
3
30
1
29
5
9
23
32
10
14
31
11
16
28
34
21
33
4
24

Артикул

Название

Примечание

Количество

1

419973A1

HARNESS

cart tow behind

1шт.

2

292549A1

CONNECTOR, ELEC

CONNECTOR plastic 2c receptacle

1шт.

3

225452C1

CONNECTOR, ELEC

CONNECTOR contact pin 12-10awg brs tin p

2шт.

4

419992A1

SEAL

connector ppl 4.5-3.6 mm

2шт.

5

14890

STOP LOCK

2c plug connector

1шт.

6

425059A1

ELEC CONNECTOR,6 Pin

plastic receptacle 6c

1шт.

7

225348C1

ELEC. TERMINAL PIN,Male, 0.75 - 2.00 mm2

pin 16-18awg

4шт.

8

225406C1

ELEC. TERMINAL PIN,Male, 1 - 2 mm2

pin 14-16awg

2шт.

9

222135A1

CONNECTOR, ELEC

CONNECTOR plastic 2c plug

1шт.

10

223952A1

ELEC. TERMINAL PIN,Nickel, 0.8 - 1.0mm

socket 18-20awg

74шт.

11

222846A1

STOP LOCK

2c plug connector

1шт.

12

87700156

CONTACT HOUSING,Female, 12 Pole

Deutsch 12 way dtm plug, grey

4шт.

13

223674A1

WEDGE

lock 12c plug

4шт.

14

223672A1

MULTIPOLE CONNECTOR,Male, 12 Pin

elec plastic 12c receptacle

4шт.

23

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

16-18awg

12шт.

15

225055C1

PLUG

connector 20awg

51шт.

16

87696551

CONTACT HOUSING,Female, 3 Pole

cab plastic plug 3c

8шт.

17

87705586

WEDGE

lock 3c plug

8шт.

18

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

plastic 2c receptacle

3шт.

19

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

18-20awg

2шт.

20

225124C1

SEAL,2 - 2.9 mm2

seal grn 2.8-2 omm

8шт.

21

87696545

CONTACT HOUSING,Male, 3 Pole

cab plastic rcp 3c

1шт.

22

225224C1

ELEC CONNECTOR,Female, 5 Pin

plastic 5c plug

2шт.

24

84068583

PLUG,12 - 16 Ga, White

connector cavity white plastic

2шт.

25

87268798

MULTIPOLE CONNECTOR,Female, 30 Pole

30c plug b key

1шт.

26

87270687

ELEC. TERMINAL PIN,Female, 0.75 - 1.5 mm2

socket 16-20awg

54шт.

27

14999

ELEC CONNECTOR

plug, cavity, cinch

6шт.

28

87268797

MULTIPOLE CONNECTOR,Female, 30 Pole

30c b plug

1шт.

29

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

4шт.

30

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

socket 18-20awg

6шт.

31

225127C1

PLUG

cavity, green rubber

4шт.

32

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

socket 14-16awg

2шт.

33

225125C1

SEAL

Connector Grey 3.49 - 2.81 mm

2шт.

34

425050A1

ELEC CONNECTOR,Female, 6 Pin

plastic 6c plug

1шт.

35

225404C1

POWER SOCKET,Nickel, 1.0 - 2.0mm

socket 14-16awg

2шт.

Выбрано товаров: 35
