Запчасти Case IH ADX2230 (A.40.A[06]) - AUGER LIGHTING A - Distribution Systems

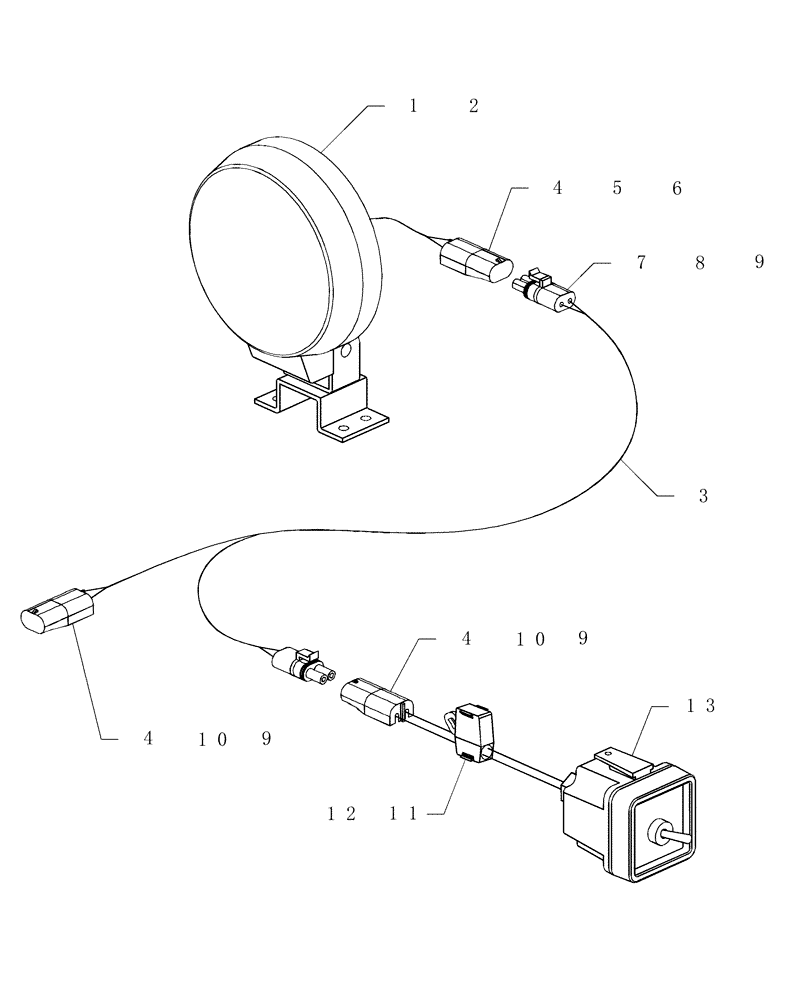

Схема запчастей Case IH ADX2230 - (A.40.A[06]) - AUGER LIGHTING A - Distribution Systems
9
9
13
4
2
5
10
9
8
11
7
4
6
10
1
3
4
12

Артикул

Название

Примечание

Количество

1

87564182

LIGHT

auger 55w pilot

1шт.

2

9703399

BULB,H3, 12V, 55W

lamp assy, halogen h3-12v-55w

1шт.

3

15283

HARNESS

auger light

1шт.

4

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

plastic 2c receptacle

3шт.

5

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

18-20awg

2шт.

6

225124C1

SEAL,2 - 2.9 mm2

seal grn 2.8-2 omm

2шт.

7

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

2шт.

8

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

socket 14-16awg

4шт.

9

225125C1

SEAL

Connector Grey 3.49 - 2.81 mm

8шт.

10

225119C1

TERMINAL

14-16awg

4шт.

11

13972

FUSE HOLDER

inline ato 12awg

1шт.

12

84090658

FUSE,Lt Blue, 15 Amp

15 Amp, Type A

1шт.

13

425061A1

SWITCH

on/off

1шт.

Выбрано товаров: 13
