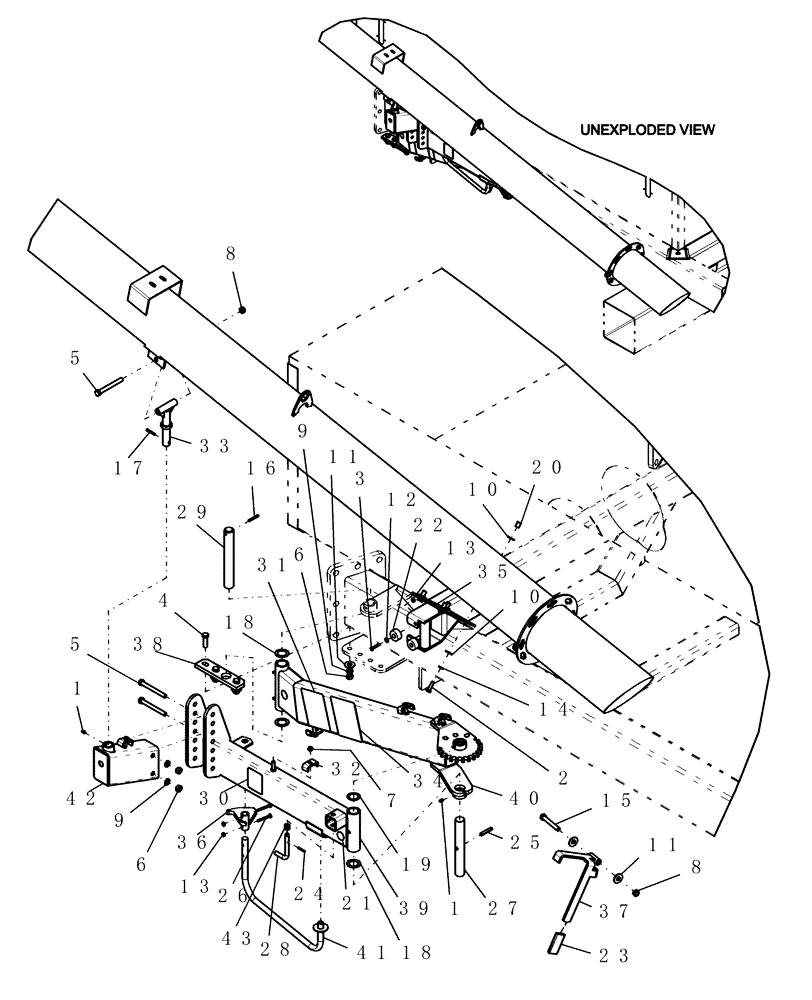

Запчасти Case IH ADX2230 (L.40.D[06]) - AUGER ARM ASSEMBLY (ASN CBJ0005301) L - Field Processing

1

87414

LUBE NIPPLE,1/4" - 28

5шт.

2

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

3

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

2шт.

4

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

3шт.

5

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

3шт.

6

280431

NUT,1/2"-13, G5

5шт.

7

88902

NUT,3/8"-16

6шт.

8

86992215

LOCK NUT,1/2"-13, GC

2шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

5шт.

10

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

8шт.

11

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

5шт.

12

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

2шт.

13

280129

NUT,1/4"-20

4шт.

14

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

15

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

1шт.

16

86624087

PIN,1/4" x 1 3/4", Coiled

1шт.

17

87406

LOCK PIN,6.35mm OD x 38.1mm L, Slotted

1шт.

18

87325445

WASHER,1.25" ID x 1.88" OD x 0.07" Thk

1 1/4" id 1 7/8" 14ga

3шт.

19

87304341

WASHER,1.27" ID x 1.75" OD x 0.03" Thk

1шт.

20

6489

SPECIAL NUT

special 3/8" - grip range, Serial Range: 1/32"-3/16"

4шт.

21

6630

DECAL

grease 100 hours

2шт.

22

51200147

FOOT

rubber, 1 1/2" od x 1/4" id x 3/4"

2шт.

23

9460

CAP

1/4" x 1 1/4" x 3"

1шт.

24

87020816

LOCK PIN,4.76mm OD x 31.75mm L

1шт.

25

86624061

LOCK PIN,9.53mm OD x 50.8mm L, Slotted

1шт.

26

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

27

86989313

PIVOT PIN

auger arm

1шт.

28

86989314

PIN,12.7mm OD

spring auger arm

1шт.

29

GD-378

PIVOT PIN

rear auger

1шт.

30

GD-500.06

DECAL

attention auger

1шт.

31

GD-500.72

CAUTION DECAL

1шт.

32

GD-516

HOSE CLIP

holder

6шт.

33

GD-565

PIVOT

auger

1шт.

34

GH-500.02

DECAL

maintenance

1шт.

35

GI-380

LATCH

top auger arm

1шт.

36

GI-387

LATCH

auger arm clamp

1шт.

37

GI-556

ARM

lock, lower auger

1шт.

38

GI-568

PLATE

auger pivot position

1шт.

39

GR-433

ARM

auger

1шт.

40

GR-434

ARM

auger lower

1шт.

41

GR-435

LATCH

auger arm

1шт.

42

GR-453

ARM

auger pivot

1шт.

43

87505489

COMPRESSION SPRING

23/32" x 2"

1шт.
