Запчасти Case IH ADX2230 (L.40.D[05]) - AUGER ARM ASSEMBLY (BSN CBJ0005300) L - Field Processing

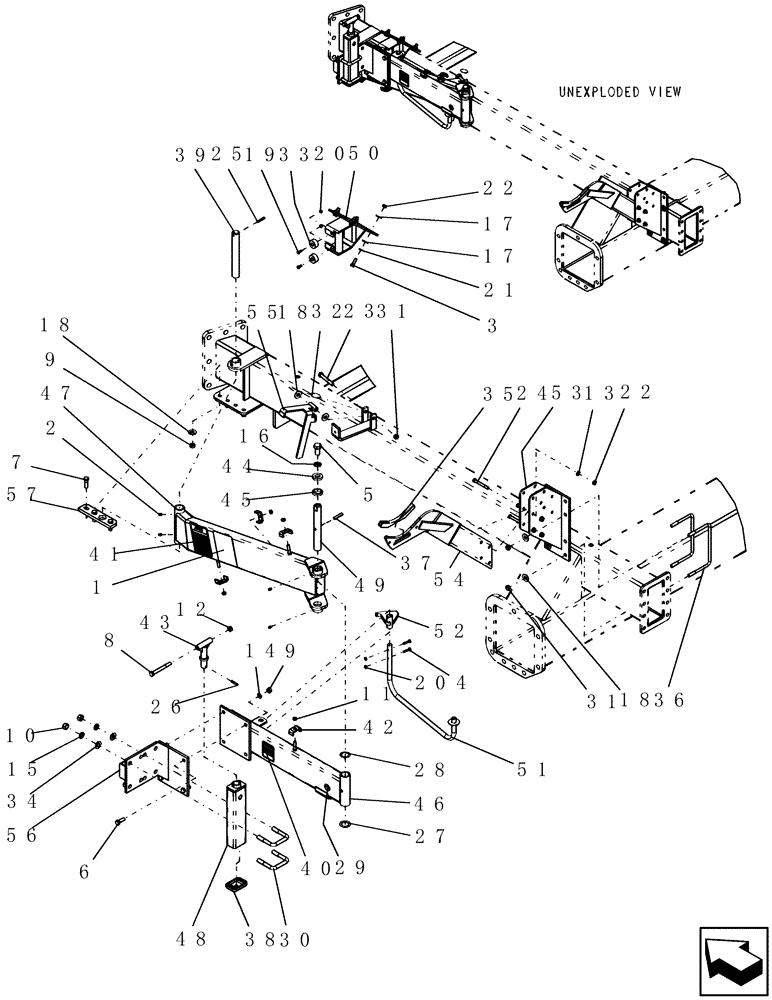

Схема запчастей Case IH ADX2230 - (L.40.D[05]) - AUGER ARM ASSEMBLY (BSN CBJ0005300) L - Field Processing
41
25
18
57
56
20
45
26
16
22
53
44
17
31
33
2
14
32
36
22
54
11
1
19
24
48
10
34
39
15
55
18
4
30
7
38
9
52
20
35
50
37
17
3
51
6
47
29
28
18
27
43
23
42
12
49
40
21
46
8
13
5
9
31

Артикул

Название

Примечание

Количество

1

GH-500.02

DECAL

maintenance

1шт.

2

87414

LUBE NIPPLE,1/4" - 28

4шт.

3

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

4

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

2шт.

5

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

1шт.

6

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

7

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

3шт.

8

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1шт.

9

280431

NUT,1/2"-13, G5

7шт.

10

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

11

88902

NUT,3/8"-16

4шт.

12

86992215

LOCK NUT,1/2"-13, GC

1шт.

13

81547

LOCK WASHER,7/16"

4шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

15

12034871

WASHER

5/8"

4шт.

16

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

1шт.

17

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

8шт.

18

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

9шт.

19

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

20

280129

NUT,1/4"-20

4шт.

21

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

22

9628503

NUT,3/8"-16, G5

8шт.

23

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

1шт.

24

9637240

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

4шт.

25

86624087

PIN,1/4" x 1 3/4", Coiled

1шт.

26

87406

LOCK PIN,6.35mm OD x 38.1mm L, Slotted

1шт.

27

87325445

WASHER,1.25" ID x 1.88" OD x 0.07" Thk

1 1/4" id 1 7/8" 14ga

1шт.

28

87304341

WASHER,1.27" ID x 1.75" OD x 0.03" Thk

1шт.

29

6630

DECAL

grease 100 hours

1шт.

30

7906

U-BOLT

us 5/8"-11 3 1/16" w 3 1/2" d gr5

2шт.

31

7959

LOCK NUT

1/2"-20, GC

5шт.

32

8675

PAD

protective, adhesive back, 1 5/8" Diameter x 1/16" thick, UHMW

1шт.

33

51200147

FOOT

rubber, 1 1/2" od x 1/4" id x 3/4"

2шт.

34

51200141

WASHER

21/32" id x 1 5/16" od x 7/64" thick

4шт.

35

22026

WEAR PLATE

rear surface 8'' auger

1шт.

36

22120

U-BOLT

us 1/2"-13 8 1/8" w 5" d, G5

2шт.

37

86624061

LOCK PIN,9.53mm OD x 50.8mm L, Slotted

1шт.

38

CA-262

GUARD

auger vertical

1шт.

39

GD-378

PIVOT PIN

rear auger

1шт.

40

GD-500.06

DECAL

attention auger

1шт.

41

GD-500.72

CAUTION DECAL

1шт.

42

GD-516

HOSE CLIP

holder

4шт.

43

GD-565

PIVOT

auger

1шт.

44

GH-149

WASHER

auger arm

1шт.

45

GI-243

WASHER

auger elbow

1шт.

46

GI-376

SUPPORTING ARM

auger - upper

1шт.

47

GI-377

ARM

auger - lower

1шт.

48

GI-378

PIVOT

top auger

1шт.

49

GI-601

PIVOT PIN

auger arm

1шт.

50

GI-380

LATCH

top auger arm

1шт.

51

GI-386

LATCH

arm, auger

1шт.

52

GI-387

LATCH

auger arm clamp

1шт.

53

GI-388

BASE

support rear auger

1шт.

54

GI-390

SUPPORTING ARM

auger rear

1шт.

55

GI-556

ARM

lock, lower auger

1шт.

56

GI-567

ARM

flip, auger

1шт.

57

GI-568

PLATE

auger pivot position

1шт.

Выбрано товаров: 57
