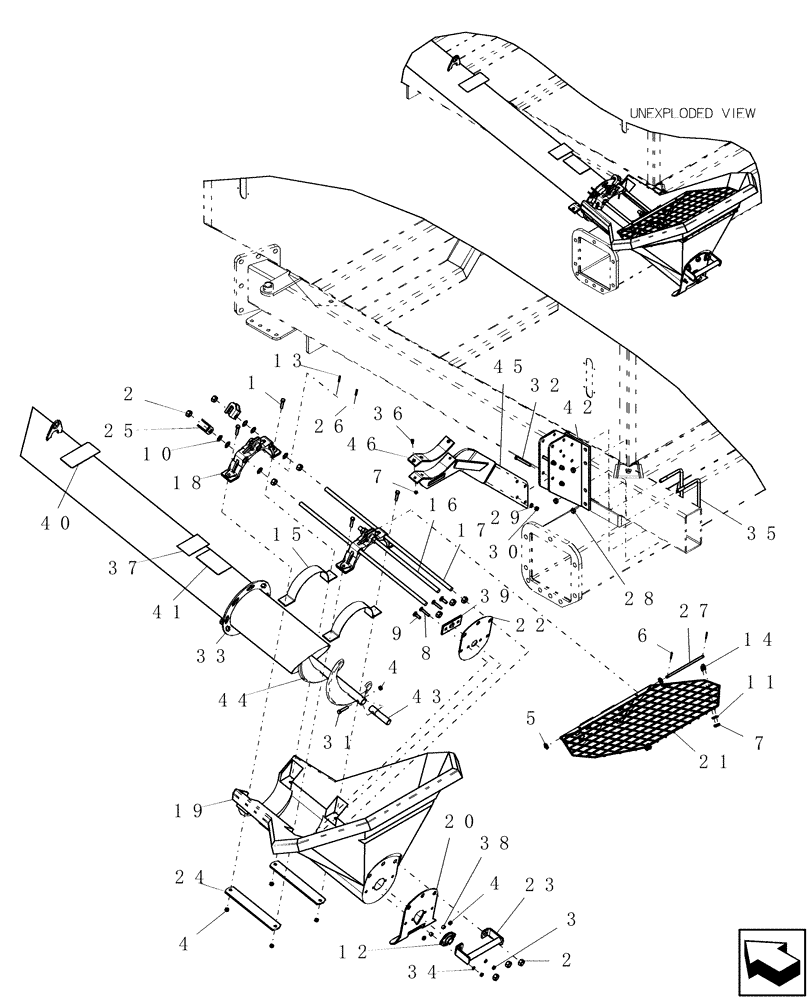

Запчасти Case IH ADX2230 (L.40.D[02]) - AUGER HOPPER ASSEMBLY (ASN CBJ0005301) L - Field Processing

1

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

4шт.

2

280374

NUT,Hex, 5/8" - 11, Gr 5

12шт.

3

9635082

NUT,5/16" - 18, Gr 5

2шт.

4

88902

NUT,3/8"-16

7шт.

5

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

6

80755

COTTER PIN,1/8" OD x 1" L

2шт.

7

280129

NUT,1/4"-20

7шт.

8

280618

CARRIAGE BOLT,Short NK, 5/16"-18 x 2", G5

2шт.

9

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

2шт.

10

87325926

WASHER,0.62" ID x 1.12" OD x 0.05" Thk

5/8" id x 1 1/8" 18ga

8шт.

11

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

12

9549

FLANGED BEARING

c/w flange 2-hole

1шт.

12a

574844

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

1шт.

12b

86548974

FLANGE,Bearing

2шт.

12c

87431217

COLLAR,25.43mm ID x 38.1mm OD x 13.5mm W

Includes Set Screw

1шт.

13

87020816

LOCK PIN,4.76mm OD x 31.75mm L

2шт.

14

9917

U-BOLT

ur 1/4"-20 x 3/8" w x 7/8" d, GR5

2шт.

15

51200061

WEAR STRIP

poly intake

2шт.

16

51200118

ROD

auger cage -short - 8" auger

1шт.

17

51200119

ROD

auger cage - long - 8" auger

2шт.

18

21756\C

CAGE

8" auger hopper

2шт.

19

GI-382

HOPPER

auger - 8"

1шт.

20

GI-383

END PLATE

outer - hopper

1шт.

21

GI-550

SCREEN

auger hopper

1шт.

22

GR-452

PLATE

inner 8" auger hopper

1шт.

23

GI-561

HANDLE

8" auger hopper

1шт.

24

GI-565

PLATE

hopper bottom flat 8''

2шт.

25

GL-763

HOOK

hopper retainer

2шт.

26

GL-798

PIN

indexing - hopper

1шт.

27

GL-809

PIVOT PIN

auger hopper shield

1шт.

28

86992215

LOCK NUT,1/2"-13, GC

4шт.

29

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

30

9628503

NUT,3/8"-16, G5

4шт.

31

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

32

9637240

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

4шт.

33

GR-430

TUBE,11.375" OD x 188.812" L

8" auger

1шт.

34

80681

LOCK WASHER,5/16"

2шт.

35

22120

U-BOLT

us 1/2"-13 8 1/8" w 5" d, G5

2шт.

36

86511975

SCREW,Flat, 1/4" - 20 x 3/4"

3шт.

37

22580

DECAL

attention check

1шт.

38

87504675

SPACER

.364" id x .54" od x 3/8" long

2шт.

39

87417145

SEAL

7" auger bearing

1шт.

40

443822A1

DECAL

auger direction 2 panel pictorial Europe

1шт.

41

GD-500.80

DECAL

danger auger flighting

1шт.

42

GI-388

BASE

support rear auger

1шт.

43

87432223

SHAFT

8" flighting stub

1шт.

44

GI-588

AUGER FLIGHT

cupped 7 5/16" x 200" long

1шт.

44

51200114

RUBBER FLIGHT

7" cup

1шт.

Refer to Figure L.40.D[08] for component parts

1шт.

45

GR-437

SUPPORTING ARM

rear auger

1шт.

46

GR-439

SADDLE

auger

1шт.
