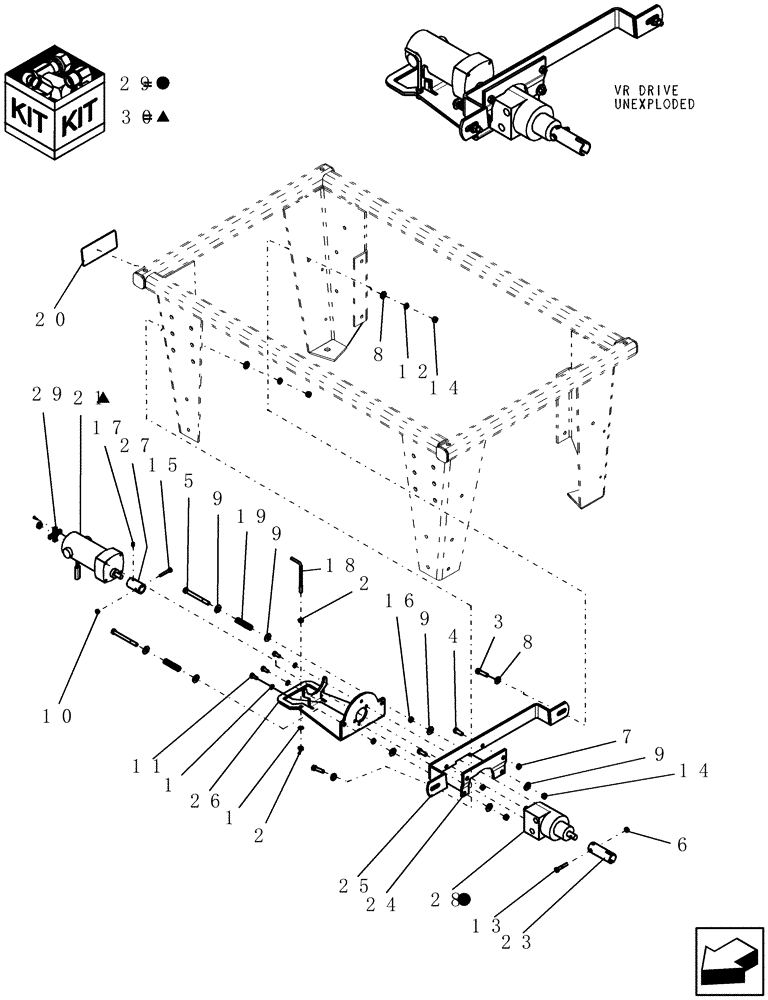

Запчасти Case IH ADX2230 (L.10.G[12]) - THIRD TANK OPTION - VR DRIVE L - Field Processing

1

80681

LOCK WASHER,5/16"

4шт.

2

9635082

NUT,5/16" - 18, Gr 5

2шт.

3

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

4

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

5

80012047

BOLT,Hex, 3/8" - 16 x 4", Grade 5

2шт.

6

281010

LOCK NUT,7/8"-14, GC

1шт.

7

88902

NUT,3/8"-16

2шт.

8

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

4шт.

9

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

8шт.

10

280129

NUT,1/4"-20

1шт.

11

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

12

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

13

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

1шт.

14

9628503

NUT,3/8"-16, G5

4шт.

15

280164

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

1шт.

16

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

17

6986

SET SCREW

1/4"-20 x 1/2"

1шт.

18

9456

BOLT

5/16"-18 x 4 1/4"l x 1 35/64"d 1 9/16" leg

1шт.

19

87506229

COMPRESSION SPRING

1/16" Wire x 5/8" od x 2 3/4" long

2шт.

20

22408

DECAL

vr drive filter maintenance

1шт.

21

87445140

ELECTRIC MOTOR

121rpm @12v 1/15hp

1шт.

87445140R

REMAN-ELECTRIC MOTOR

ADX2180 (6/01-11/06), ADX2230 (6/01-7/08)

1шт.

87445140C

CORE-ELECTRIC MOTOR

Return Number

1шт.

21

87504964

SEAL KIT

seals output sht vr motor

1шт.

23

GI-182

COUPLING

interlink, vr drive

1шт.

24

GI-621

BRACKET

variable mount adapter

1шт.

25

GI-670

BRACKET

mount, 3rd tank vr drive

1шт.

26

GI-758

MOUNTING PLATE

vr motor

1шт.

27

GL-484

COUPLING

1шт.

28

GM-363

HYDRAULIC MOTOR

torque generator 2 3/16" 3/rev

1шт.

28

22396

SEAL KIT

torque generator

1шт.

29

GM-420K

SEAL KIT

shaft bison motor

1шт.

30

GM-399K

KIT

bearing replacement - bison motor

1шт.

Includes 23334, 23335, GM-420K and instruction sheet

1шт.
