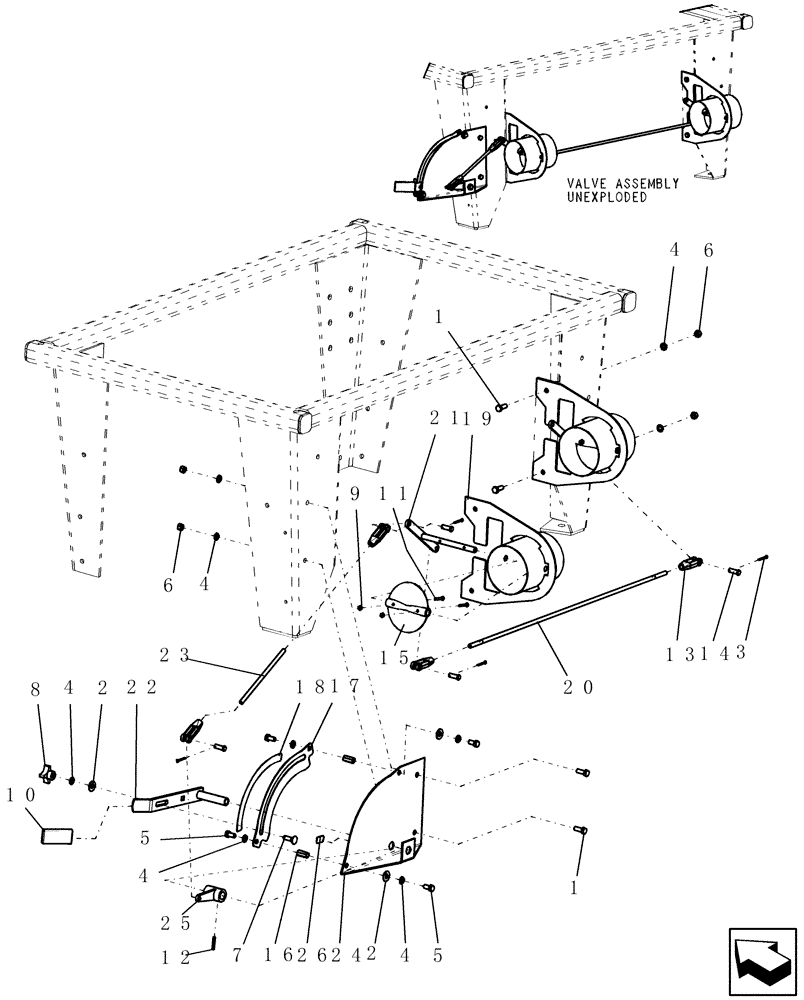

Запчасти Case IH ADX2230 (L.10.G[09]) - THIRD TANK OPTION - AIR CONTROL L - Field Processing

1

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

2

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3шт.

3

80755

COTTER PIN,1/8" OD x 1" L

4шт.

4

80680

LOCK WASHER,3/8 0.381 CST ZND

11шт.

5

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

4шт.

6

9628503

NUT,3/8"-16, G5

6шт.

7

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

1шт.

8

6909

KNOB

plastic 4-prong 3/8" thru hole brass insert

1шт.

9

9148

LOCK NUT

#10-32, stainless steel

4шт.

10

9460

CAP

1/4" x 1 1/4" x 3"

1шт.

11

51200020

SCREW

#10-32 x 1 1/4", stainless steel

4шт.

12

87020816

LOCK PIN,4.76mm OD x 31.75mm L

1шт.

13

51200897

LINKAGE YOKE

clevis 3/8" x 2 1/2" long

4шт.

14

9834

CLEVIS PIN

3/8" x 1 1/16"

4шт.

15

51200068

DAMPER

air control valve

2шт.

16

51200078

PIPE UNION NUT

coupling 3/8"-16 x 1 1/8", G2

2шт.

17

GI-319

MOUNTING PLATE

air control decal

1шт.

18

GI-500.16

DECAL

air control

1шт.

19

GI-681

BODY

air valve

2шт.

20

GI-682

ROD

control, long - 3rd tank

1шт.

21

GI-683

ROD

air valve pivot 3rd tank

2шт.

22

GI-684

ARM

control, air control option

1шт.

23

GI-685

ARM

short control 3rd tank

1шт.

24

GI-686

CONTROL PANEL

3rd tank

1шт.

25

GI-687

LINK

control, 3rd tank

1шт.

26

GL-700.24

DECAL

air control pointer

1шт.
