Запчасти Case IH ADX2230 (A.12.A[01]) - TBT THRU FRAME HYDRAULIC HOSES A - Distribution Systems

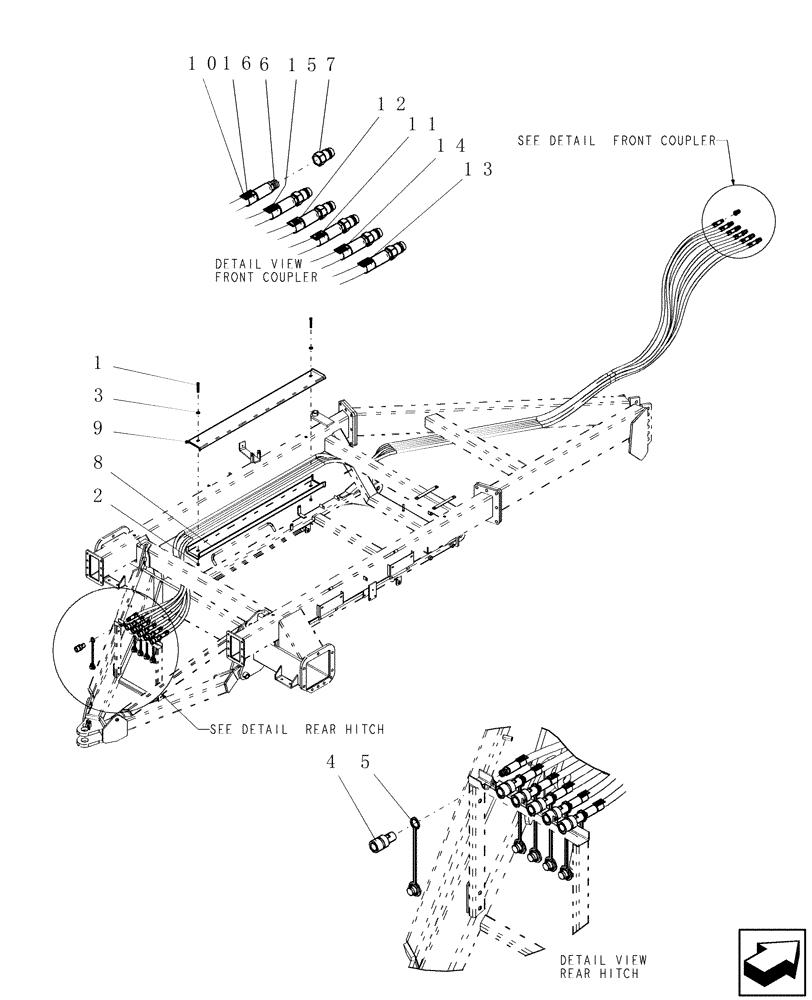

Схема запчастей Case IH ADX2230 - (A.12.A[01]) - TBT THRU FRAME HYDRAULIC HOSES A - Distribution Systems
2
6
15
10
14
5
11
8
7
13
1
12
3
9
4
16

Артикул

Название

Примечание

Количество

1

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

2

88902

NUT,3/8"-16

2шт.

3

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

4

1994568C1

COUPLING, QUICK, FEM

1/2" fpt

6шт.

5

86592083

DUST CAP

pioneer coupler - 1/2"

6шт.

Not Shown

1шт.

6

7092

HYDRAULIC HOSE,0.50" ID x 292.00", SAE J517

1/2" x 292" fl, 1/2" mpt x 1/2" mpt

6шт.

7

9412

QUICK MALE COUPLING

1/2"

6шт.

Tow Between Only

1шт.

8

GE-258

SHIELD

front bottom hyd. hose

1шт.

9

GE-259

SHIELD

front top hydraulic hose

1шт.

10

GL-372

COVER

hydraulic hose label - 1"

12шт.

11

GL-700.36

DECAL

depth pressure

2шт.

12

GL-700.37

DECAL

depth return

2шт.

13

GL-700.38

DECAL

wing lift pressure

2шт.

14

GL-700.39

DECAL

wing lift return

2шт.

15

GL-700.40

DECAL

auxiliary pressure

2шт.

16

GL-700.41

DECAL

auxiliary return

2шт.

Выбрано товаров: 18
