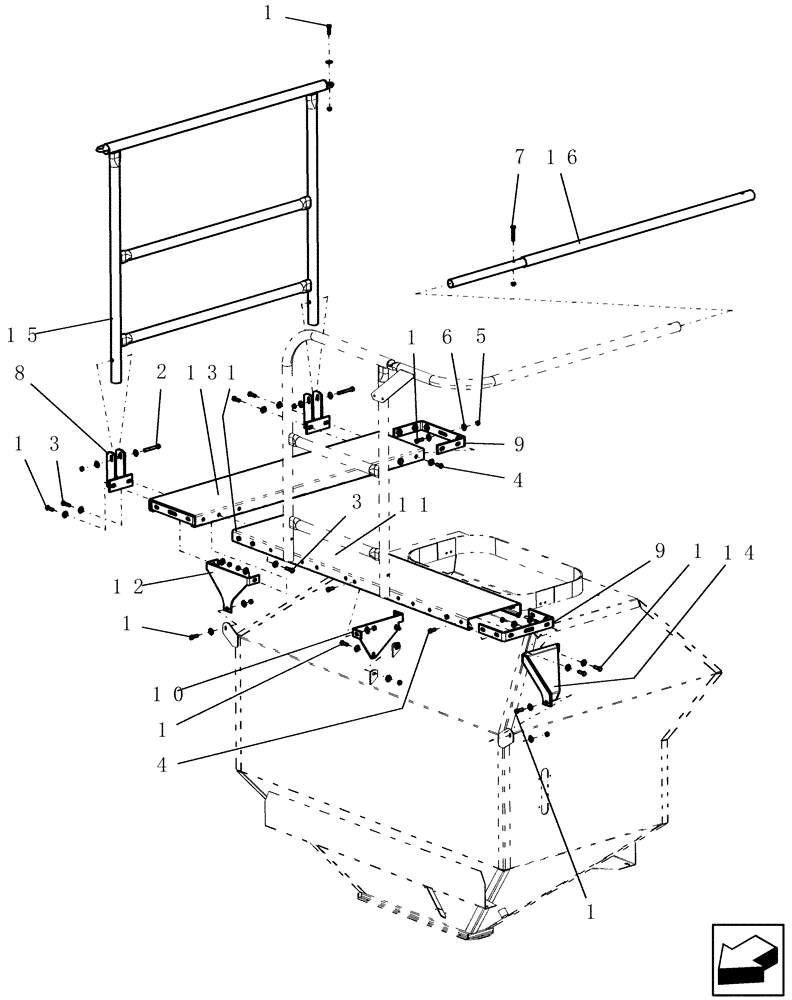

Запчасти Case IH ADX2230 (L.10.G[05]) - THIRD TANK OPTION L - Field Processing

1

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

14шт.

2

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

3

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

4

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

13шт.

5

88902

NUT,3/8"-16

32шт.

6

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

51шт.

7

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

8

GI-801

BRACKET

mount, railing

2шт.

9

GI-804

CAP

end, narrow grating

4шт.

10

GI-809

SUPPORT

center - 3rd tank

1шт.

11

GI-812

GRATING

front platform

1шт.

12

GI-813

FOOT

front narrow grating - side

1шт.

13

GI-814

EXTENSION

grating, 3rd tank

1шт.

14

GI-818

BRACKET

end, step grating

1шт.

15

GI-828

RAIL ASSY.

3rd tank side

1шт.

16

GI-875

EXTENSION

guard rail

1шт.
