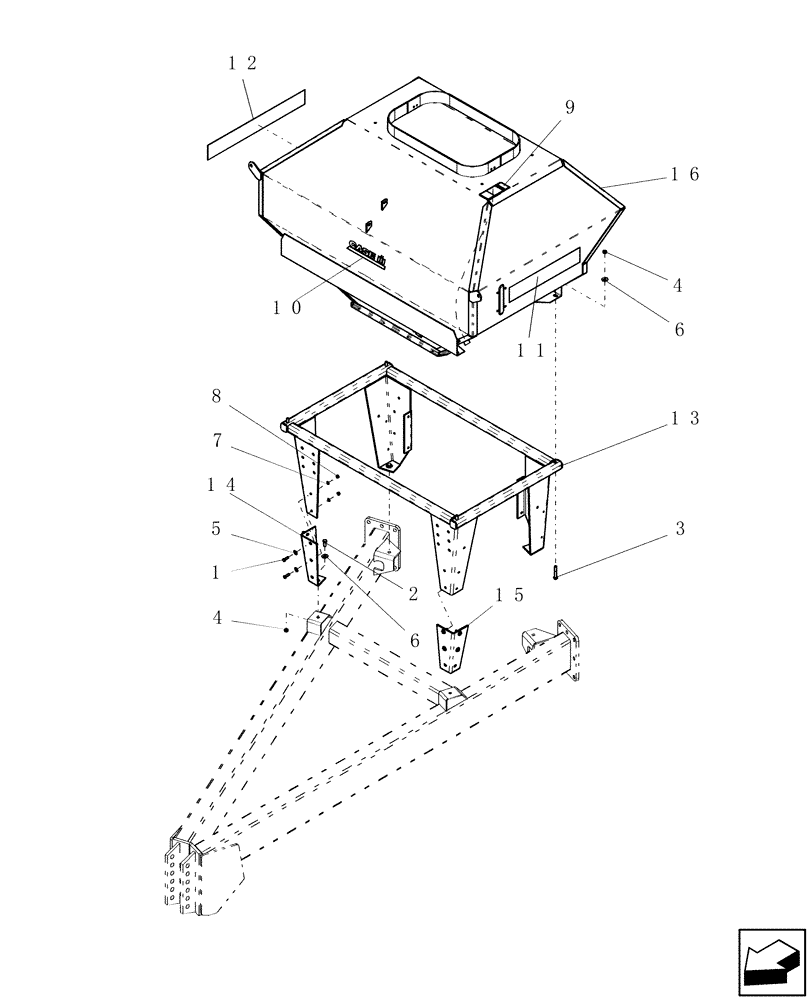

Запчасти Case IH ADX2230 (L.10.G[01]) - THIRD TANK OPTION - TANK AND FRAME L - Field Processing

1

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

8шт.

2

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

4шт.

3

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

4шт.

4

86992215

LOCK NUT,1/2"-13, GC

8шт.

5

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

8шт.

6

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

8шт.

7

80680

LOCK WASHER,3/8 0.381 CST ZND

8шт.

8

9628503

NUT,3/8"-16, G5

8шт.

9

51200080

WARNING DECAL

No Step

1шт.

10

192849A2

DECAL

case ih - 8mm logo

1шт.

11

351934A1

DECAL

opt tank LH front fade

1шт.

12

351937A1

DECAL

fade 31" RH

1шт.

13

GI-669

FRAME

3rd tank

1шт.

14

GI-672

STAND

drop leg, front 3rd tank RH

1шт.

15

GI-673

STAND

drop leg, front 3rd tank LH

1шт.

16

GI-665FR

TANK

third 46 cubic feet

1шт.

16

GI-680FR

TANK

third 62 cubic feet

1шт.

100

425442A1

DECAL

3rd tank

1шт.

Not Shown

1шт.
