Запчасти Case IH ADX2230 (L.10.F[37]) - TOW BETWEEN CONNECTOR MOUNTS L - Field Processing

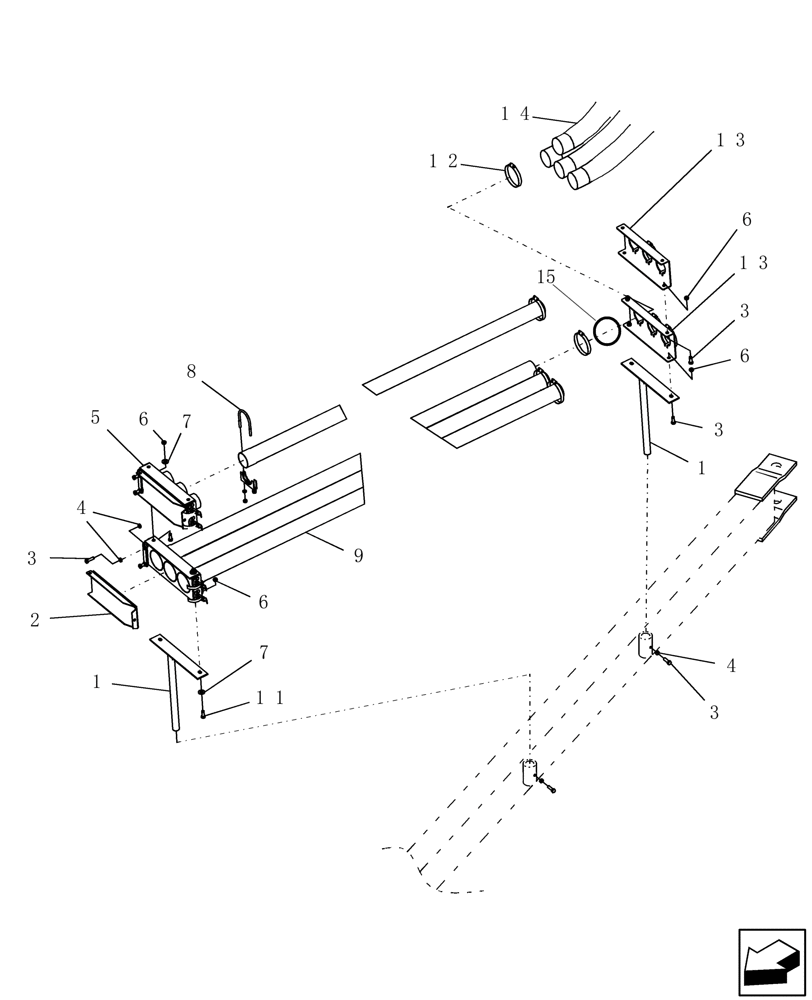

Схема запчастей Case IH ADX2230 - (L.10.F[37]) - TOW BETWEEN CONNECTOR MOUNTS L - Field Processing
3
6
7
9
3
8
6
15
4
14
4
6
7
3
1
1
13
6
2
5
12
13
3
11

Артикул

Название

Примечание

Количество

1

GP-381

SUPPORT

hose high capacity

4шт.

1

GP-200

SUPPORT

post, hose

4шт.

2

GD-254

COVER

plate hose connect

4шт.

3

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

20шт.

4

87016560

JAM NUT,Jam, 3/8"-16, G5

20шт.

5

GD-672A

HOLDER

quick connect 2 1/2" female

4шт.

Includes two 88011, four 87016560, two 5625 and four 4630

1шт.

6

88902

NUT,3/8"-16

12шт.

7

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

8шт.

8

1824

CLAMP

muffler, 2 1/2"

12шт.

9

GE-360

TUBE,63.5 mm OD x 1829 mm L

primary distribution - quick connect

24шт.

11

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

12

214-1444

HOSE CLAMP,58.6mm - 82.5mm

12шт.

13

GP-201

PANEL

standard tube hose mount

4шт.

14

86992286

HOSE,2.50" ID x 100.00'

Spiral PVC Black Order Multiples of 100 Feet

1шт.

15

6177

OIL SEAL

Hose Seal

3шт.

Выбрано товаров: 16
