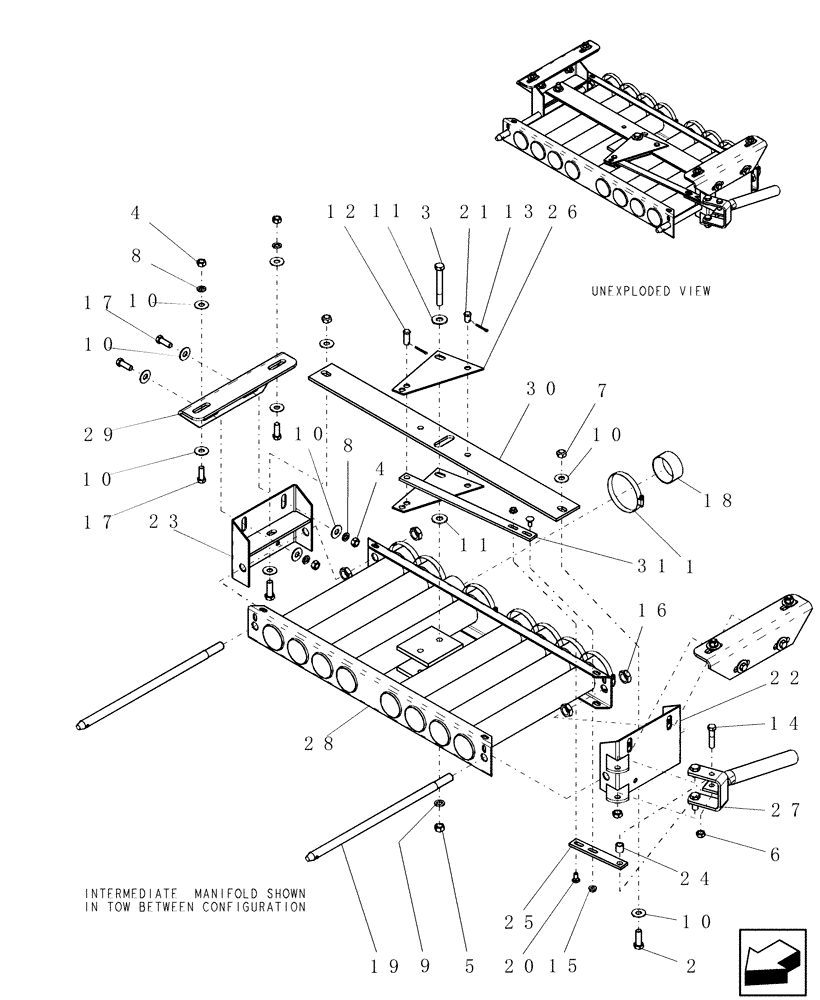

Запчасти Case IH ADX2230 (L.10.F[24]) - INTERMEDIATE MANIFOLD L - Field Processing

1

214-1444

HOSE CLAMP,58.6mm - 82.5mm

8шт.

2

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

3

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

4

280717

NUT,7/16"-14, G5

8шт.

5

280431

NUT,1/2"-13, G5

1шт.

6

280980

NUT,7/16"-14, GC

1шт.

7

86992215

LOCK NUT,1/2"-13, GC

3шт.

8

81547

LOCK WASHER,7/16"

8шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

10

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

20шт.

11

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

12

1841

CLEVIS PIN

1/2" x 1 1/4"

1шт.

13

80755

COTTER PIN,1/8" OD x 1" L

2шт.

14

280117

BOLT,Hex, 7/16" - 14 x 2", Gr 5

1шт.

15

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

16

86632557

JAM NUT,Jam, 3/4"-10, G5

4шт.

17

9627887

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5, Full Thd

8шт.

18

4731

CAP

vinyl 2 1/2" id x 1" long

8шт.

19

412781A1

STUD

3/4"-10 x 18 1/4"

2шт.

20

51200045

CARRIAGE BOLT

5/16"-18 x 3/4", G5

2шт.

21

GH-145

CLEVIS PIN

1/2" x 11/16"

1шт.

22

GH-167

BRACKET

mount, LH

1шт.

23

GH-168

BRACKET

intermediate manifold mount RH

1шт.

24

GH-250

SPACER

actuator arm

1шт.

25

GH-251

ARM

actuator short

1шт.

26

GH-253

PLATE

actuator intermediate manifold

2шт.

27

GI-242

HANDLE

intermediate manifold

1шт.

28

GI-363

MANIFOLD

intermediate

1шт.

29

GI-364

BRACKET

mount, intermediate manifold - tow between

2шт.

Tow Between Only

1шт.

29

GI-362

BRACKET

intermediate manifold

2шт.

Tow Behind

1шт.

30

GL-449

PLATE

crossmember, intermediate manifold

1шт.

31

GL-450

POWER ARM

long

1шт.

100

412919A1

U-BOLT

us 1/2"-13 x 3 1/8" w x 3" d G2 1 1/2" thread

2шт.

100

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

100

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

100

280431

NUT,1/2"-13, G5

4шт.
