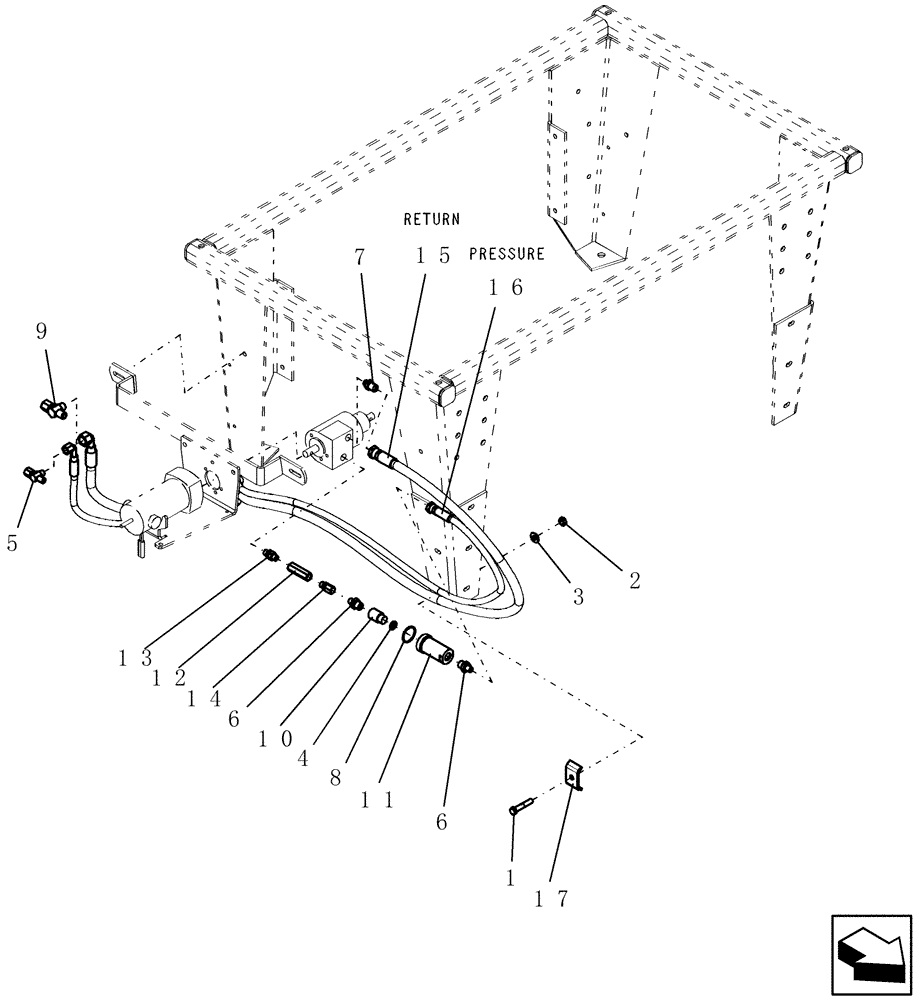

Запчасти Case IH ADX2230 (A.10.A[14]) - THIRD TANK OPTION - HYDRAULIC COMPONENTS A - Distribution Systems

1

86505984

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

1шт.

2

280980

NUT,7/16"-14, GC

1шт.

3

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

4

8289

WASHER

1/2" id 13/16" od 3/32"

1шт.

5

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

6

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

2шт.

7

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

1шт.

8

21640

O-RING,1.44" ID x 1.68" OD x 0.12"

1 7/16" id 1 43/64" od 3/64" thick

1шт.

9

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

10

22156

HYDRAULIC OIL FILTER

and seal kit

1шт.

11

22446

HYDRAULIC OIL FILTER

complete assembly

1шт.

Includes 22156 and 51200102

1шт.

12

22447

VALVE

1 1/4" gpm p. comp deltrol pressure compensated

1шт.

13

22448

FITTING

hydraulic - straight adapter 3/8" morb x 3/8" morb

1шт.

14

22449

FITTING

hydraulic swivel adapter 3/8" mb 3/8" fjx

1шт.

15

22692

HYDRAULIC HOSE

1/2" x 89" fl, 1/2" mpt x 1/2" fjic

1шт.

16

22693

HYDRAULIC HOSE

1/4" x 78 1/2" fl, 3/8" fjic x 3/8" fjic

1шт.

17

CC-105

HOSE CLAMP

for 2 hoses

1шт.
