Запчасти Case IH ADX2230 (L.10.F[12]) - MECHANICAL DRIVE ASSEMBLY CROSS SHAFT L - Field Processing

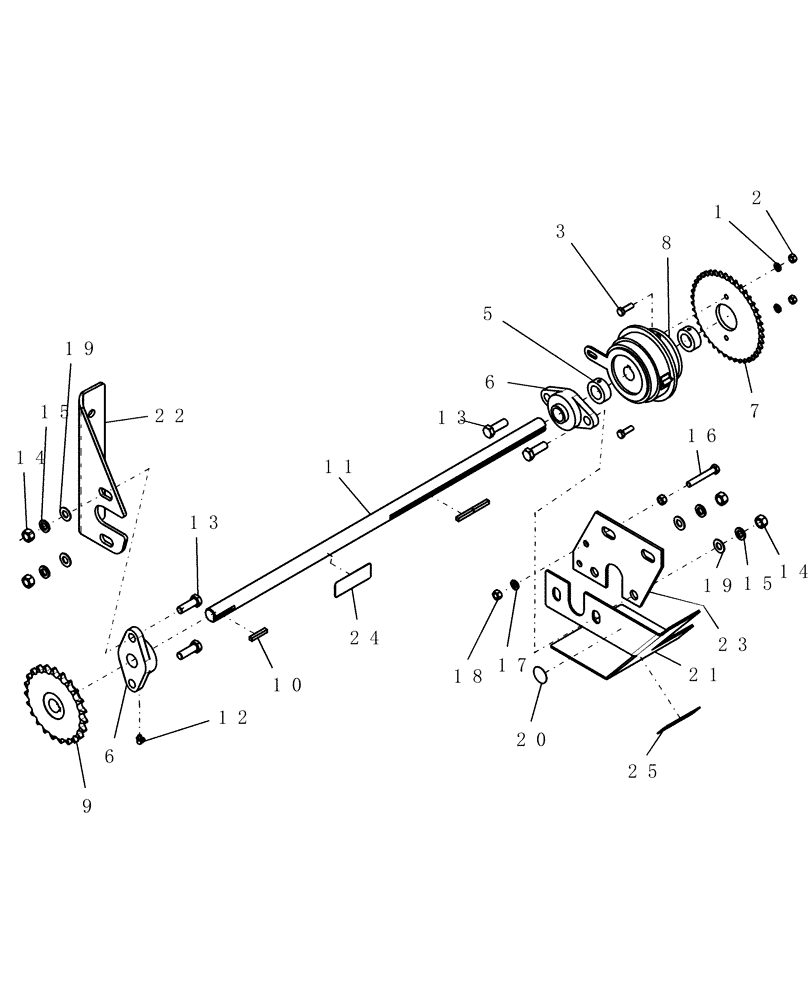

Схема запчастей Case IH ADX2230 - (L.10.F[12]) - MECHANICAL DRIVE ASSEMBLY CROSS SHAFT L - Field Processing
2
16
8
11
22
12
7
6
21
18
6
13
23
14
20
13
14
3
5
17
15
19
10
9
1
24
15
19
25

Артикул

Название

Примечание

Количество

1

80681

LOCK WASHER,5/16"

2шт.

2

9635082

NUT,5/16" - 18, Gr 5

2шт.

3

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

5

2259

COLLAR

1" lock

2шт.

6

7086

BEARING ASSY,25.4mm ID

with 2-hole flange

2шт.

7

GH-342

SPROCKET

42 tooth

1шт.

7

GH-330

SPROCKET

30 tooth

1шт.

Use smaller sprocket if slide setting is low

1шт.

7

GH-355

SPROCKET

55 tooth

1шт.

Use larger sprocket if slide setting is high

1шт.

8

87424061

KIT

magnetic clutch with lockout

1шт.

9

GD-558

SPROCKET

cross shaft - 60" x 13"

1шт.

9

GL-367

SPROCKET

cross shaft - 60w23

1шт.

For Dual Strand

1шт.

10

GD-560

KEY

1/4" sq x 1 1/2" long

3шт.

11

GI-160

CROSS SHAFT

meter drive

1шт.

12

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

13

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

14

280431

NUT,1/2"-13, G5

4шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

16

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

17

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

18

9628503

NUT,3/8"-16, G5

2шт.

19

5868

WASHER,0.5" ID x 1" OD x 0.06" Thk

1/2" id 1" 16ga

4шт.

20

6630

DECAL

grease 100 hours

2шт.

21

GI-147

SHIELD

clutch

1шт.

22

GI-203

BRACKET

bearing mount, outside

1шт.

23

GI-204

PLATE

height

1шт.

24

GI-500.11

DECAL

driven 1

1шт.

25

GI-500.12

DECAL

drive 2

1шт.

Выбрано товаров: 30
