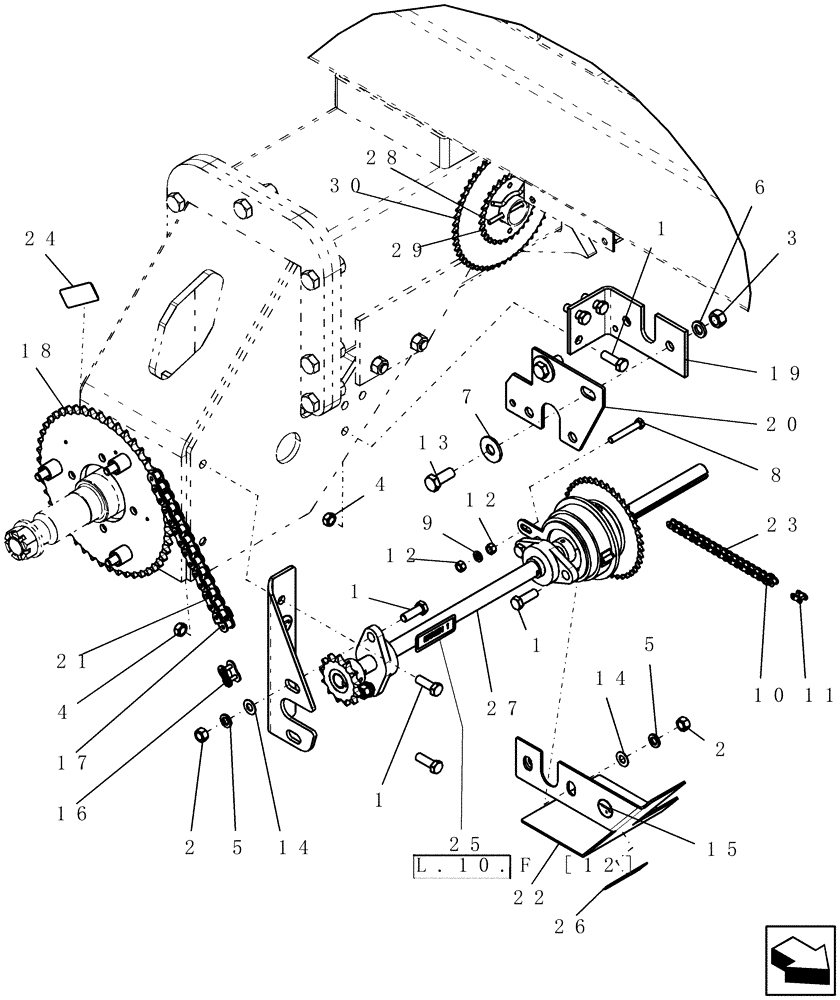

Запчасти Case IH ADX2230 (L.10.F[10]) - MECHANICAL DRIVE ASSEMBLY SINGLE STRAND ASN CBJ0004381 L - Field Processing

1

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

9шт.

2

280431

NUT,1/2"-13, G5

4шт.

3

280374

NUT,Hex, 5/8" - 11, Gr 5

10шт.

4

86992215

LOCK NUT,1/2"-13, GC

5шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

6

12034871

WASHER

5/8"

10шт.

7

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

10шт.

8

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

9

80680

LOCK WASHER,3/8 0.381 CST ZND

3шт.

10

2245

LINK,12.7mm Pitch

connector, offset 40-1

1шт.

11

25195

LINK,12.7mm Pitch

roller conn 40-1

1шт.

12

9628503

NUT,3/8"-16, G5

2шт.

13

88062

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

2шт.

14

5868

WASHER,0.5" ID x 1" OD x 0.06" Thk

1/2" id 1" 16ga

4шт.

15

6630

DECAL

grease 100 hours

2шт.

16

241-1316

LINK,19.05mm Pitch

connector, 60-1 roller chain

1шт.

17

7510

CHAIN LINK

connector, offset

1шт.

18

23740

SPROCKET

60 x 48 - h817 & h1010

1шт.

19

87429222

BRACKET

mount, inner mechanical drive

1шт.

20

87445880

BRACKET

mount, mech drive inner

1шт.

21

GH-123

CHAIN

meter drive

1шт.

22

GI-147

SHIELD

clutch

1шт.

23

GI-148

CHAIN,112 Links x 25.4mm = 2844.8mm

meter drive box

1шт.

24

GI-500.10

DECAL

drive 1

1шт.

25

GI-500.11

DECAL

driven 1

1шт.

26

GI-500.12

DECAL

drive 2

1шт.

27

NSS

NOT SOLD SEPARAT

This item not saleable

1шт.

Refer to L.10.F [12]

1шт.

28

419985A1

HAIR PIN COTTER

1/4" x 5"

1шт.

29

GH-330

SPROCKET

30 tooth

1шт.

30

GH-355

SPROCKET

55 tooth

1шт.
