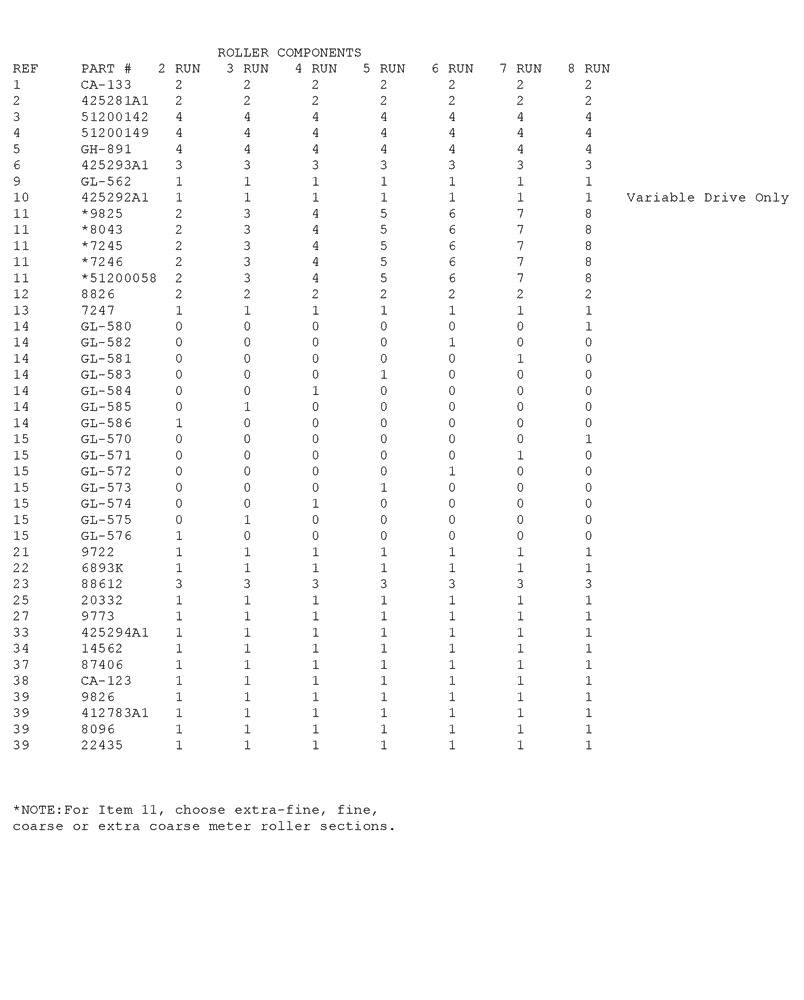

Запчасти Case IH ADX2230 (L.10.F[07]) - METER ROLLER CHART L - Field Processing

1

CA-133

SEAL

meter roller ends

2шт.

2

425281A1

BUSHING

puck, meter roller outer

2шт.

3

51200142

O-RING,2.375" ID x 2.5" OD x 0.63"

1 1/8" id x 1 1/4" od x 1/16" thick

4шт.

4

51200149

BEARING

6010LLC/2AQT with Steel Seals (NTN)

1шт.

5

GH-891

BEARING COVER

bearing - steel

4шт.

6

87578

LOCK PIN,3/16" x 1 3/4", Slotted

3шт.

9

GL-562

SHAFT

meter roller - 2 to 8 run

1шт.

10

70921559

ROLL PIN,7.94mm OD x 41.27mm L

1шт.

11

9825

ROLLER

meter section, xfine low clearance

1шт.

11

22737

ROLLER

Meter Section, X-Fine Segmented, Years: -01-MAR-12

1шт.

11

8043

ROLLER

meter section x-fine 3.17" wide

1шт.

11

7245

ROLLER

meter section, fine

1шт.

11

7246

ROLLER

meter section, coarse

1шт.

11

51200058

ROLLER

meter section, x-coarse

1шт.

12

8826

RUBBER PAD

meter roller inner bushing plastic

2шт.

13

7247

HEX SOC SCREW

hex socket nylon 5/16" x 1/2" hx-skt

1шт.

14

GL-580

SPACER

outer meter roller blanks center of 8 run rlr (2.5" long)

1шт.

14

GL-582

SPACER

outer meter roller blanks 2 runs (8.797" long)

1шт.

14

GL-581

SPACER

outer meter roller blanks 1 run (5.649" long)

1шт.

14

GL-583

SPACER

outer meter roller blanks 3 runs (11.945" long)

1шт.

14

GL-584

SPACER

outer meter roller blanks 4 runs (15.094" long)

1шт.

14

GL-585

SPACER

outer meter roller blanks 5 runs (18.242" long)

1шт.

14

GL-586

SPACER

outer meter roller blanks 6 runs (21.391" long)

1шт.

14

GL-570

SPACER

inner meter roller blanks center of 8 run rlr (3/4" long)

1шт.

15

GL-571

SPACER

inner meter roller blanks 1 run (3.899" long)

1шт.

15

GL-572

SPACER

inner meter roller blanks 2 runs (7.047" long)

1шт.

15

GL-573

SPACER

inner meter roller blanks 3 runs (10.195" long)

1шт.

15

GL-574

SPACER

inner meter roller blanks 4 runs (13.343" long)

1шт.

15

GL-575

SPACER

inner meter roller blanks 5 runs (16.492" long)

1шт.

15

GL-576

SPACER

inner meter roller blanks 6 runs (19.64" long)

1шт.

21

9722

SCREW,#6 - 32 x 0.50", SST

mch #6-32 x 1/2" rh pi ss

1шт.

22

6893K

KIT

cam follower stud

1шт.

23

88612

WASHER,0.22mm ID x 0.5mm OD x 0.05mm Thk

3шт.

25

20332

LOCK NUT,#10-32, GB

1шт.

27

9773

SCREW,#12 x 0.50"

sms #12 x 1/2" plt rh sq

1шт.

33

425294A1

ROLL PIN

1/8" x 1 1/4"

1шт.

34

87506452

ACTUATOR

meter roller shaft

1шт.

37

87406

LOCK PIN,6.35mm OD x 38.1mm L, Slotted

1шт.

38

CA-123

AGITATOR

cam

1шт.

39

9826

DISC

meter roller id x-fine low clearance

1шт.

39

412783A1

DISC

meter roller id fine

1шт.

39

8096

DISC

meter roller id coarse

1шт.

39

22435

DISC

meter roller id x-coarse

1шт.

40

281007

SCREW,Phillips Drive, Pan HD, #6 - 32 x 1/2"

6-32X1/2 PAN-HD C/R CST ZND

1шт.
