Запчасти Case IH ADX2230 (A.10.A[09]) - AUGER HYDRAULIC COMPONENTS (ASN CBJ0005301) A - Distribution Systems

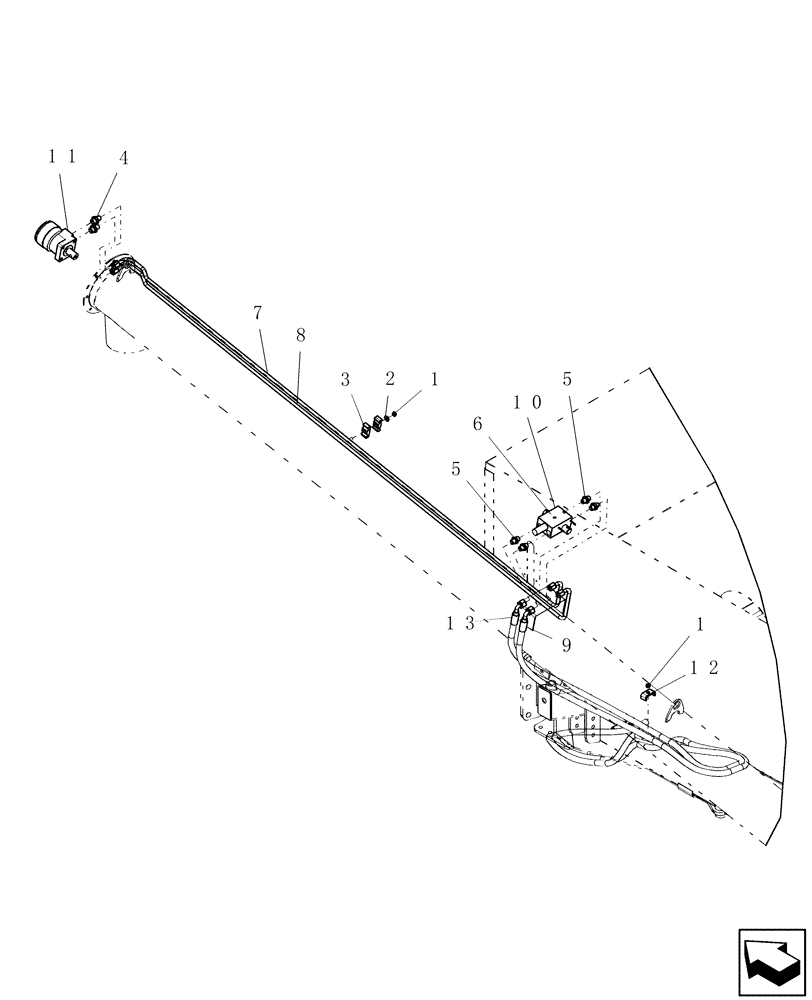

Схема запчастей Case IH ADX2230 - (A.10.A[09]) - AUGER HYDRAULIC COMPONENTS (ASN CBJ0005301) A - Distribution Systems
1
1
11
8
5
6
3
12
5
4
13
10
9
7
2

Артикул

Название

Примечание

Количество

1

88902

NUT,3/8"-16

2шт.

2

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

1шт.

3

84307616

CLAMP

plastic, hydraulic tube

2шт.

4

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

2шт.

5

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

4шт.

6

87415457

SEAL KIT

hydraulic valve rotary

1шт.

7

86989310

LINE

hydraulic auger top

1шт.

8

86989311

LINE

hydraulic auger bottom

1шт.

9

86989312

HYDRAULIC HOSE,0.50" ID x 136.00", SAE 100R1

1/2" x 136" fl, 1/2" fjic x 1/2" fjic

1шт.

10

87415456

HYDRAULIC VALVE

rotary

1шт.

11

22596

HYDRAULIC MOTOR

Danfoss series 1, Years: -31-JUL-04

1шт.

22596R

REMAN-HYD MOTOR

ADX2180, ADX3260, Both (6/01-11/06), ADX2230 (6/01-7/08), All (ASN CBJ0005301) Series 1

1шт.

22596C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

11

51200084

SEAL KIT

hydraulic motor series 1 Danfoss, Years: -31-JUL-04

1шт.

Seal Kit used only on a Series 1 motor that does not have a drain plug in the cover opposite the output shaft and a removable bolt on the spigot flange at the output shaft side

1шт.

11

87448320

HYDRAULIC MOTOR

white 76cc, Start Year: 01-AUG-04, Start Serial: CBJ0003074

1шт.

11

87447941

SEAL KIT

hydraulic motor white 76cc, Start Year: 01-AUG-04, Start Serial: CBJ0003074

1шт.

12

GD-516

HOSE CLIP

holder

1шт.

13

87432224

HYDRAULIC HOSE

1/2" x 128" fl, 1/2" fjic x 1/2" fjic

1шт.

Выбрано товаров: 19
