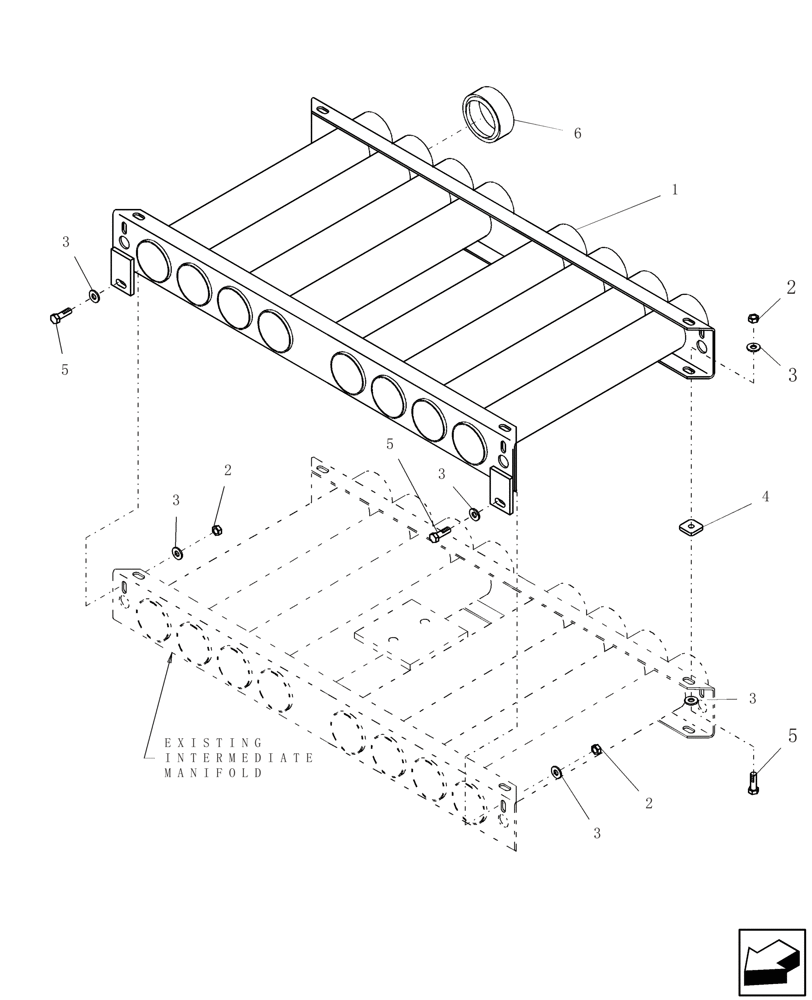

Запчасти Case IH ADX2230 (L.10.E[10]) - MULTI-SHOOT MANIFOLD L - Field Processing

1

GL-448

MANIFOLD

double/triple shoot

1шт.

2

281010

LOCK NUT,7/8"-14, GC

4шт.

3

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

4шт.

4

GH-241

SPACER

double shoot manifold

2шт.

5

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

4шт.

6

CA-145

SEAL

center/intermediate manifolds

8шт.
