Запчасти Case IH ADX2230 (L.10.D[09]) - DUAL FAN HYDRAULICS L - Field Processing

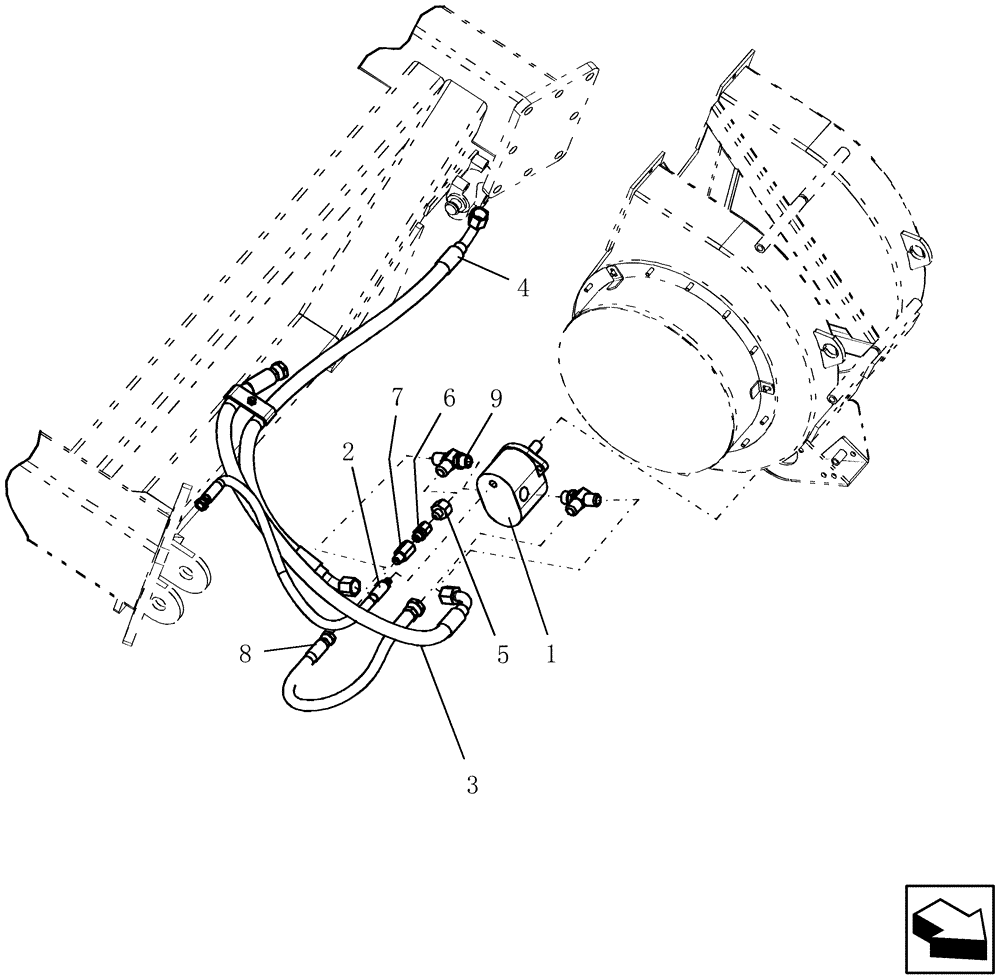

Схема запчастей Case IH ADX2230 - (L.10.D[09]) - DUAL FAN HYDRAULICS L - Field Processing
7
3
8
4
6
2
9
5
1

Артикул

Название

Примечание

Количество

1

9924

HYDRAULIC MOTOR

dual fan

1шт.

1

23827R

REMAN-HYDROSTAT PUMP

ADX2180, ADX3260 Both (6/01-11/06), ADX2230 (6/01-7/08), Reman for New P/N 9924

1шт.

1

23827C

CORE-HYDROSTAT PUMP

Return Number

1шт.

1

9490

SEAL

hydraulic motor Danfoss 10,12,19cc

1шт.

For motor 9924

1шт.

1

9489

SEAL KIT

Danfoss 10, 12, 19 cc motors

1шт.

For motor 9924

1шт.

1

23827

HYDRAULIC MOTOR

19 cc Danfoss phase ii, Years: -30-SEP-04, Serial Range: -CBJ0019039

1шт.

1

23827R

REMAN-HYDROSTAT PUMP

ADX2180, ADX3260 Both (6/01-11/06), ADX2230 (6/01-7/08), All Serial Range: -CBJ0019039

1шт.

1

23827C

CORE-HYDROSTAT PUMP

Return Number

1шт.

1

9490

SEAL

hydraulic motor Danfoss 10,12,19cc

1шт.

For motor 23827

1шт.

1

425297A1

SEAL KIT

Danfoss 10,12,19 cc

1шт.

For motor 23827

1шт.

1

9926

HYDRAULIC MOTOR

19cc ultra, Years: 01-OCT-04-01-MAY-09, Start Serial: CBJ001004

1шт.

1

87488819R

REMAN-HYD MOTOR

19cc, Years: 01-OCT-04-01-MAY-09, Start Serial: CBJ001004

1шт.

1

87488819C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

1

9972

SEAL

hydraulic motor Ultra 19cc

1шт.

For motor 9926

1шт.

1

51200121

SEAL KIT

hydraulic motor 19cc ultra

1шт.

For motor 9926

1шт.

2

21654

HYDRAULIC HOSE

3/8" x 33" fl, 3/8" morb 1/2" fjic

1шт.

3

21655

HYDRAULIC HOSE

3/4" x 34" fl, 3/4" fjic x 3/4" fjic

1шт.

4

87506443

HYDRAULIC HOSE,19.05mm ID x 1702mm L, SAE 100R17

3/4" x 67" fl, 3/4" fjic x 3/4" fjic

1шт.

5

87648720

REDUCER,3/4" - 16 JIC x 1-11/16" - 12 JIC

37º, 1 1/16"-12, Fem x 3/4"-16 Male

1шт.

6

412756A1

FITTING

1/2" mb 1/2" fjx

1шт.

7

412757A1

CHECK VALVE

fitting, hydraulic 1/2" mj 1/2" fb

1шт.

8

51200088

HYDRAULIC HOSE,0.50" ID x 24.00", SAE J517, SAE J516, SAE 100R17, ASTM B633 Class 2 Type 2

1/2" x 24" fl, 1/2" fjic x 3/4" fjic

1шт.

9

219604

TEE,1-1/16" - 12 ORB x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

2шт.

Выбрано товаров: 29
