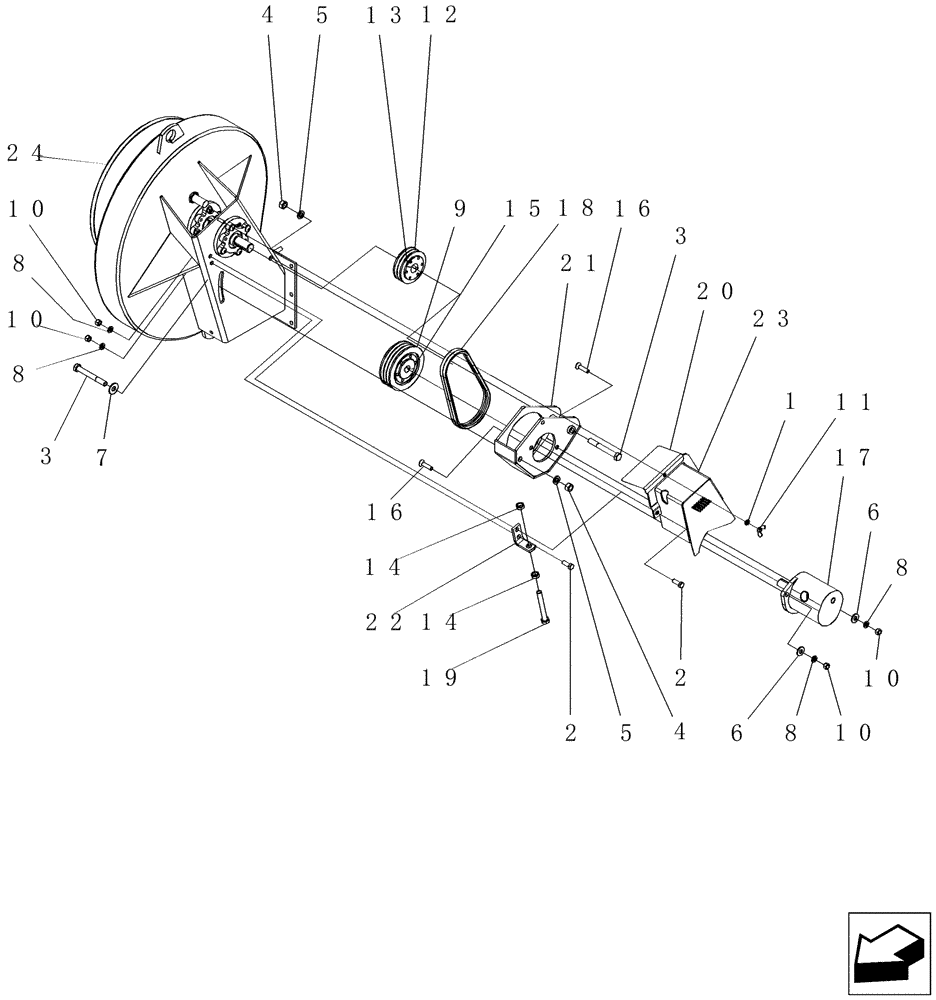

Запчасти Case IH ADX2230 (L.10.D[02]) - MOTOR MOUNT ASSEMBLY L - Field Processing

1

80681

LOCK WASHER,5/16"

1шт.

2

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

3

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

4

280431

NUT,1/2"-13, G5

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

6

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

7

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

1шт.

8

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

9

2261

SHEAVE

5" od - 3v 3 groove

1шт.

10

9628503

NUT,3/8"-16, G5

4шт.

11

80801

WING NUT

5/16"-18

1шт.

12

425023A1

SHEAVE

3 41/64" od - 3v 2 groove

1шт.

13

4361

BUSHING

sh 1" bore

1шт.

14

86632558

JAM NUT,Jam, 1/2"-13, G5

2шт.

15

8565

BUSHING

3/4" bore

1шт.

16

9920

SCREW,3/8" - 16 x 1.5, Gr 5

3/8" x 1 1/2" GR5 countersunk

2шт.

17

9926

HYDRAULIC MOTOR

19cc ultra, Years: 01-OCT-04-01-MAY-09

1шт.

Includes 9972 and 51200121

1шт.

17

87488819R

REMAN-HYD MOTOR

19cc, Years: 01-OCT-04-01-MAY-09

1шт.

17

87488819C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

18

21486

BELT

3vx265

2шт.

19

88965

BOLT,Hex, 1/2"-13 x 4", G5, Full Thd

1шт.

20

GH-478

SHIELD

fan shaft

1шт.

21

GI-351

BRACKET

mount, motor hydraulic belt drive

1шт.

22

GI-354

BRACKET

belt adjustment

1шт.

23

GI-355

GUARD

belt single fan

1шт.

24

GI-350A

FAN

assembly, single - belt drive

1шт.
