Запчасти Case IH ADX2230 (L.10.B[05]) - TANK LID ASSEMBLY L - Field Processing

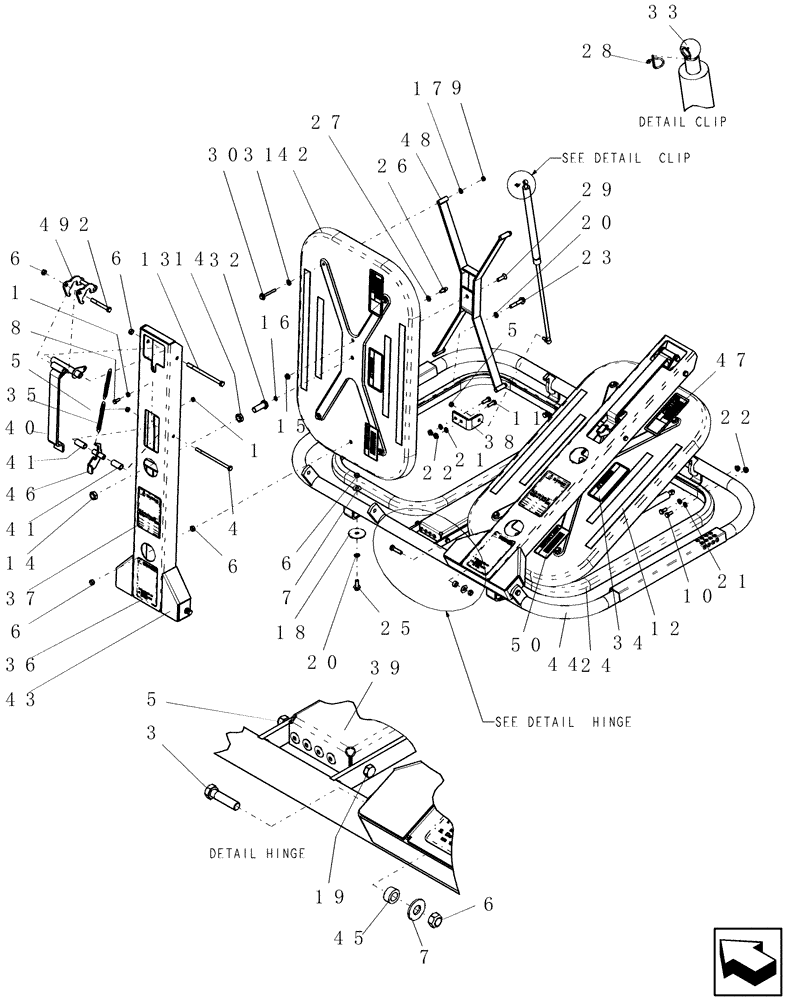

Схема запчастей Case IH ADX2230 - (L.10.B[05]) - TANK LID ASSEMBLY L - Field Processing
26
43
23
6
36
13
1
20
35
25
6
22
41
39
14
5
22
7
50
6
48
28
12
49
29
41
24
8
33
30
19
2
9
15
21
44
20
17
11
6
6
47
32
5
42
27
34
21
37
18
7
4
31
14
1
3
46
10
6
40
16
5
45
38

Артикул

Название

Примечание

Количество

1

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

2

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

3

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

4

280929

BOLT,Hex, 5/16" - 18 x 6", Gr 5

2шт.

5

281010

LOCK NUT,7/8"-14, GC

5шт.

6

88902

NUT,3/8"-16

16шт.

7

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

8шт.

8

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

9

280129

NUT,1/4"-20

8шт.

10

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

11

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

4шт.

12

GD-299

TAPE

friction

1шт.

Sold by the foot

1шт.

12

425478A1

ADHESIVE STRIP

anti-slip 60' roll - 1" wide

1шт.

13

280258

BOLT,Hex, 3/8" - 16 x 6", Gr 5

2шт.

14

86632556

JAM NUT,Jam, 5/8"-11, G5

4шт.

15

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

16

49861

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

2шт.

17

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

8шт.

18

8156

RUBBER WASHER

7/16" id x 2 1/8" od

4шт.

19

413-588

BOLT,Hex, 5/16" - 18 x 5-1/2", Gr 5

1шт.

20

412911A1

WASHER

poly 3/8" id

6шт.

21

9037

WASHER

poly 5/16" id

8шт.

22

9586

FLANGE NUT

flange 5/16" serrated

8шт.

23

5110

BOLT

3/8"-16 x 2, G2.5, Full Thread

2шт.

24

21679

RUBBER SEAL

hatch lid

2шт.

25

21881

SPECIAL BOLT

3/8" x 1" GR2 undercut head

4шт.

26

22186

STUD

10 mm ball

4шт.

27

22404

WASHER

sealing 5/16" ss neop

2шт.

28

9803210

SPRING

retainer 23/64" id x 31/64" long

4шт.

29

22820

SCREW

cap 3/8" x 1 1/4" fh hx-skt

2шт.

30

412923A1

BOLT

1/4"-20 x 2 1/4" G2

8шт.

31

412924A1

WASHER

poly 1/4" id

8шт.

32

412925A1

SPECIAL BOLT

standoff 5/8"-11 x 1 3/4" m/f

2шт.

33

22854

GAS STRUT

300 mm st/685 mm

2шт.

34

419999A1

DECAL

attention, do not open tank lid

2шт.

35

87506209

TENSION SPRING

1/16" wire x 1/2" od x 4" long

4шт.

36

GD-500.71

WARNING DECAL

Do Not Ride

2шт.

37

GD-500.79

WARNING DECAL

Stop Fan

2шт.

38

GI-432

BRACKET

gas shock

2шт.

39

GI-433

PLATFORM

flip up top

1шт.

40

GI-615

LATCH

handle

2шт.

41

GI-617

SPACER

lid arm

4шт.

42

GI-618

LID

tank

2шт.

Includes decals

1шт.

43

GI-756

ARM

lid

2шт.

44

GI-835

FRAME

support, tank lid

1шт.

45

GL-333

BUSHING

hatch lid arm pivot

4шт.

46

GL-335

CONTROL LEVER

lock, hatch

2шт.

47

GL-700.20

CAUTION DECAL

lid raises

1шт.

48

GM-286

BRACKET

Lid

2шт.

49

GM-433

LATCH

jaw

2шт.

50

VF-760.10

DECAL

air leaks affect

2шт.

Выбрано товаров: 53
