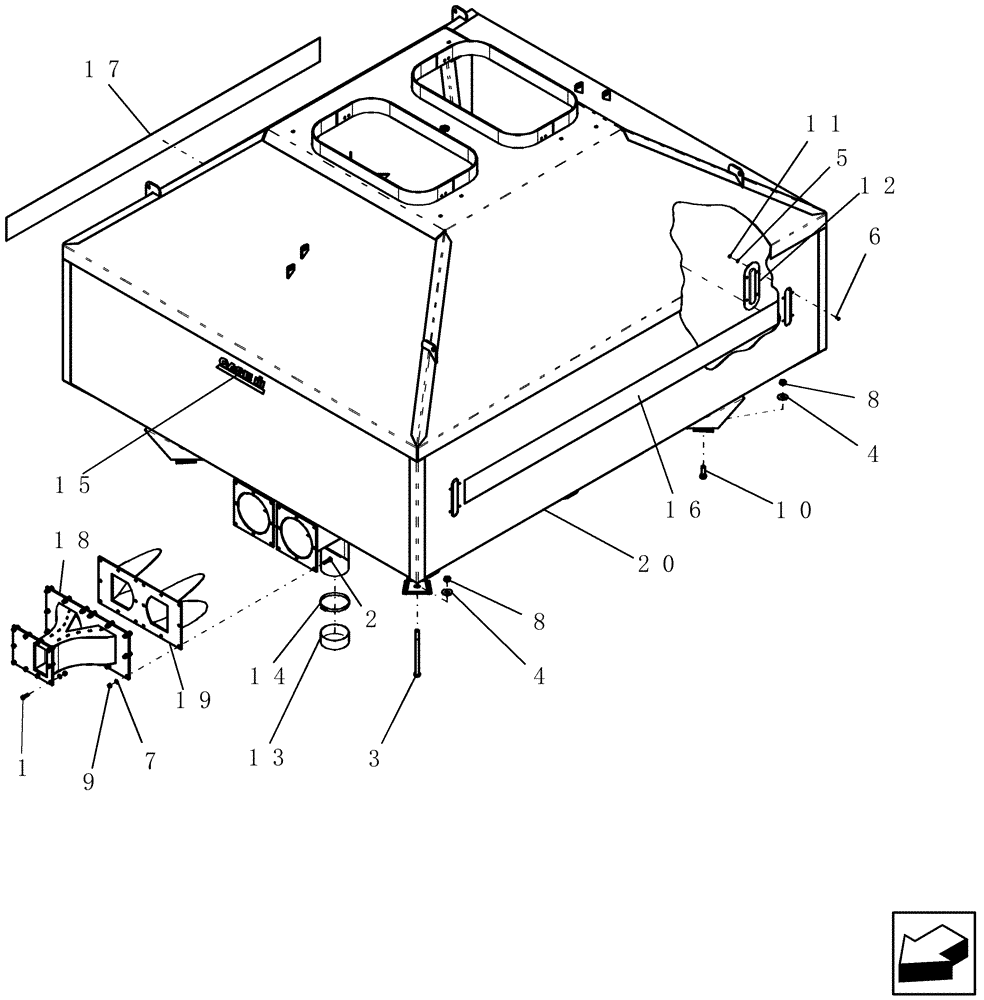

Запчасти Case IH ADX2230 (L.10.B[03]) - TANK ASSEMBLY L - Field Processing

1

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

10шт.

2

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

16шт.

3

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

4

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

2шт.

5

280299

WASHER,0.19" ID x 0.44" OD x 0.05" Thk

1шт.

6

412750A1

SCREW,Sl, #8 - 32 x 3/4"

mch #8-32 x 3/4" ph sq-slt

1шт.

7

80680

LOCK WASHER,3/8 0.381 CST ZND

26шт.

8

85700693

NUT,5/8" - 11, Gr C

2шт.

9

9628503

NUT,3/8"-16, G5

26шт.

10

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

11

231-14408

NUT,#8-32, GB

1шт.

12

5186

SIGHTGLASS

lexan view, Years: -01-JUN-02

2шт.

13

412755A1

CAP

vinyl 5" x 2 1/2"

2шт.

14

87019670

HOSE CLAMP,#80, 4.62/5.50 Type F Worm

2шт.

15

192849A2

DECAL

case ih - 8mm logo

1шт.

16

351900A1

DECAL

ADX2180 LH

1шт.

16

351902A1

DECAL

ADX2230 LH

1шт.

16

412954A1

DECAL

ADX3260 strip LH rear

1шт.

16

425566A1

DECAL

ADX2180 LH Concord

1шт.

16

425568A1

DECAL

ADX2230 LH Concord

1шт.

16

425575A1

DECAL

ADX3260 strip LH rear Concord

1шт.

17

351901A1

DECAL

ADX2180 RH

1шт.

17

351903A1

DECAL

ADX2230 RH

1шт.

17

412952A1

DECAL

ADX3260 strip RH rear

1шт.

17

425567A1

DECAL

ADX2180 RH Concord

1шт.

17

425569A1

DECAL

ADX2230 RH Concord

1шт.

17

425574A1

DECAL

ADX3260 strip RH rear Concord

1шт.

18

GI-345

CHAMBER

inlet plenum, single fan

1шт.

19

GI-346

INSERT

transition, single fan

1шт.

20

GI-417FR

TANK

230 bushel

1шт.

20

GI-416FR

TANK

180 bushel

1шт.

100

51200080

WARNING DECAL

No Step

1шт.

Not Shown

1шт.
