Запчасти Case IH ADX2230 (H.10.B[02]) - TOW BEHIND FIELD HITCH (ASN CBJ0004434) F - Frame Positioning

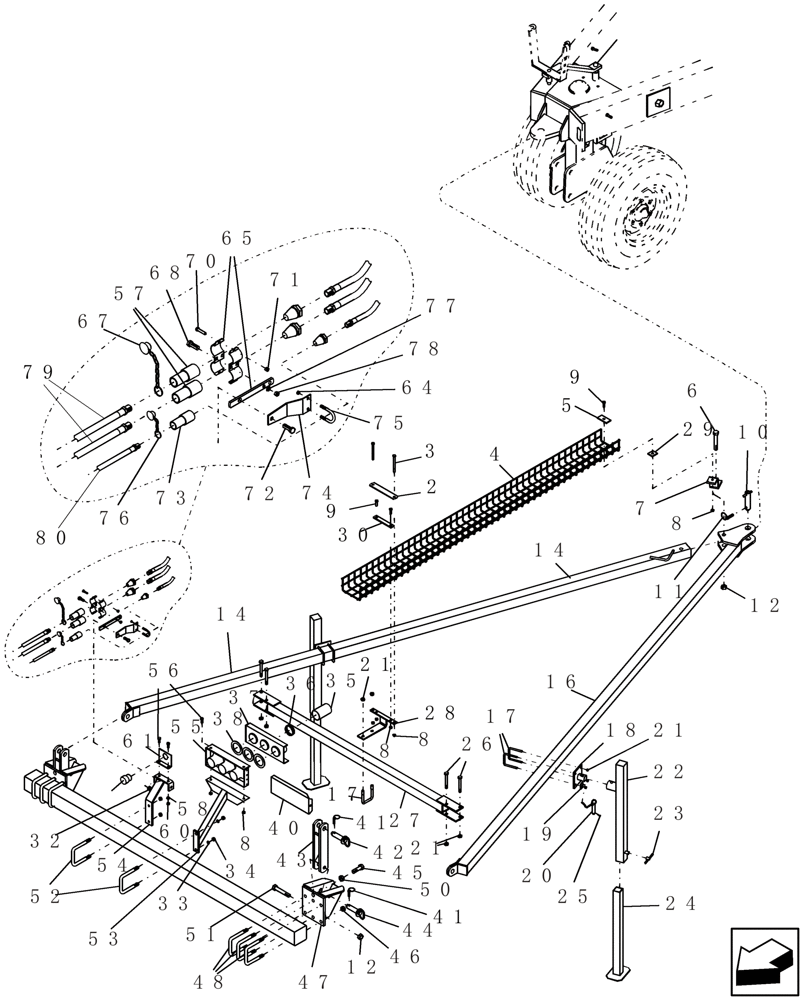

Схема запчастей Case IH ADX2230 - (H.10.B[02]) - TOW BEHIND FIELD HITCH (ASN CBJ0004434) F - Frame Positioning
65
53
79
5
21
46
8
41
50
72
58
44
26
77
4
56
21
35
29
76
28
34
61
19
68
42
36
8
48
37
74
43
8
54
55
41
7
21
38
32
51
3
17
71
12
64
67
30
11
33
45
60
17
78
24
70
12
75
8
18
10
47
22
20
27
57
6
25
40
73
80
14
14
2
9
23
16
9
52

Артикул

Название

Примечание

Количество

1

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

2

87501237

CROSSBAR

mount, top

1шт.

3

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3шт.

4

RF-240

TRAY

hose

1шт.

5

87501490

CLAMP

hose tray

1шт.

6

88421

BOLT,Hex, 3/4" - 10 x 5", Gr 5

1шт.

7

87501450

BRACKET

mount, rear hose tray

1шт.

8

88902

NUT,3/8"-16

3шт.

9

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3шт.

10

GE-293A

HITCH PIN

draw assembly

1шт.

Includes GE-293, 6425 and 86544809

1шт.

Includes linch pin and roll pin

1шт.

11

6425

LINCH PIN

7/16" x 1 3/8"

1шт.

12

280375

NUT,3/4"-10, GC

1шт.

14

GL-731

RAIL ASSY.

hitch RH

1шт.

16

GH-745

HITCH

rail LH

1шт.

17

1344524C1

U-BOLT

us 1/2" x 2 9/18" w x 3 1/2" d 1" thread

1шт.

18

GH-528

MOUNTING PLATE

hitch support

1шт.

19

GH-530

BRACKET

mount, fan shield chain

1шт.

20

412752A1

PIN

and chain assembly jack mount

1шт.

21

86992215

LOCK NUT,1/2"-13, GC

1шт.

22

GE-359

STAND

field hitch - upper

1шт.

23

GE-193A

HANDLE

height adjustment

1шт.

Includes GE-193 and 6270

1шт.

24

GE-358

STAND

field hitch - lower

1шт.

25

80755

COTTER PIN,1/8" OD x 1" L

1шт.

26

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

27

GH-525

SUPPORT

cross field hitch

1шт.

28

87501455

BRACKET

mount, hose tray

1шт.

29

87501485

SPACER

hose tray

1шт.

30

87501453

CLAMP

front hose tray

1шт.

31

88604

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

1шт.

32

280980

NUT,7/16"-14, GC

1шт.

33

81547

LOCK WASHER,7/16"

1шт.

34

280717

NUT,7/16"-14, G5

1шт.

35

86992286

HOSE,2.50" ID x 100.00'

Spiral PVC Black Order Multiples of 100 Feet

1шт.

36

214-1444

HOSE CLAMP,58.6mm - 82.5mm

1шт.

37

GD-673

FITTING

hose connector 2 1/2"

1шт.

38

6177

OIL SEAL

quick connect 2 1/2" id

1шт.

40

GD-254

COVER

plate hose connect

1шт.

41

6425

LINCH PIN

7/16" x 1 3/8"

1шт.

42

412768A1

HITCH PIN

1" x 2 3/4" usable

1шт.

Includes 6425

1шт.

43

GE-197

LINKAGE,Uses 1 each of 1" and 3/4" pins

mount, pivot link

1шт.

44

412769A1

HITCH PIN

1" x 3 1/2" usable

1шт.

Includes 6425

1шт.

45

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

1шт.

46

85700693

NUT,5/8" - 11, Gr C

1шт.

46

280375

NUT,3/4"-10, GC

1шт.

47

GE-196.2

BRACKET

mount

1шт.

48

3951

U-BOLT

us 5/8"-11 4 1/16" w 5 3/8" d GR5

1шт.

48

7818

U-BOLT

us 3/4"-10 4 1/32" w 5 5/8" d GR5

1шт.

50

86632557

JAM NUT,Jam, 3/4"-10, G5

1шт.

51

88007

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

1шт.

52

5089

U-BOLT

us 7/16"-14 4 1/8" w 5 3/8" d GR2

1шт.

53

GD-671

SUPPORT

connector

1шт.

54

GE-186

SUPPORT

hydraulic couplers & wiring harness bracket

1шт.

55

GD-672A

HOLDER

quick connect 2 1/2" female

1шт.

Includes two 88011, four 87016560, two 5625 and four 4630

1шт.

56

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

57

6935

COUPLING, QUICK, FEM

3/4"

1шт.

58

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

60

9628503

NUT,3/8"-16, G5

1шт.

61

GH-139

BRACKET

plug support

1шт.

64

281010

LOCK NUT,7/8"-14, GC

1шт.

65

GE-202

CLAMP

for two 3/4" couplers

1шт.

67

6934

PLUG

dust, pioneer coupler - 3/4"

1шт.

68

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

70

3236

SELF-TAP SCREW

1/4"-20 x 1 1/4" oh pi plt

1шт.

71

280129

NUT,1/4"-20

1шт.

72

9706729

BOLT,Hex, 7/16" - 14 x 1", Gr 5, Full Thd

1шт.

73

1994568C1

COUPLING, QUICK, FEM

1/2" fpt

1шт.

74

GH-601

COUPLING

hydraulic mount third line

1шт.

75

1569

U-BOLT

ur 5/16" x 1 3/8" w x 2 1/16" d 3/4" thread

1шт.

76

8679

PLUG

dust, pioneer coupler - 3/8"

1шт.

77

80681

LOCK WASHER,5/16"

1шт.

78

9635082

NUT,5/16" - 18, Gr 5

1шт.

79

21560

HYDRAULIC HOSE,19.05mm ID x 12319mm L, SAE 100R17

3/4" x 485" fl, 1/2" mpt x 3/4" mpt

2шт.

For the STX / TJ tractors

1шт.

80

87500095

HYDRAULIC HOSE,19mm ID x 12319mm L

3/4" x 485" fl, 1/2" mpt x 1/2" mpt

1шт.

Fan third line

1шт.

100

GE-518K

HOSE KIT

hose - 2 1/2"

1шт.

Includes splice tube GE-518 and two 214-1444 hose clamps

1шт.

Not Shown

1шт.

Выбрано товаров: 84
