Запчасти Case IH ADX2230 (A.10.A[07]) - MAIN FRAME HYDRAULICS - MECHANICAL DRIVE - TOW BETWEEN A - Distribution Systems

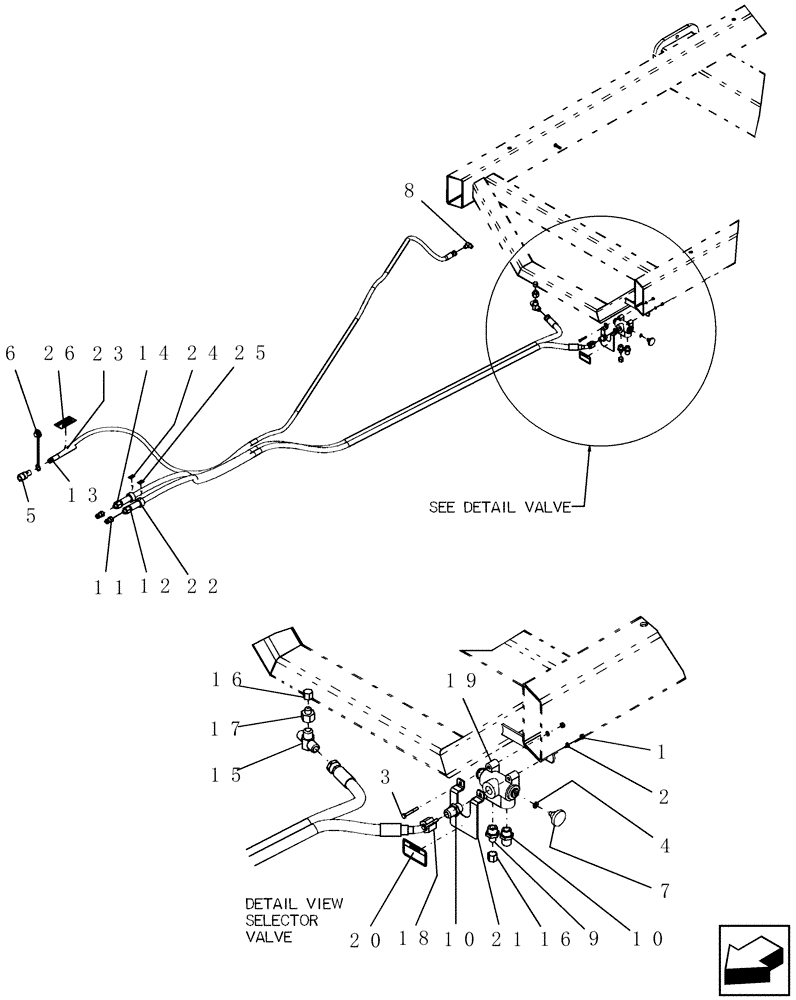

Схема запчастей Case IH ADX2230 - (A.10.A[07]) - MAIN FRAME HYDRAULICS - MECHANICAL DRIVE - TOW BETWEEN A - Distribution Systems
23
26
7
9
16
20
13
22
2
3
25
1
17
10
5
14
24
21
15
10
19
6
8
16
12
18
4
11

Артикул

Название

Примечание

Количество

1

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

2

80682

LOCK WASHER,1/4"

2шт.

3

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

4

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

5

1994568C1

COUPLING, QUICK, FEM

1/2" fpt

1шт.

5

85999239

QUICK MALE COUPLING,3/8" x 3/4" - 16 ORB

stl 3/8"

1шт.

For the STX / TJ tractors

1шт.

6

86592083

DUST CAP

pioneer coupler - 1/2"

1шт.

Not Shown

1шт.

7

6082

KNOB

valve 3/8"-16 stud

1шт.

8

216791

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1шт.

9

87329794

FITTING

3/4" mb x 1/2" mj

1шт.

10

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

2шт.

11

9412

QUICK MALE COUPLING

1/2"

2шт.

Tow Between Only

1шт.

12

21651

HYDRAULIC HOSE

3/4" x 170" fl, 3/4" mpt x 3/4" fjic

1шт.

Tow Between Only

1шт.

13

51200050

HYDRAULIC HOSE,0.50" ID x 168.00", SAE 100R17, SAE J517, SAE J516, ASTM B633 Class 2 Type 2

1/2" x 168" fl, 1/2" mpt x 1/2" fjic

1шт.

14

21668

REDUCER FITTING,1/2" - 14 Male NPT x 3/4" - 14 Female NPT

hydraulic 1/2" mpt x 3/4" fpt

2шт.

Tow Between Only

1шт.

15

80015694

TEE,1 1/16"-12 37 Degree

1шт.

16

262159

CAP,3/4" - 16 Fem JIC

2шт.

17

87648720

REDUCER,3/4" - 16 JIC x 1-11/16" - 12 JIC

37º, 1 1/16"-12, Fem x 3/4"-16 Male

1шт.

18

51200062

HYDRAULIC HOSE

3/4" x 158" fl, 3/4" fjic x 3/4" mpt

1шт.

19

87506270

VALVE

two way selector

1шт.

19

21905

SEAL KIT

s75 selector valve

1шт.

20

GD-500.07

DECAL

attention hydraulic flow

1шт.

21

GI-710

PLATE

decal, fan auger control

1шт.

22

GL-373

COVER

hydraulic hose label - 1 1/2"

2шт.

23

GL-375

COVER

label 1" case drain hyd

1шт.

24

GL-700.32

DECAL

fan pressure

1шт.

25

GL-700.33

DECAL

fan return

1шт.

26

GL-700.42

DECAL

drain

1шт.

27

51200152

SEAL KIT

for S-50 Gresen selector valve

1шт.

Выбрано товаров: 34
