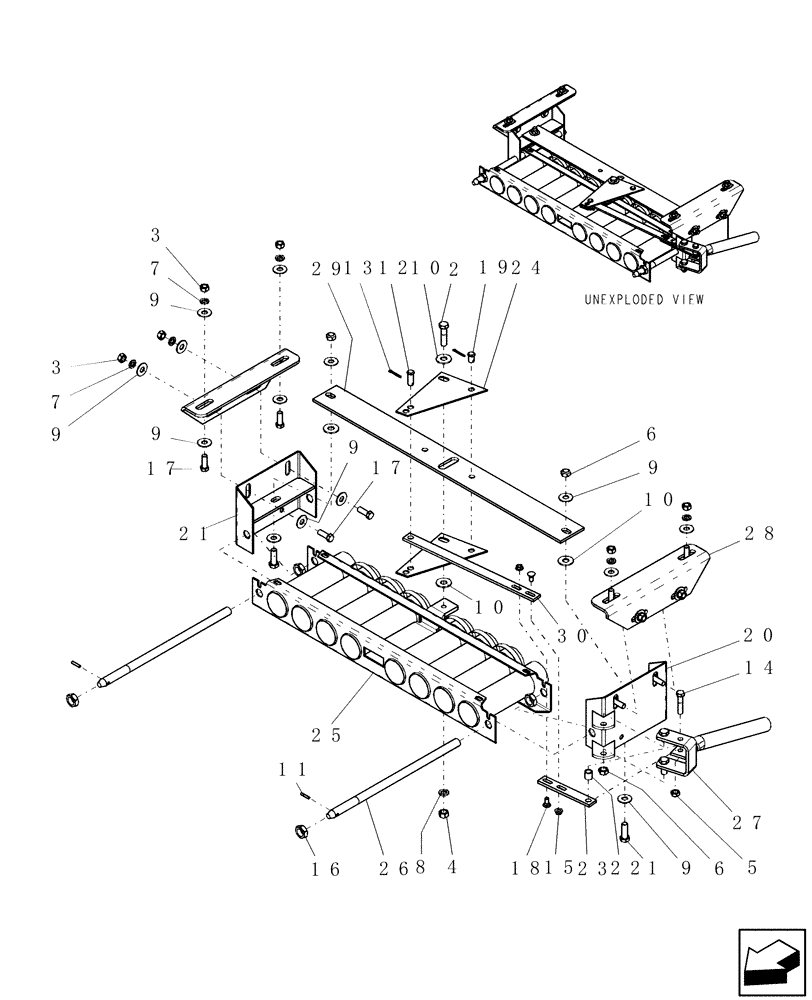

Запчасти Case IH ADX2230 (F.10.D[11]) - 3 - POINT HITCH INTERMEDIATE MANIFOLD F - Frame Positioning

1

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

2

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

3

280717

NUT,7/16"-14, G5

8шт.

4

280431

NUT,1/2"-13, G5

1шт.

5

280980

NUT,7/16"-14, GC

1шт.

6

86992215

LOCK NUT,1/2"-13, GC

3шт.

7

81547

LOCK WASHER,7/16"

8шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

9

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

20шт.

10

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

11

118827

PIN,4.76mm OD x 25.4mm L, Slotted

2шт.

12

1841

CLEVIS PIN

1/2" x 1 1/4"

1шт.

13

80755

COTTER PIN,1/8" OD x 1" L

2шт.

14

280117

BOLT,Hex, 7/16" - 14 x 2", Gr 5

1шт.

15

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

16

86632557

JAM NUT,Jam, 3/4"-10, G5

4шт.

17

9627887

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5, Full Thd

8шт.

18

51200045

CARRIAGE BOLT

5/16"-18 x 3/4", G5

2шт.

19

GH-145

CLEVIS PIN

1/2" x 11/16"

1шт.

20

GH-167

BRACKET

mount, LH

1шт.

21

GH-168

BRACKET

intermediate manifold mount RH

1шт.

22

GH-250

SPACER

actuator arm

1шт.

23

GH-251

ARM

actuator short

1шт.

24

GH-253

PLATE

actuator intermediate manifold

2шт.

25

GI-216

MANIFOLD

intermediate, 3 pt hitch

1шт.

26

GI-226

GUIDE PIN

manifold

2шт.

27

GI-242

HANDLE

intermediate manifold

1шт.

28

GI-364

BRACKET

mount, intermediate manifold - tow between

2шт.

Tow Between Only

1шт.

29

GL-449

PLATE

crossmember, intermediate manifold

1шт.

30

GL-450

POWER ARM

long

1шт.
