Запчасти Case IH ADX2230 (E.30.A[05]) - TANK PLATFORM E - Body and Structure

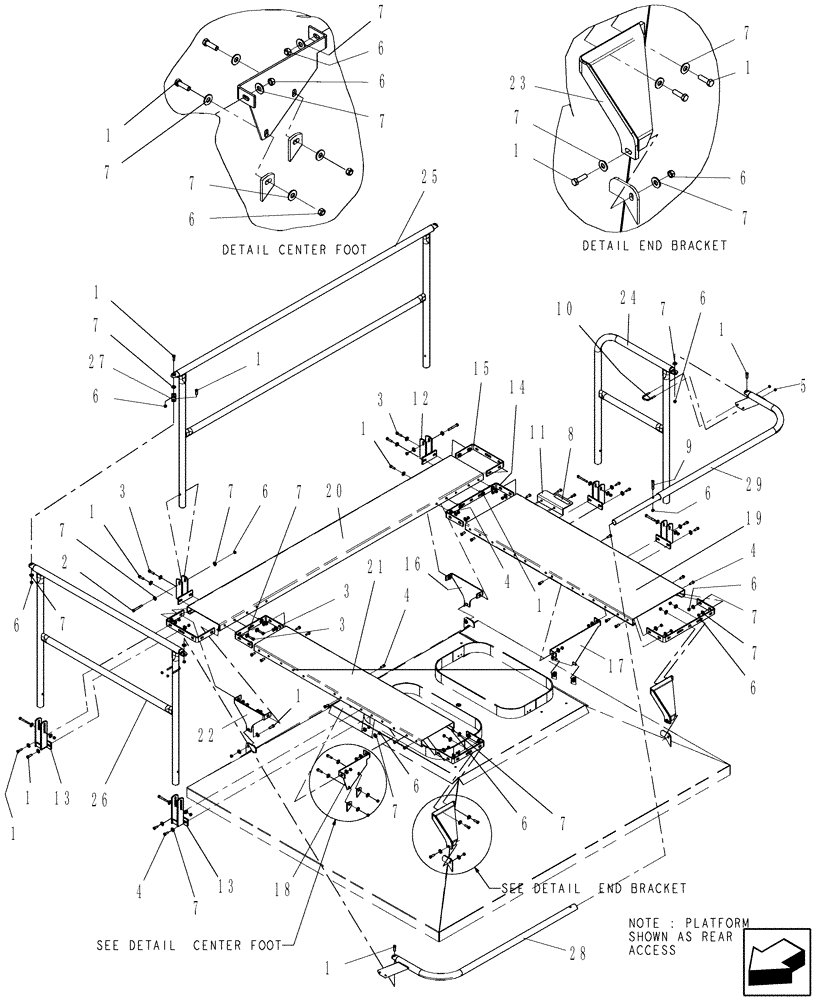

Схема запчастей Case IH ADX2230 - (E.30.A[05]) - TANK PLATFORM E - Body and Structure
7
3
7
17
7
7
7
1
1
4
20
2
6
1
27
6
4
12
16
22
7
6
7
7
7
1
3
21
23
6
3
1
14
7
7
7
19
1
1
7
3
7
1
6
6
7
1
6
10
29
1
5
24
7
6
6
4
8
6
25
13
18
1
6
15
11
1
6
28
7
26
1
6
4
9
7
13

Артикул

Название

Примечание

Количество

1

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

24шт.

2

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

6шт.

3

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

5шт.

4

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

27шт.

5

281010

LOCK NUT,7/8"-14, GC

4шт.

6

88902

NUT,3/8"-16

63шт.

7

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

100шт.

8

425480A1

ADHESIVE STRIP

anti-slip 1" wide x 5" long

1шт.

51" strip, cut from 60' bulk roll marked 425478A1

1шт.

8

425478A1

ADHESIVE STRIP

anti-slip 60' roll - 1" wide

1шт.

9

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

10

6652

U-BOLT

ur 5/16"-18 x 1 3/4" w 2 3/4" d 1" thread

2шт.

11

GI-619

BRACKET

safety step

1шт.

12

GI-801

BRACKET

mount, railing

4шт.

13

GI-802

BRACKET

mount, end railing

2шт.

14

GI-803

CAP

end wide grating

2шт.

15

GI-804

CAP

end, narrow grating

4шт.

16

GI-806

FOOT

rear narrow grating - side

1шт.

17

GI-807

FOOT

center wide grating

1шт.

18

GI-808

FOOT

narrow grating - center

1шт.

19

GI-810

GRATING

rear platform

1шт.

20

GI-811

GRATING

platform side

1шт.

21

GI-812

GRATING

front platform

1шт.

22

GI-813

FOOT

front narrow grating - side

1шт.

23

GI-818

BRACKET

end, step grating

2шт.

24

84340890

GRAB RAIL

front

1шт.

25

84340888

GRAB RAIL

side

1шт.

26

84340893

GRAB RAIL

back

1шт.

27

GI-827

PLATE

connector, rail corner

1шт.

28

GI-833

GUARD

railing, auger - front

1шт.

29

GI-834

GUARD

railing, auger - rear

1шт.

Выбрано товаров: 31
