Запчасти Case IH ADX2230 (A.10.A[04]) - VR BATTERY AND SWITCHES A - Distribution Systems

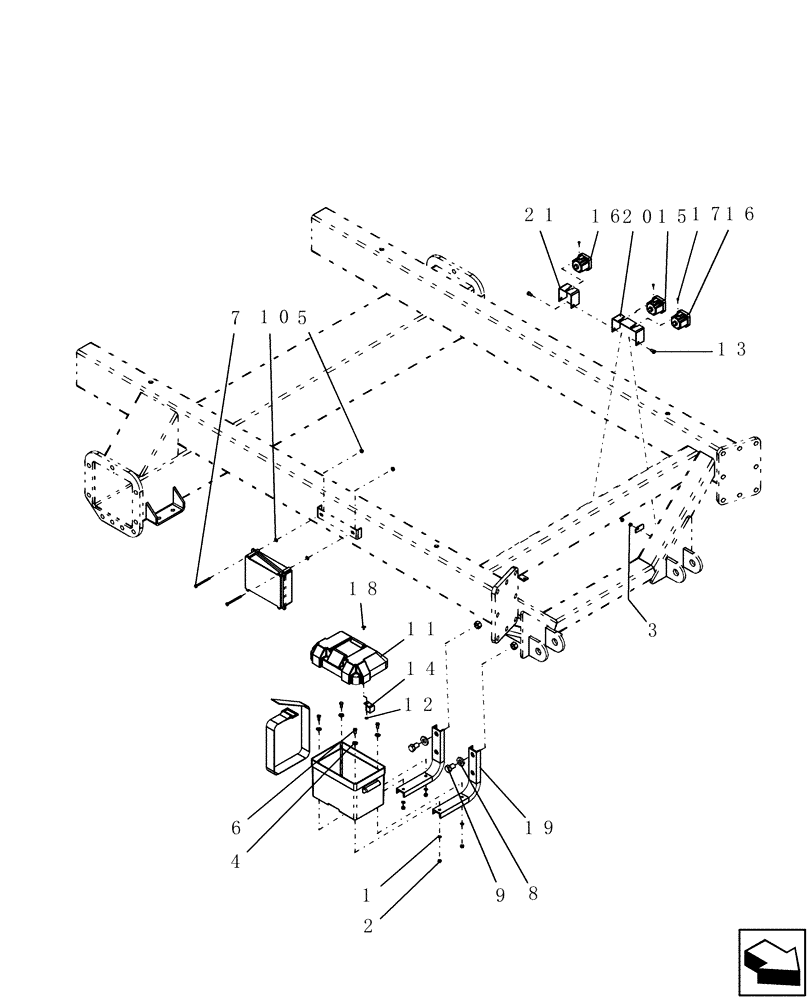

Схема запчастей Case IH ADX2230 - (A.10.A[04]) - VR BATTERY AND SWITCHES A - Distribution Systems
15
6
10
7
1
9
16
17
11
4
8
13
18
2
5
3
16
12
14
20
21
19

Артикул

Название

Примечание

Количество

1

80681

LOCK WASHER,5/16"

4шт.

2

9635082

NUT,5/16" - 18, Gr 5

4шт.

3

281010

LOCK NUT,7/8"-14, GC

2шт.

4

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

4шт.

5

280129

NUT,1/4"-20

2шт.

6

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

7

280492

BOLT,Hex, 1/4" - 20 x 3 1/2", Gr 5

2шт.

8

3928

WASHER

3/4" id 1 5/8" 1/4" pln

2шт.

9

88691

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 5, Full Thd

2шт.

10

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

11

51200136

BATTERY BOX

with strap and lid

1шт.

11

B2472W

WET BATTERY

US Only - Not Illustrated

1шт.

11

CC2472W

WET BATTERY

Canada Only - Not Illustrated

1шт.

12

9527

WASHER

#10 ss

1шт.

13

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

14

9966

RELAY

electrical, 12 volt

1шт.

15

84307649

SWITCH

Calibration

1шт.

16

13924

SWITCH

meter on/off

2шт.

15a

87508155

DECAL

Front Panel Calibration Switch

1шт.

17

21304

SELF-TAP SCREW

#6-32 x 5/16"

3шт.

18

51200085

RIVET

pop 3/16" x 7/16"

1шт.

19

GI-206

TRAY

mount, battery box

2шт.

20

GI-308

BRACKET

mount, switch unit - double

1шт.

21

GI-309

BRACKET

mount, switch unit - single

1шт.

Выбрано товаров: 24
