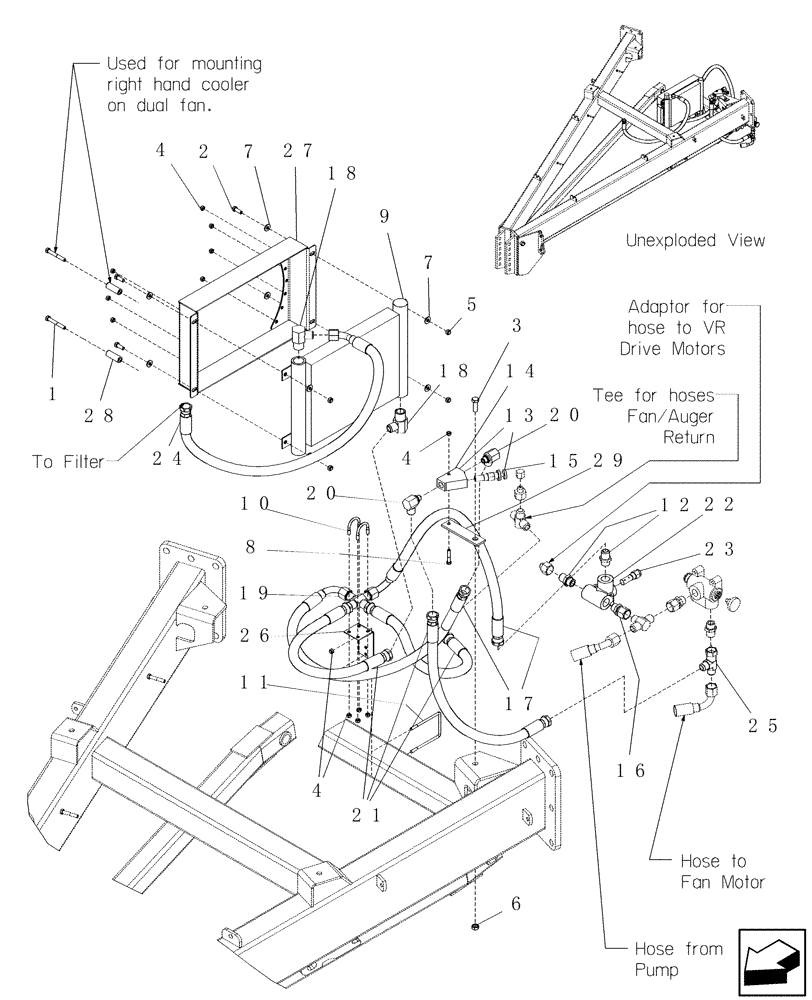

Запчасти Case IH ADX2180 (B.90.A[04]) - PTO OPTION - COOLER MOUNT VR B - Power Production

1

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

2шт.

2

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

3

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

1шт.

4

281010

LOCK NUT,7/8"-14, GC

14шт.

5

88902

NUT,3/8"-16

4шт.

6

86992215

LOCK NUT,1/2"-13, GC

1шт.

7

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

8шт.

8

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

1шт.

9

6155

OIL COOLER

steel 12" x 15"

1шт.

10

7938

U-BOLT

ur 5/16"-18 x 1 3/8" w x 1 5/8" d

2шт.

11

8474

U-BOLT

us 5/16" x 3 1/16" w x 4 3/4" d 1" thread

1шт.

12

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

3шт.

13

425429A1

VALVE

pressure regulating orb

1шт.

14

1336645C1

VALVE

body press regulating

1шт.

15

21426

CARTRIDGE

hyd valve pressure reg

1шт.

16

22060

FITTING

hydraulic - straight adapter 3/4" morb x 3/4" fjic

2шт.

17

22112

HYDRAULIC HOSE

3/4" x 46" fl, 3/4" fjic x 3/4" fjic

2шт.

18

218-1046

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

2шт.

19

218-656

4 WAY CONNECTION,1 1/16"-12, 37 Degree

1шт.

20

100333

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

2шт.

21

22784

HYDRAULIC HOSE,0.75" ID x 28.00", SAE J517, SAE J516, SAE J846, SAE J1273

3/4" x 28" fl, 3/4" fjic x 3/4" fjic

3шт.

22

22788

VALVE PRESSURE RELIE

1шт.

23

22790

CARTRIDGE

hyd valve relief 2250

1шт.

24

51200875

HYDRAULIC HOSE

3/4" x 46" fl, 3/4" fjic x 3/4" fjic

1шт.

25

265978

TEE,1-1/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

26

GK-206

BRACKET

mount, pressure regulator valve

1шт.

27

GK-225

BRACKET

mount, oil cooler

1шт.

28

GK-226

SPACER

2" long

2шт.

29

GK-232

BRACKET

mount, pressure regulator valve

1шт.
