Запчасти Case IH ADX2180 (L.40.D[03]) - AUGER TUBE ASSEMBLY (BSN CBJ0005300) L - Field Processing

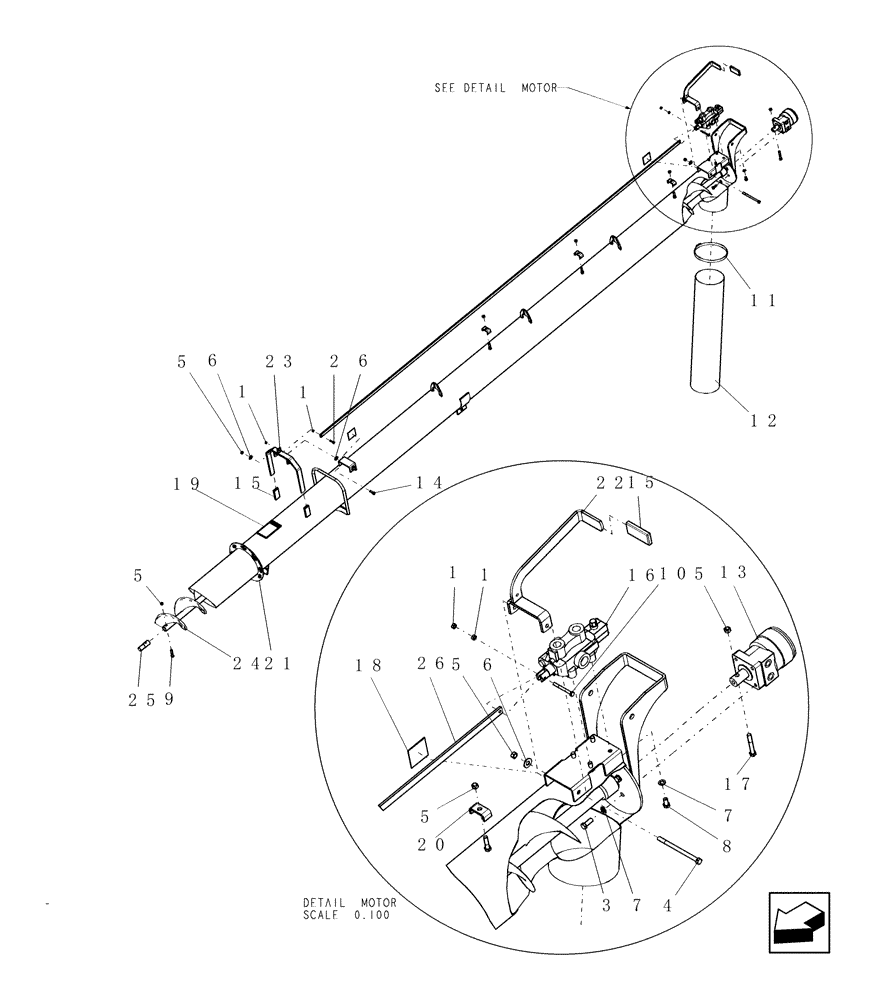

Схема запчастей Case IH ADX2180 - (L.40.D[03]) - AUGER TUBE ASSEMBLY (BSN CBJ0005300) L - Field Processing
7
18
5
2
6
15
14
5
3
24
15
1
13
7
25
19
10
5
1
20
1
6
12
11
9
8
5
5
6
23
4
1
26
17
22
21
16

Артикул

Название

Примечание

Количество

1

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

2

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

3

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

4

20304

BOLT,Hex, 3/8" - 16 x 5 1/2", Gr 5

1шт.

5

88902

NUT,3/8"-16

8шт.

6

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

5шт.

7

80680

LOCK WASHER,3/8 0.381 CST ZND

8шт.

8

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

4шт.

9

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

10

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

1шт.

11

5171

HOSE CLAMP

#128 type f 6 1/2" to 8 1/2"

1шт.

12

419995A1

HOSE

7" x 32" auger discharge

1шт.

13

425041A1

HYDRAULIC MOTOR

Danfoss series 0

1шт.

Series 0 motor with a drain plug in the cover opposite the output shaft and a removable bolt on the spigot flange at the output shaft side

1шт.

13

425042A1

SEAL KIT

hydraulic motor Danfoss series 0

1шт.

Seal Kit used only on a Series 0 motor, part # 8214, with a drain plug in the cover opposite the output shaft and a removable bolt on the spigot flange at the output shaft side

1шт.

13

22596

HYDRAULIC MOTOR

Danfoss series 1

1шт.

22596R

REMAN-HYD MOTOR

ADX2180, ADX3260, Both (6/01-11/06), ADX2230 (6/01-7/08), All (BSN CBJ0005300) Series 1

1шт.

22596C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

13

51200084

SEAL KIT

hydraulic motor series 1 Danfoss

1шт.

Seal Kit used only on a Series 1 motor that does not have a drain plug in the cover opposite the output shaft and a removable bolt on the spigot flange at the output shaft side

1шт.

13

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

14

9058

BOLT

3/8"-16 x 1 1/4", G12

2шт.

15

9460

CAP

1/4" x 1 1/4" x 3"

3шт.

16

22429\C

VALVE

410 Gresen, 2000 psi relief

1шт.

16

425024A1

SEAL KIT

for Gresen spool valve

1шт.

17

280259

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

1шт.

18

GD-500.38

DECAL

auger direction

2шт.

19

GD-500.80

DECAL

danger auger flighting

1шт.

20

GD-516

HOSE CLIP

holder

3шт.

21

GI-370

TUBE,195.562" L

auger 8"

1шт.

22

GI-371

ARM

valve actuater auger

1шт.

23

GI-372

ARM

actuater, auger control

1шт.

24a

GI-588

AUGER FLIGHT

cupped 7 5/16" x 200" long

1шт.

24b

51200114

RUBBER FLIGHT

7" cup

1шт.

Refer to Figure L.40.D[08] for component parts

1шт.

25

GI-551

SHAFT

end stub, flighting

1шт.

26

GI-559

ACTUATOR

link, auger

1шт.

Выбрано товаров: 38
