Запчасти Case IH ADX2180 (L.10.E[07]) - TWO OUTLET VALVE GH-522A L - Field Processing

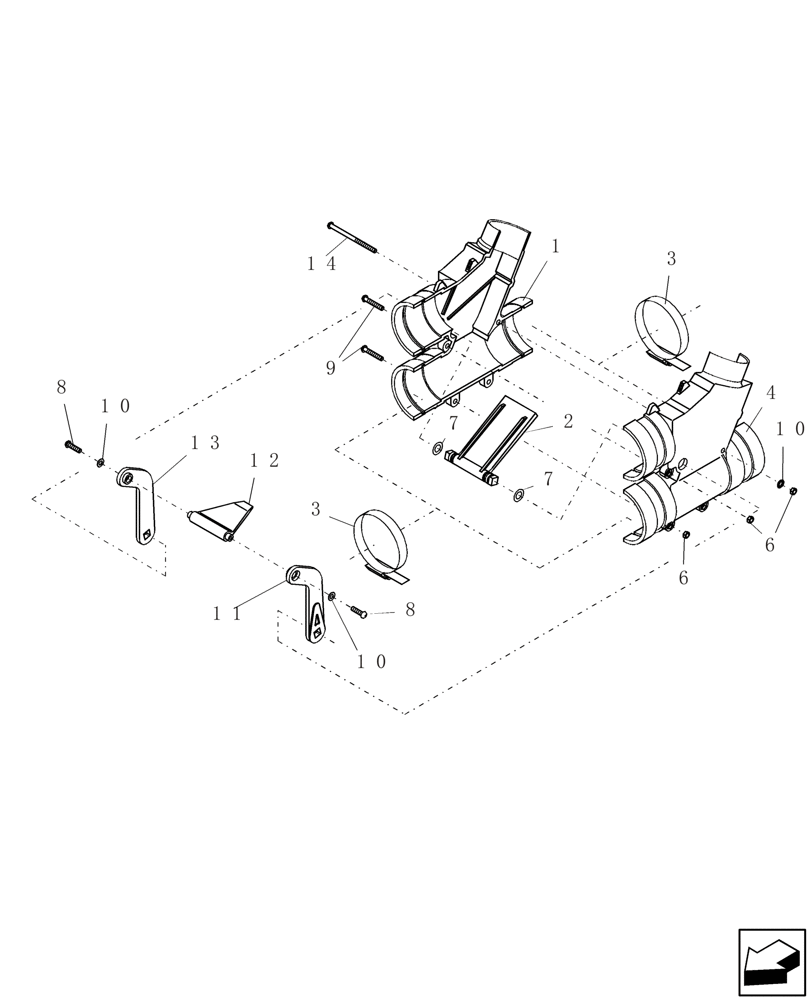

Схема запчастей Case IH ADX2180 - (L.10.E[07]) - TWO OUTLET VALVE GH-522A L - Field Processing
9
7
13
6
4
14
3
8
7
6
2
3
1
11
12
10
10
10
8

Артикул

Название

Примечание

Количество

0

GH-522A

VALVE

single/double shoot, Years: -31-MAR-03

1шт.

1

7218

PANEL

manifold side single/double RH

1шт.

2

GH-423

FLAP

uhmw assy

1шт.

Includes 7223 and 23482

1шт.

2

7223

FLAP

manifold

1шт.

2

51200090

FLAP

adhesive wear strip uhmw 3 5/16" x 1 1/4"

1шт.

3

214-1444

HOSE CLAMP,58.6mm - 82.5mm

2шт.

4

7217

PANEL

manifold side single/double LH

1шт.

6

425091A1

NUT,#10-24 Stainless

3шт.

7

49861

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

2шт.

8

9528

HEX SOC SCREW,Sl Rnd Hd, #10 - 32 x 0.50", SST

machine #10-32 x 1/2" rh skt-slt ss

2шт.

9

425092A1

SCREW,Pan Hd, #10-24 x 1", Sq Slot, Stainless

2шт.

10

9527

WASHER

#10 ss

3шт.

11

7298

HANDLE

double shoot valve LH

1шт.

12

GH-557

LOCK

single/double shoot valve

1шт.

13

7299

HANDLE

double shoot valve RH

1шт.

14

9524

SCREW,Pan Hd, #10 - 24 x 2.50", Sl Sq Drive

mch #10-24" x 2 1/2" ph sq-slt ss

1шт.

100

GL-700.44

DECAL

two outlet valve b

1шт.

Not Shown

1шт.

Выбрано товаров: 19
