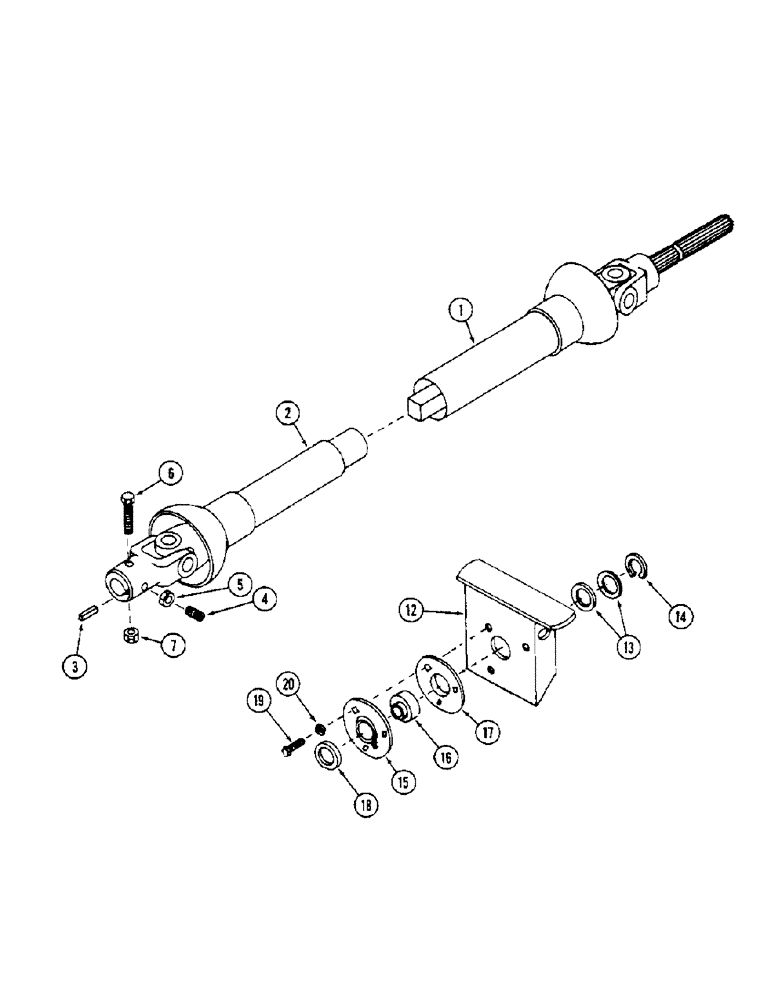

Запчасти Case IH ST54 (50) - DRIVE SHAFT

1

1960523C1

SHAFT

JOINT ASSEMBLY - universal, male

1шт.

2

1960524C1

SHAFT

JOINT ASSEMBLY - universal, female

1шт.

3

1954928C1

KEY

- square

1шт.

4

139416

SCREW,Hdls Hex Skt, 3/8" - 16 x 5/8"

- hex socket set, 3/8 NC x 5/8 inch

1шт.

5

25932R1

JAM NUT,Jam, 3/8"-16, G5

- hex jam, 3/8 inch NC

1шт.

6

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

1шт.

7

113-1215

NUT - hex lock, 5/16 inch NC

1шт.

12

1976308C1

SUPPORT

BRACKET - drive shaft support

1шт.

13

1954979C1

WASHER

- flat

2шт.

14

758318C1

SNAP RING,#98, Ext

Ring, Snap, #98, Ext

1шт.

15

180383C1

FLANGE

- bearing

1шт.

16

1958383C1

BALL BEARING,1" ID x 2" OD x 1.0629"

BEARING - ball

1шт.

17

1976427C1

FLANGE

- bearing

1шт.

18

1954930C1

WASHER

- bearing flange

1шт.

19

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex lock, 5/16 NC x 3/4 inch

3шт.

20

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.
