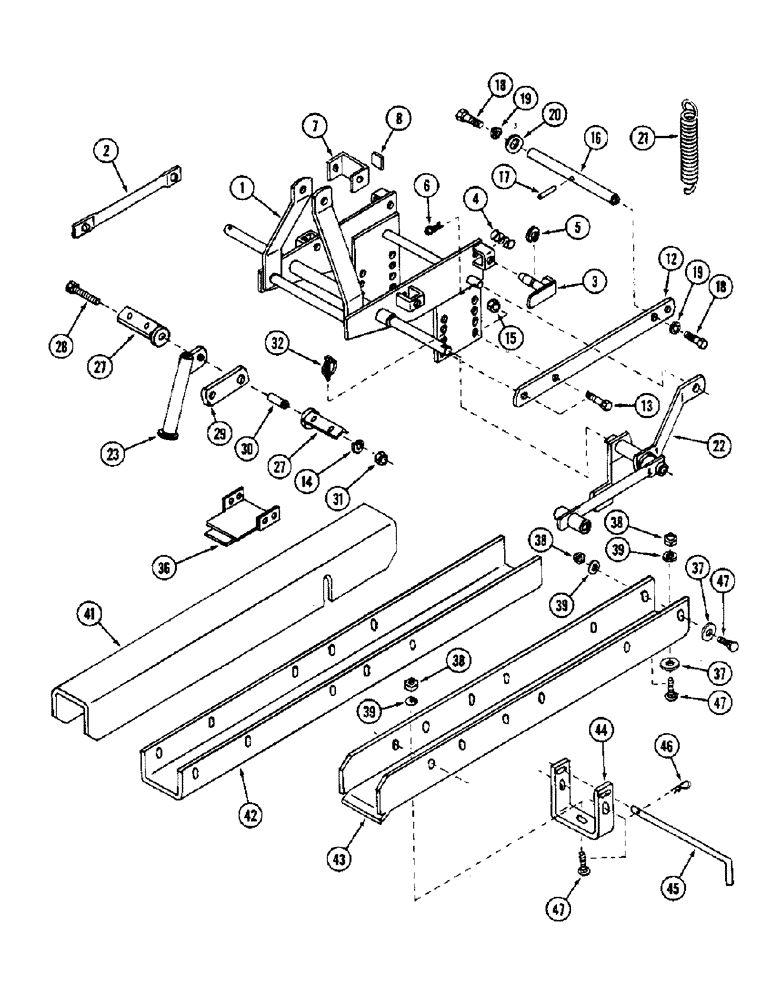

Запчасти Case IH ST54 (46) - MAIN FRAME

1

1976300C1

BRACKET

FRAME - main

1шт.

2

1976303C1

LINK

- top

1шт.

3

1958440C1

PIN

- quick release

4шт.

4

1958442C1

SPRING

- release pin tension

4шт.

5

373523R1

SNAP RING,#62, .480" Dia, E-Type

Ring, Retaining, #62, .480" Dia, E-Type

4шт.

6

480523R1

HAIR PIN COTTER

9/64" dia

2шт.

7

1976305C1

BRACKET

- bumper

1шт.

8

1958352C1

PAD

- bracket

4шт.

12

1958381C1

BAR

BRACKET - drive shaft support

2шт.

13

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

15

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

4шт.

16

1958385C1

ROD

SHAFT - drive

1шт.

17

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

18

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

20

433740

WASHER - shaft backup

1шт.

21

1960268C1

SPRING

- breakover tension

4шт.

22

1976306C1

LINK

- side mounting

2шт.

23

1976302C1

TUBE

- stop

1шт.

27

1976288C1

ANCHOR

- spring

2шт.

28

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex, 1/2 NC x 5 inch

1шт.

29

1976301C1

STRAP

- cylinder mounting

1шт.

30

1976304C1

SPACER

- mounting strap

1шт.

31

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

32

3057346R11

LINCH PIN

PIN - clinch

2шт.

36

102545A1

BRACKET

- guard mounting

1шт.

37

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

38

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

7шт.

39

446363

WASHER,5/16"

- flat, 3/8 x 7/8 x 1/16 inch

7шт.

41

1958375C1

COVER

- PTO

1шт.

42

1958374C1

SHIELD

GUARD - drive shaft rear

1шт.

43

1958372C1

SHIELD

GUARD - drive shaft front

1шт.

44

1958373C1

SUPPORT

BRACKET - guard mounting

1шт.

45

1960264C1

PIN

- locking

1шт.

46

407207R1

CLIP

PIN - cotter, hair, 3/32 inch (Package of 50)

1шт.

47

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

7шт.
