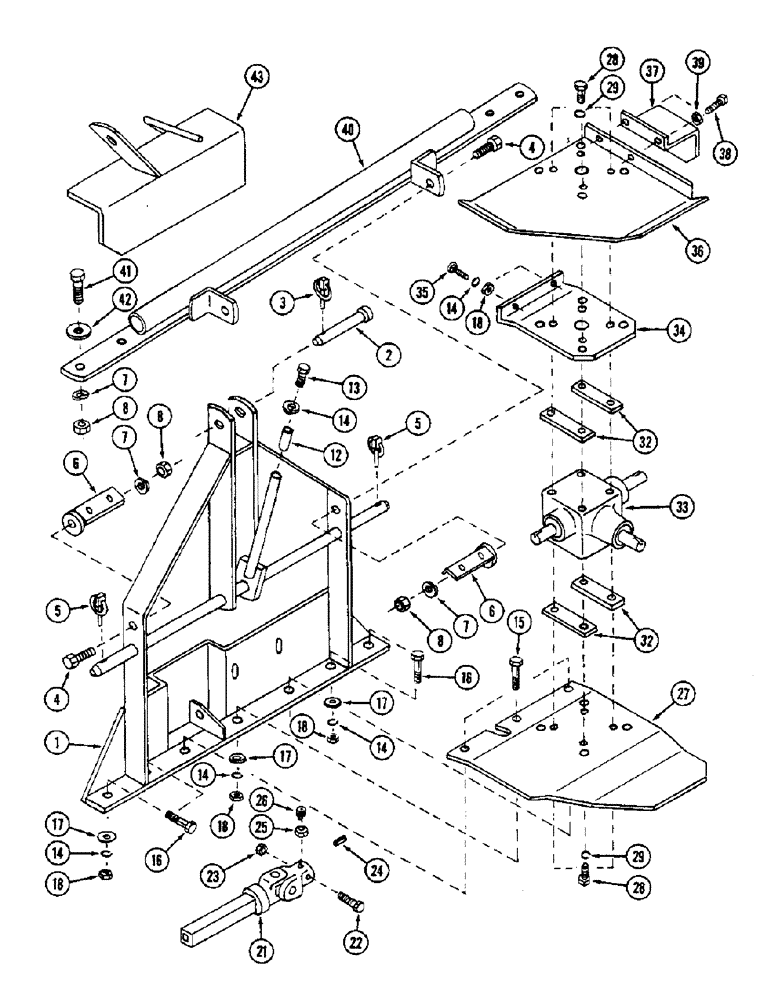

Запчасти Case IH ST54 (42) - HEADER MOUNTING FRAME

1

1976286C1

FRAME

- header mounting

1шт.

2

1958226C1

PIN

- locating

1шт.

3

A30338

PIN

- self locking, 1/4 inch

1шт.

4

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

5

3057346R11

LINCH PIN

PIN - clinch

2шт.

6

1976288C1

ANCHOR

- spring

2шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

12

1976287C1

SPACER

- header

1шт.

13

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

14

492-11038

LOCK WASHER,3/8"

10шт.

15

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

3шт.

16

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

17

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

7шт.

18

425-106

NUT,3/8"-16, Cl 5

9шт.

21

1976291C1

SHAFT

JOINT ASSEMBLY - universal

1шт.

22

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

1шт.

23

231-1445

NUT,5/16"-18, GB

NUT - hex, 5/16 inch NC

1шт.

24

1954928C1

KEY

- square

1шт.

25

25932R1

JAM NUT,Jam, 3/8"-16, G5

- hex jam, 3/8 inch NC

1шт.

26

139416

SCREW,Hdls Hex Skt, 3/8" - 16 x 5/8"

- hex socket set, 3/8 NC x 5/8 inch

1шт.

27

1976289C1

PLATE

- gearbox mounting

1шт.

28

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 x 1 inch

8шт.

29

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

32

1976295C1

SPACER

STRAP - gearbox spacer

4шт.

33

REF

INSTRUCTION

GEARBOX ASSEMBLY - snow thrower (See page 44)

1шт.

34

1976292C1

PLATE

- gearbox mounting

1шт.

35

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

36

1976293C1

PLATE

- gearbox cover

1шт.

37

1976294C1

BRACKET

- gearbox cover

1шт.

38

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex lock, 5/16 NC x 3/4 inch

2шт.

39

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

40

1976285C1

SUPPORT

- mounting

1шт.

41

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

42

25710R1

WASHER

- flat, hardened, 17/32 x 1-1/16 x 9/64 inch

4шт.

43

1976299C1

COVER

- PTO

1шт.
