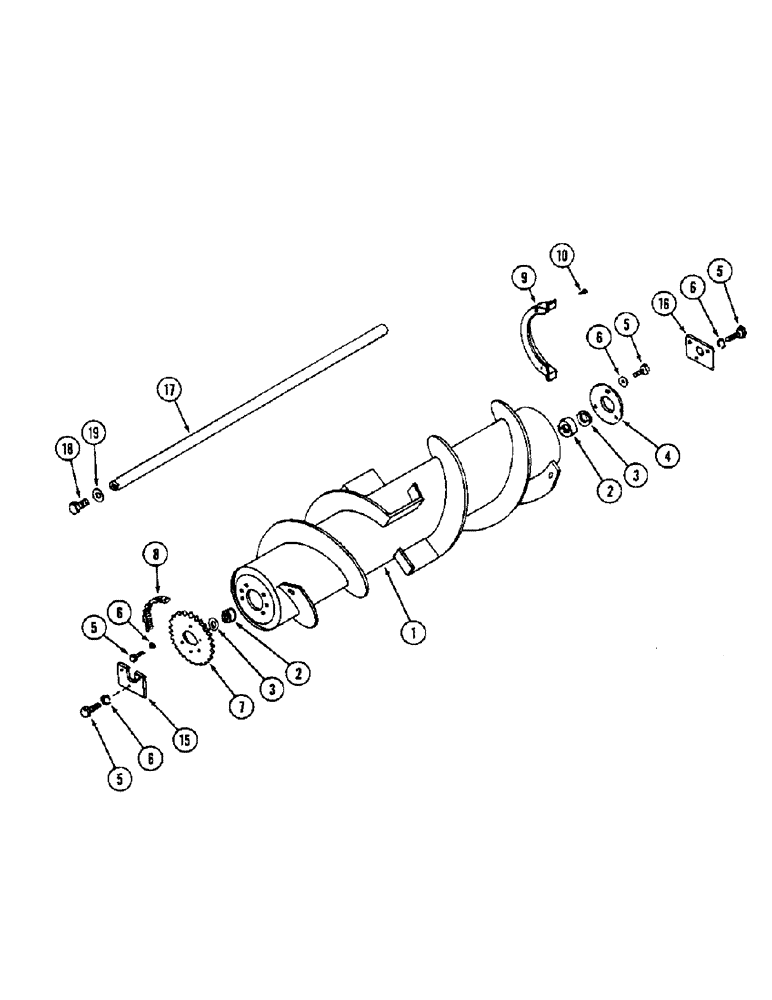

Запчасти Case IH ST54 (40) - AUGER

1

1958399C1

AUGER

- snow thrower

1шт.

2

1958383C1

BALL BEARING,1" ID x 2" OD x 1.0629"

BEARING - ball

2шт.

3

1954930C1

WASHER

- auger shaft

2шт.

4

462360R1

FLANGED BEARING

- auger

1шт.

5

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

15шт.

6

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

15шт.

7

1958341C1

SPROCKET ASSY.

SPROCKET - auger

1шт.

8

NSS

NOT SOLD SEPARAT

CHAIN - auger drive

1шт.

Use 69 links of 1309D and one connecting link 1310D.

1шт.

9

1958343C1

GUARD

- chain

1шт.

10

19-205

SCREW,Hex, 1/4" x 1"

BOLT - hex, self-tapping, 1/4 NC x 1 inch

2шт.

15

1958342C1

PLATE

- auger mounting

1шт.

16

1976234C1

DISC

PLATE - auger shaft

1шт.

17

1958340C1

SHAFT

- auger

1шт.

18

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.
