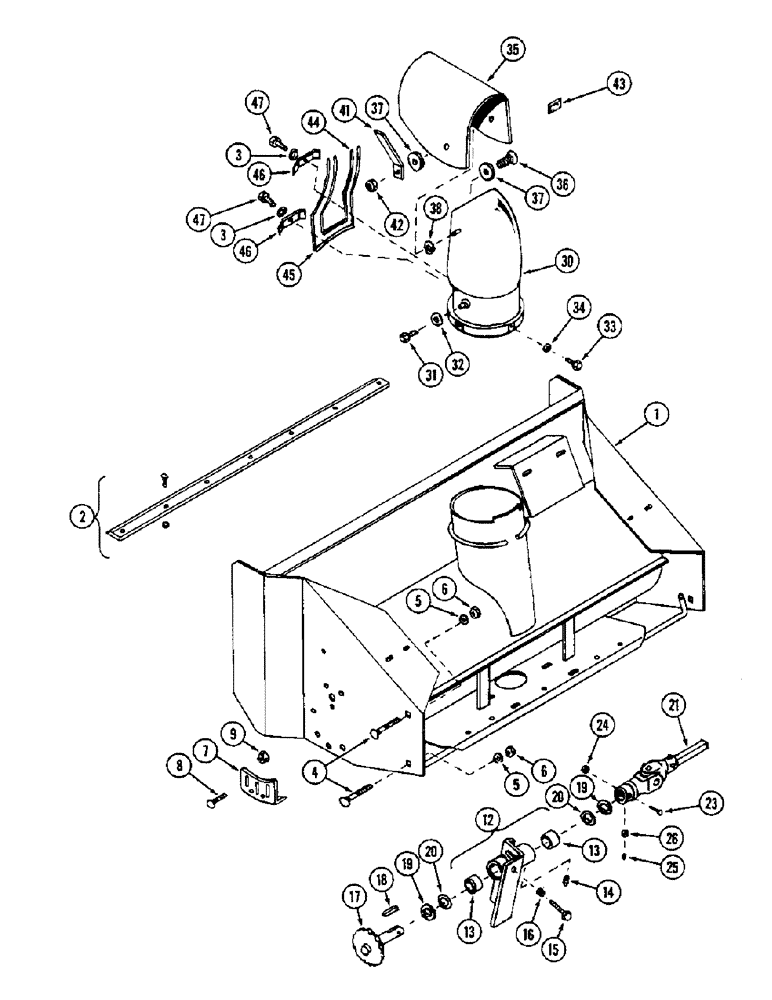

Запчасти Case IH ST54 (38) - AUGER HOUSING AND DISCHARGE CHUTE

1

1976230C1

HOUSING

- auger

1шт.

2

1960260C1

BLADE

REPAIR - scraper blade

1шт.

3

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

4

1958395C1

BOLT,1/2" - 13 x 3 1/2", Full Thd

- bracket retaining

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

7

1976231C1

SHOE

- skid

2шт.

8

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

6шт.

9

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

6шт.

12

1976296C1

HOUSING

ASSEMBLY - jackshaft

1шт.

13

54531R91

BUSHING - roller

2шт.

14

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING - 1/8 inch PTF, short, 45 degree, lube

1шт.

15

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

1шт.

16

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

17

102541A1

SPROCKET ASSY.

SPROCKET - jackshaft

1шт.

18

1954929C1

BUCKET TOOTH KEY

KEY - sprocket retaining

1шт.

19

1954979C1

WASHER

- flat

2шт.

20

1954930C1

WASHER

- jackshaft backup

2шт.

21

1976297C1

SHAFT

JOINT ASSEMBLY - universal

1шт.

22

424536

BOLT - hex, 5/16 NC x 2-1/4 inch, grade 2

1шт.

23

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

1шт.

24

231-1445

NUT,5/16"-18, GB

NUT - hex, 5/16 inch NC

1шт.

25

139416

SCREW,Hdls Hex Skt, 3/8" - 16 x 5/8"

- hex socket set, 3/8 NC x 5/8 inch

1шт.

26

25932R1

JAM NUT,Jam, 3/8"-16, G5

- hex jam, 3/8 inch NC

1шт.

30

1958347C1

SPOUT, DISCHARGE

CHUTE - discharge

1шт.

31

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

32

495-81286

WASHER,.281" x 1 1/8" x .060"

- flat, 9/32 x 1-1/8 x 1/16 inch

1шт.

33

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

4шт.

34

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

35

1958351C1

DEFLECTOR

- chute

1шт.

36

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

2шт.

37

21752R1

WASHER

- flat, 13/32 x 1-1/2 x 3/64 inch

4шт.

38

178566

WASHER - lock, internal/external, 3/8 inch

2шт.

41

1958353C1

STRAP

- locking

2шт.

42

231-1445

NUT,5/16"-18, GB

NUT - hex, 5/16 inch NC

2шт.

43

1958352C1

PAD

- deflector

1шт.

44

1958348C1

GUARD

WIRE - guard, small

1шт.

45

1958349C1

GUARD

WIRE - guard, large

1шт.

46

1958350C1

BRACKET

- guard

2шт.

47

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.
