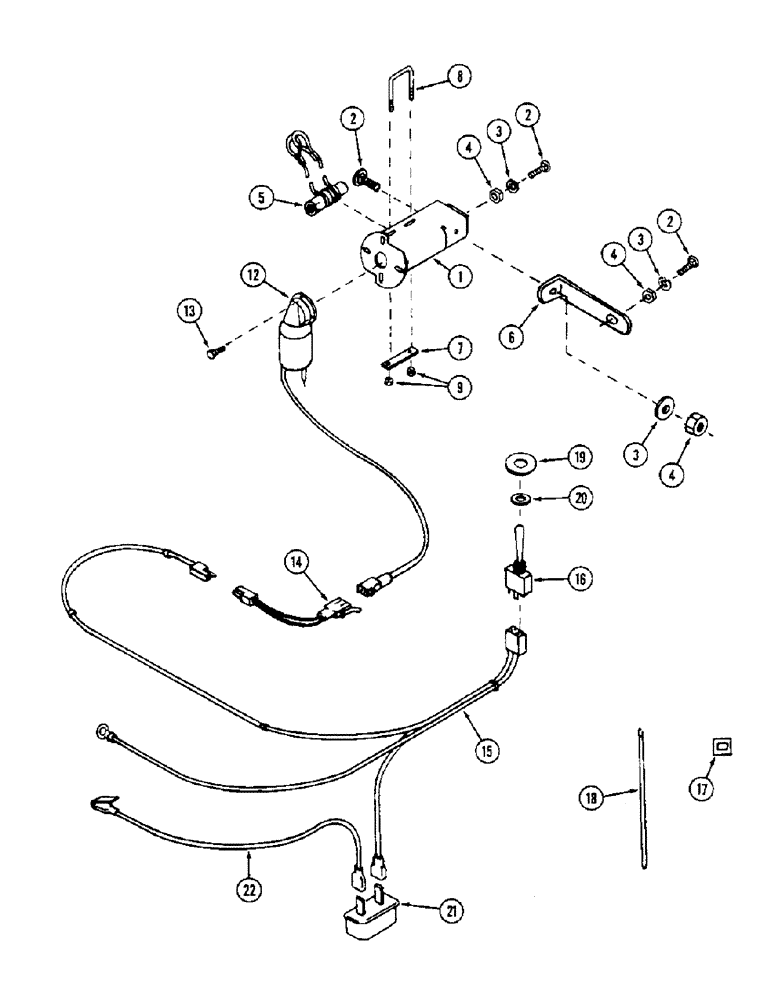

Запчасти Case IH ST54 (36) - ELECTRIC CHUTE DRIVE

1

1960244C1

DRIVE PLATE

BRACKET - chute drive

1шт.

2

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

3шт.

3

21752R1

WASHER

- flat, 13/32 x 1-1/2 x 3/64 inch

3шт.

4

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex lock, 3/8 inch NC

3шт.

5

1960245C1

CABLE ASSY.

CABLE - drive

1шт.

6

1960254C1

BRACKET

- level wind

1шт.

7

1960247C1

STRAP

- friction

1шт.

8

1960246C1

U-BOLT

1шт.

9

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

12

1960248C1

MOTOR

ASSEMBLY - chute drive

1шт.

13

280-1478

SELF-TAP SCREW,HWH, 1/4-14 x 1/2"

SCREW - self-tapping, 1/4 NC x 1/2 inch

3шт.

14

1960256C1

PLUG

ADAPTER - wire harness

1шт.

15

1960250C1

ELECTRICAL WIRE

HARNESS - electrical, chute drive

1шт.

16

1960249C1

SWITCH

- chute drive

1шт.

17

1960251C1

CLIP

- retaining

2шт.

18

289862C1

CABLE TIE,3/16" x 7"

STRAP - retaining

2шт.

19

102575A1

WASHER

- wheel stop

1шт.

20

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 5/64 inch

1шт.

21

1976315C1

BREAKER

- circuit

1шт.

22

1976232C1

ELECTRICAL WIRE

WIRE - adapter

1шт.
